12. Installation
12.1 Unit Installation
12.1.1 Transportation
Be sure that the package will be transported safely, unpack until reach installation site.
The leaning angle during the transportation should be smaller than 15 degree to prevent the module
from rolling over.
When transporting the module with rolling bars, it is recommended to use 6 bars under the module (4
bars with 30kW module), each one should be a bit longer than the width of basement to keep the module’s in
balance.

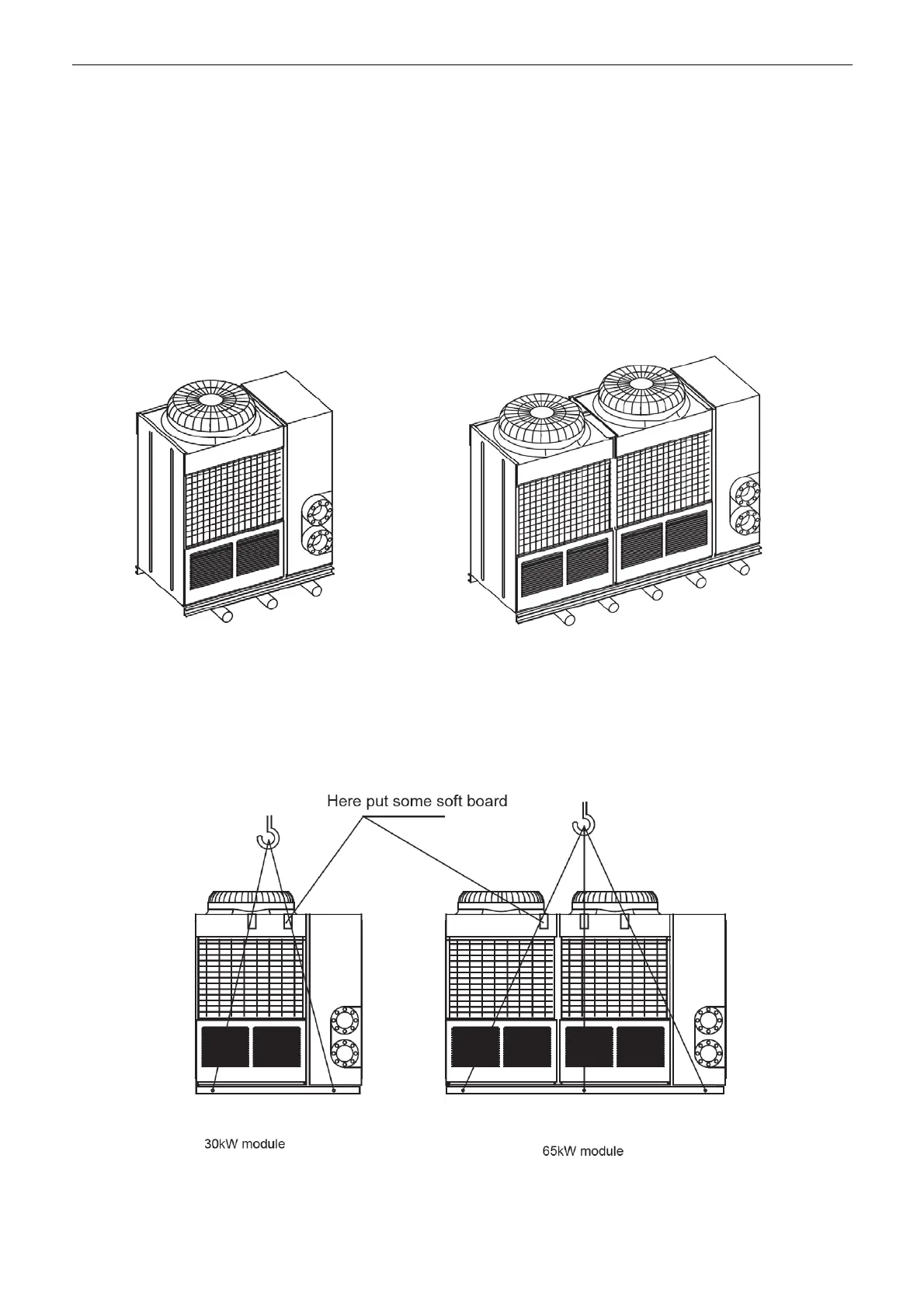

30kW module
65kW module
Sling the module with steel wire, be sure that the wire could bear the weight 3 times heavier than that of
the module, and check whether it hooks to module tightly. The hanging angle should be bigger than 60
degrees.
Notice: it is absolutely forbidden to stand under the module while hanging, please use soft board to protect
the module surface which contacts the steel wire from scratch and distortion.
