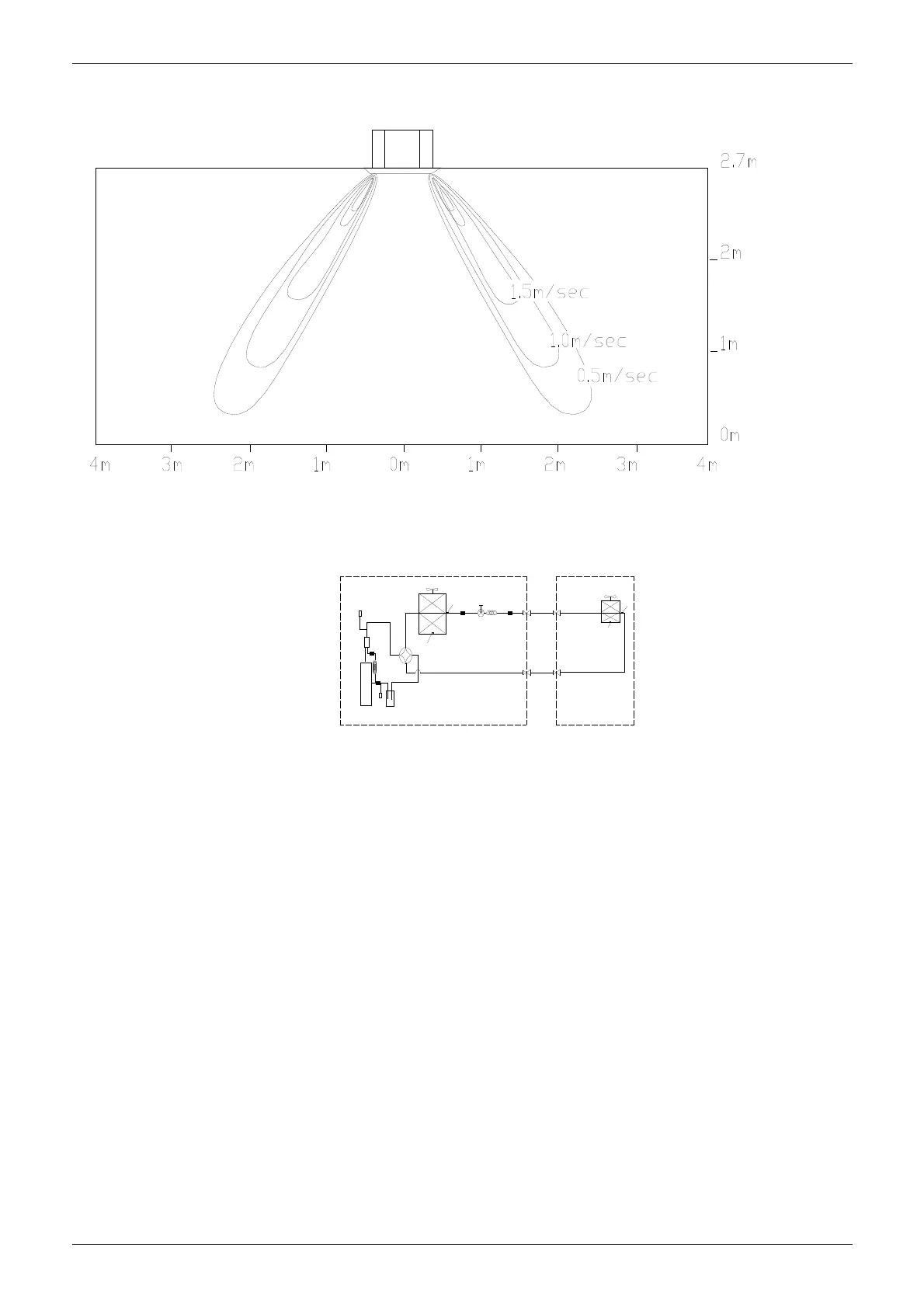

Air Velocity and Temperature Distributions(Reference Data) MLCAC-UTSM-2010-10
24 Four-way Cassette Type
5. Air Velocity and Temperature Distributions(Reference Data)
Airflow velocity
Elect ronic
expansion valve
Oil separ ator
Compressor
Low pressure
switch
Oil return
Capillary
High pressure swit ch
Low pressure liquid
accumulator
Evaporator
Capillary
Outdoor unit
Indoor unit
4-way valve
Condenser
T5
Discharge temp. sensor
Fil ter
Filter
Condenser temp. sensor
T3
T4
Ambient temp. sensor
Fil ter
Fil ter
T2
Evaporat or temp. sensor
Room temp. sensor
T1
