Seal( )
(Used on
drain joint)
Drain Joint( )
[ ] Model dependent
1 pc 1 pc 1 pc
1~2 pc
(depending on
models)
2 pcs(For some units,
used to fasten the front
panel) 2 pcs or 4 pcs(used
to install the drain pan)
Drain pan( )
or
Rubber Plug Screw
Accessories
8 pcs
(depend on
model you
purchased)
Wooden screw
(optional)
( )
1 pc 4 pcs
PVC sheath and
cable ties( )

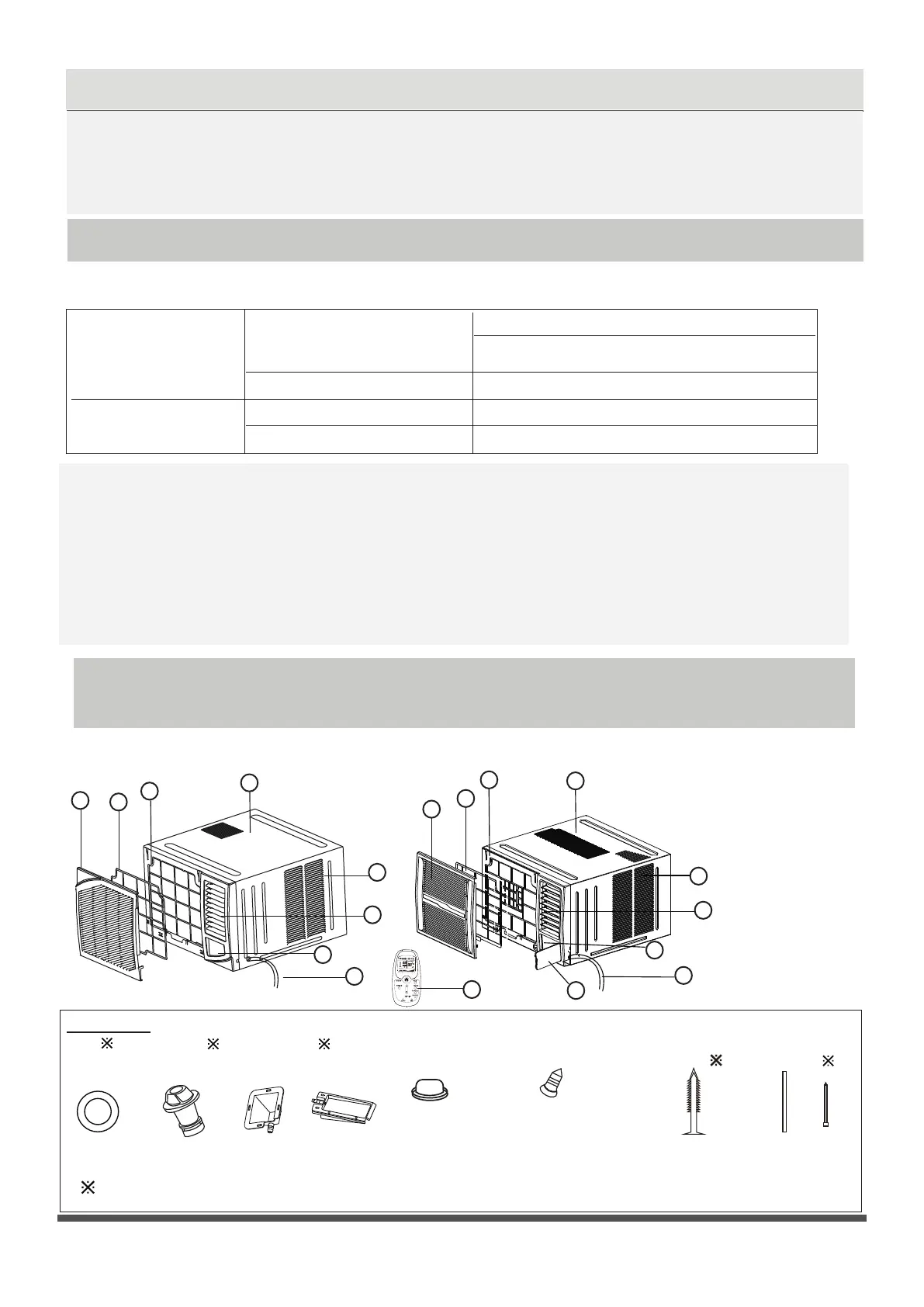

UNIT PARTS IDENTIFICATION
NOTE: Different models have different front panels and cabinets. Illustrations in this manual are for explanatory purposes. The actual
shape of your indoor unit may be slightly different. The actual shape shall prevail. See the following figures for references:
1
1. Front panel
2. Air filter
3. Frame
4. Cabinet
5. Air inlet grille
(outdoor side)
6. Air outlet grille
7. Electronic control
keypad
8. Power supply cord
9. Control panel cover
(some units)
10. Remote controller
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
5
Operating temperature
When your air conditioner is used outside of the following temperature ranges, certain safety protection features may
activate and cause the unit to disable.
18°C-43°C (64°F-109°F)
17°C-32°C (62°F-90°F)
-5°C-24°C (23°F-76°F)
0°C-27°C (32°F-80°F)
18°C-52°C (64°F-126°F)
(For special tropical models)
Cooling operation
Heating operation
Outdoor Temperature
Outdoor Temperature
Indoor Temperature
Indoor Temperature
To further optimize the performance of your unit, do the following:
•
•
•
•
•
•
Keep doors and windows closed.
The capacity of the room air conditioner must fit the room size for efficient and satisfactory operation.
Do not block air inlets or outlets.
Regularly inspect and clean air filters.
If the power supplied to the unit is not plus/minus 10% of the specified rating, the unit may not function and the fuse
may blow.
Noise from the air conditioner will be louder at night than in the daytime. This is because the noise in the surroundings
is comparatively low at night. If your feel that the noise is too loud, switch the thermostat to lower numbers.
Note about Fluorinated Gasses
1. Fluorinated greenhouse gases are contained in hermetically sealed equipment. For specific information on the type, the
amount and the CO2 equivalent in tonnes of the fluorinated greenhouse gas(on some models), please refer to the
relevant label on the unit itself.
2. Installation, service, maintenance and repair of this unit must be performed by a certified technician.
3. Product uninstallation and recycling must be performed by a certified technician.
M
O
D
E
S
L
E
E
P
L
E
D
C
L
O
C
K
C
A
N
C
E
L
T
I
M
E
R
F
A
N
R
E
S
E
T
L
O
C
K
C
L
O
C
K
E
O
N
O
F
F
S
E
T
T
E
M
P
.
F
A
N
S
P
E
E
D
A
U
T
O
F
S
W
IN
G
10
