Installation
11
AWG 102

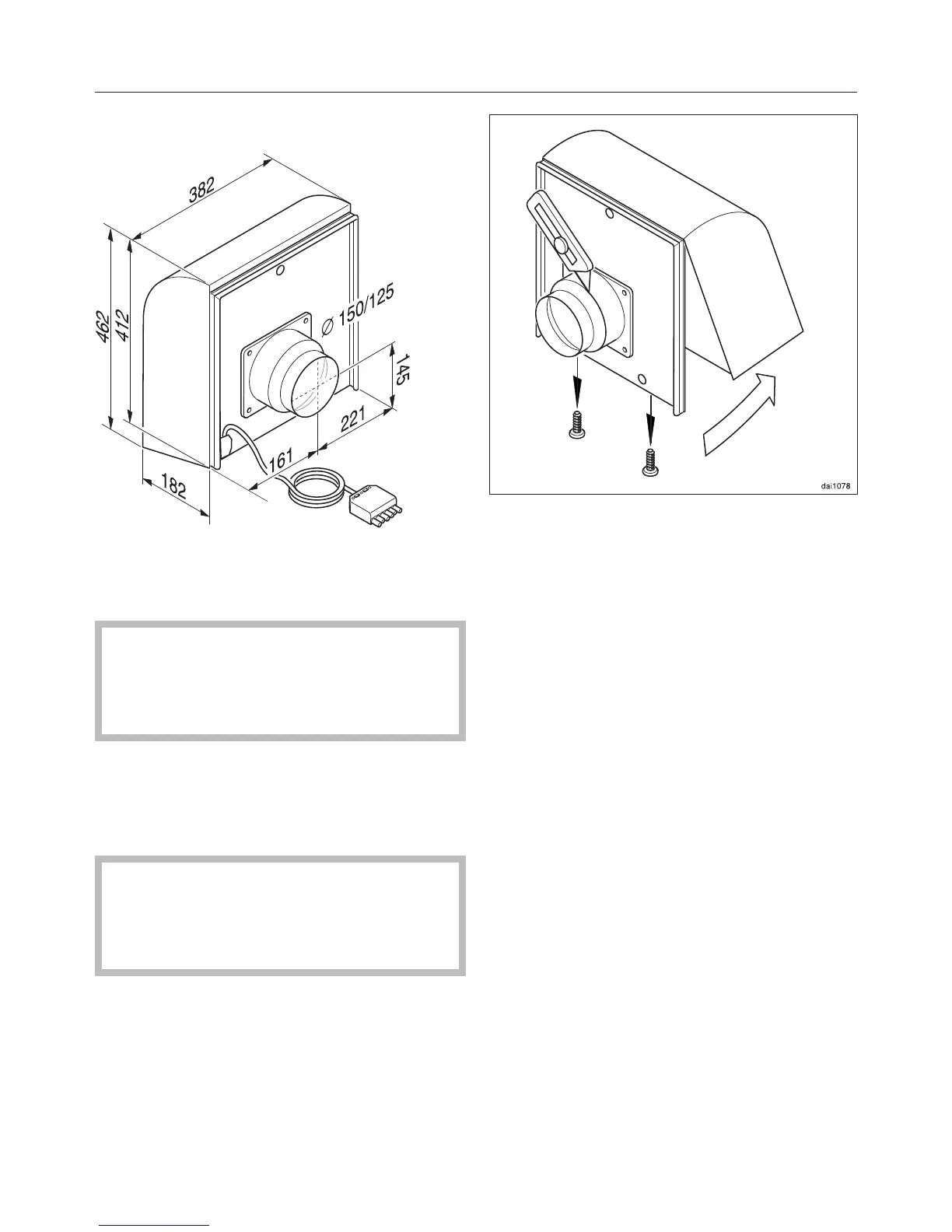

The AWG 102 external motor is
designed to be installed on an outside
wall.
The external motor must be installed
vertically on the outside wall. The
extraction outlet must face
downwards.
The external motor is connected to the
rangehood by means of a control cable
and is operated by the controls on the
rangehood.
Please refer to the operating and
installation instructions for the
rangehood before installing the
external motor and ducting.
Unscrew the two fixing screws on the
underside of the external motor and
take the motor unit off its fixing
bracket.
The ducting collar on the motor unit has
a diameter of 125 mm when the
appliance is supplied.
If exhaust ducting with a diameter of
150mm is required, the front ring
of the collar must be cut at the join
with a sharp knife.
