Installation
17

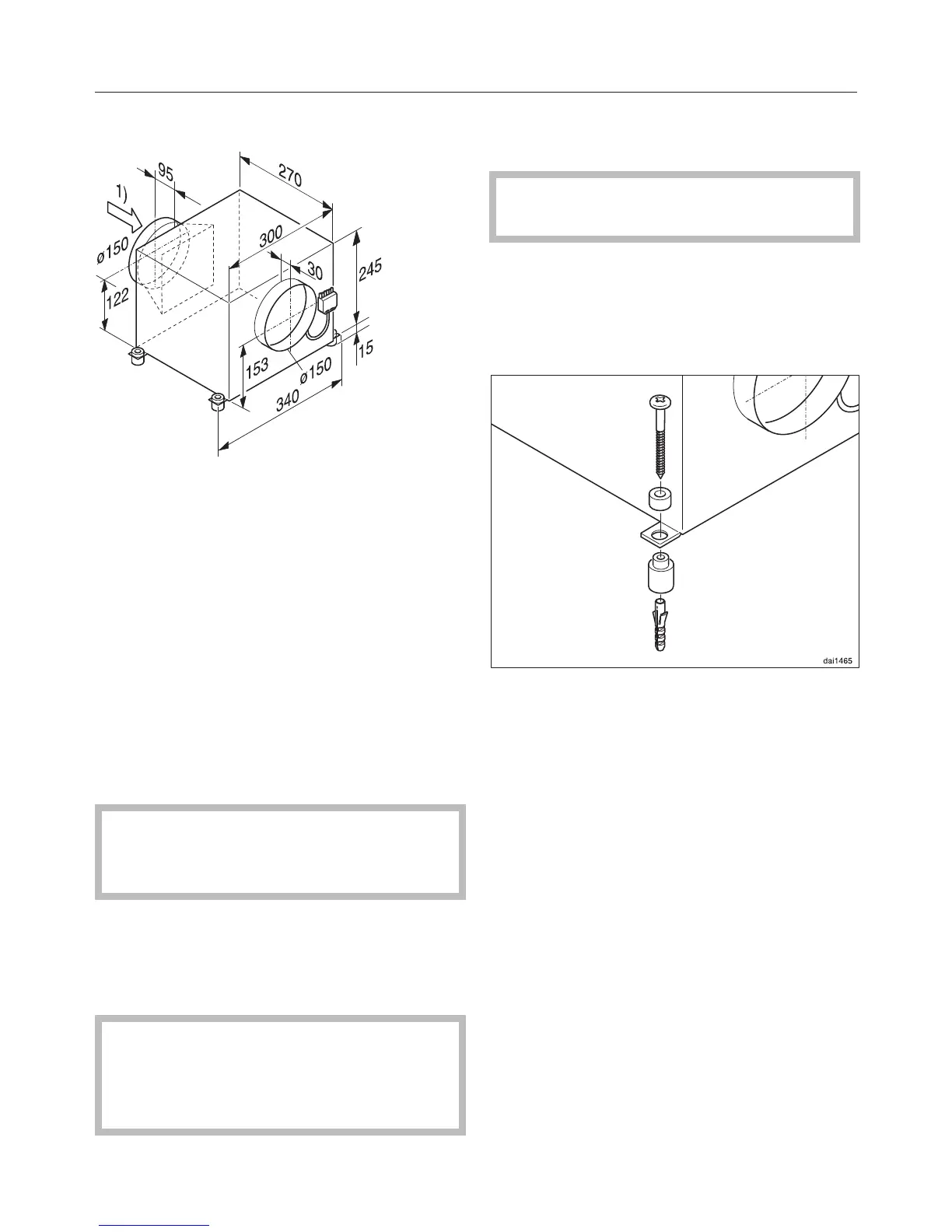

ABLG 202
1) Suction side
The ABLG 202 external motor is
designed for installation inside the
house. Possible locations:
– In the attic or ceiling space
– In an adjoining room, e.g. a pantry or
garage
– In the kitchen, if sufficient insulation
is used
It can be installed in a vertical or
horizontal position.
If installing vertically please refer to
the installation instructions on the
next page.
The external motor is connected to the
rangehood by means of a control cable
and is operated by the controls on the
rangehood.
Please refer to the operating and
installation instructions for the
rangehood before installing the
external motor and ducting.
Position the external motor in a
suitable location.
Pay particular attention to the
direction of the ducting.
Mark the positions for the four motor
base plate holes on the installation
surface.
Place the motor to one side.
Drill four 8mm holes in the
positions marked to a depth of
40mm for securing the external
motor.
Press S8 anchors into the drill holes
so that they are flush.
Connect the installation mountings
through the fixing holes in the motor
unit base plate.
Secure the motor with the screws
supplied.
