Drill four C 6 mm holes at the
positions you have just marked to a
depth of 30 mm.
^
Press S6 plugs into the drill holes so
that they are flush.
^
Push the motor unit housing into the
wall and secure it in position.
^
Position the telescopic inner section
D so that it protrudes approx. 50 mm
out from the brickwork.
^
Inject insulation foam into the space
between the brickwork and the
housing.
^ Secure stainless steel cover A to the
housing using a crosstip screwdriver.
^ The ducting stub on the motor unit
has a diameter of 150 mm when the
appliance is supplied.
Please fit the adapter supplied if a
diameter of 125 mm is required.
^ Push the flexible ducting onto the
stub on the motor unit and secure it
with a hose clip.
^

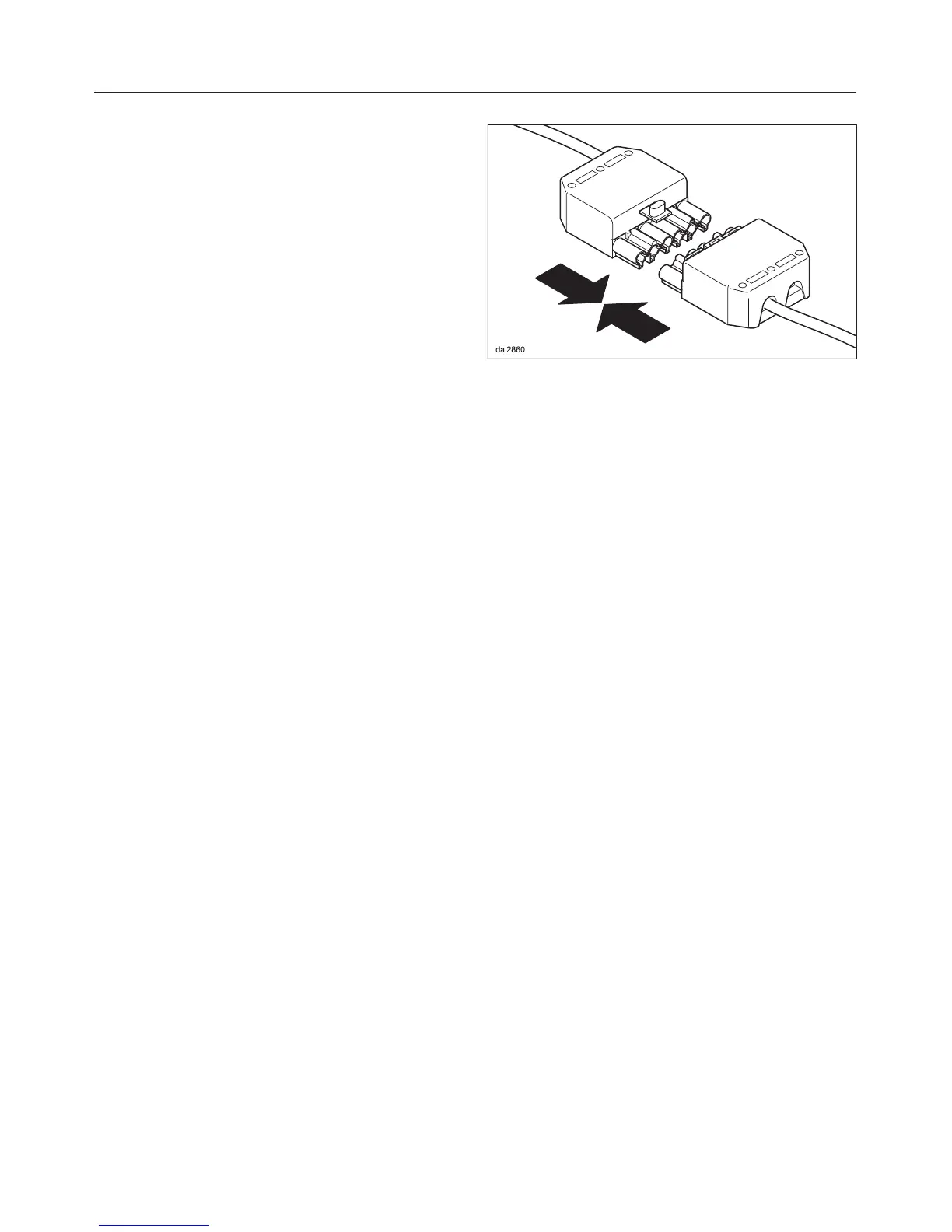

Connect the control cable plug
connectors.
^
Use the extension cable supplied to
extend the length of the connection
cable, if necessary.
^ If this is still not long enough, please
refer to the notes in "Electrical
connection".
Installation
12
