a 3 protective sheets
for use when fitting the tower.
b Upper retaining plate for securing
the extension piece.
c Middle retaining plate for securing
the extension piece.
d 2 hose clips for securing the exhaust
ducting.
e 1 reducing collar for exhaust ducting
C 125 mm (not on EXT models).
f 1 non-return flap for fitting into the
exhaust socket on the motor unit (not
on EXT models).

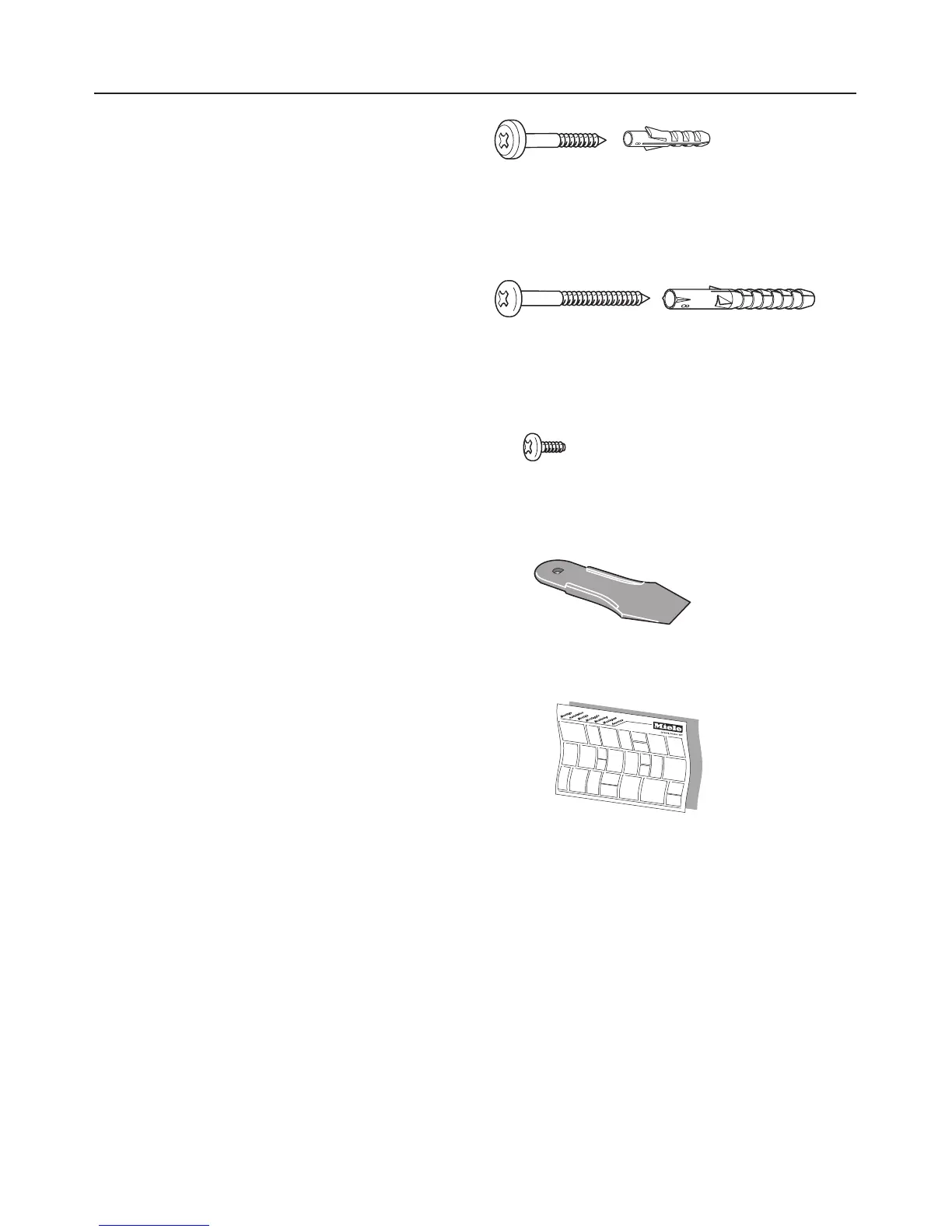

5 large headed screws 5 x 40 mm and
5 x S 8 plugs for securing the retaining
plate and the appliance unit.
2 screws 5 x 60 mm and
2 x S 8 R 60 plugs for securing the ap
-
pliance unit.
6 screws 3.5 x 9.5 mm for securing the
canopy and the filter housing
1 lever for changing the halogen lamp
and dismantling the tower
Installation instructions
Installation
23
