Miele DA 3560 - Exhaust Connection and Non-Return Flap

^

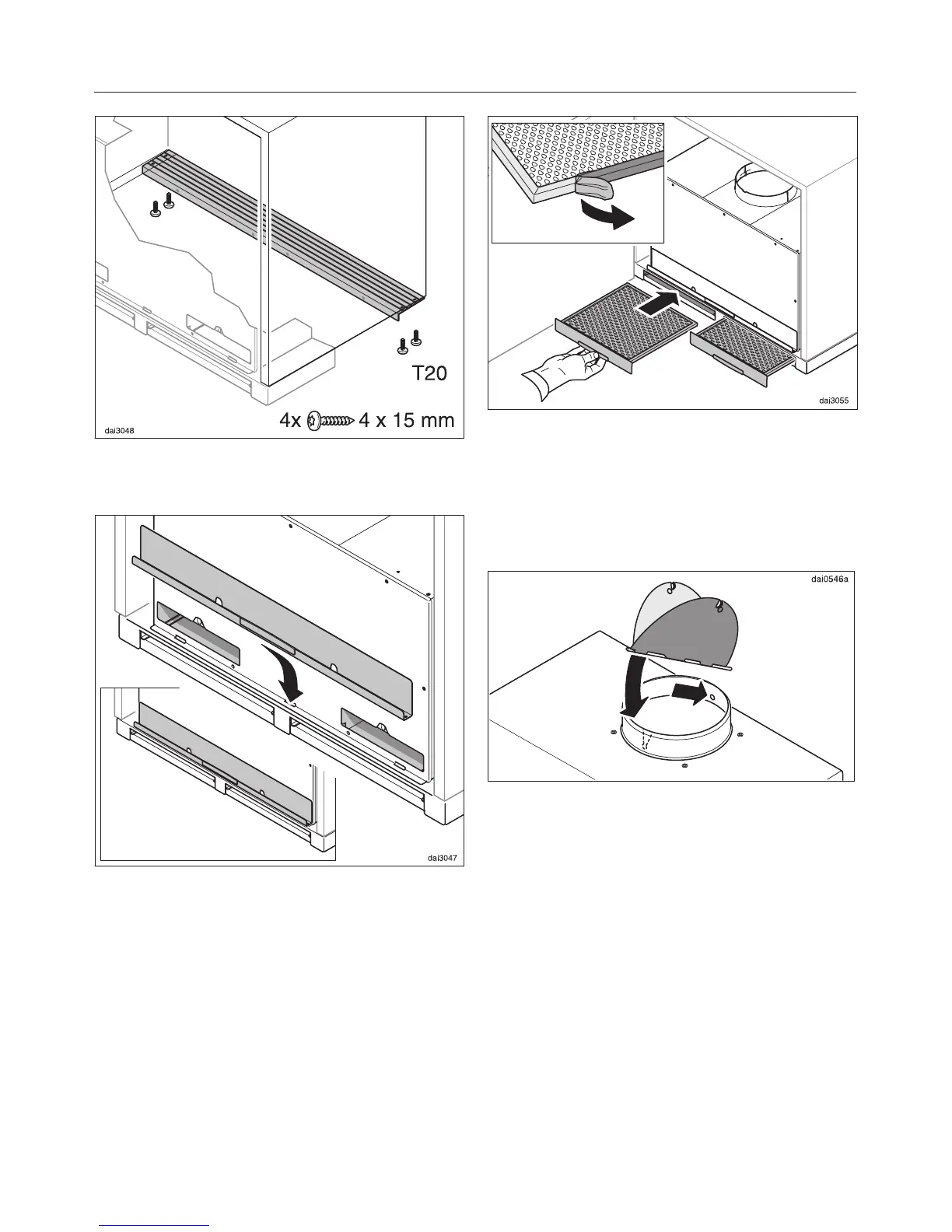

Secure the spacer strip to the bottom
of the wall unit as well.
^
Insert the cover for the charcoal filter
slots as shown and close it. It is held
in place by magnets.
^
Take the grease filters out and
remove any protective foil. Replace
the grease filters.
Exhaust connection
^
Insert the non-return flap, if required.
Make sure that it opens easily and
closes again by itself.
Installation
35
