3. Fitting the facia panel
The facia panel is delivered separately
in the colour ordered with the necess-
ary accessories.
It has to be fitted to the dishwasher
when it is being installed.

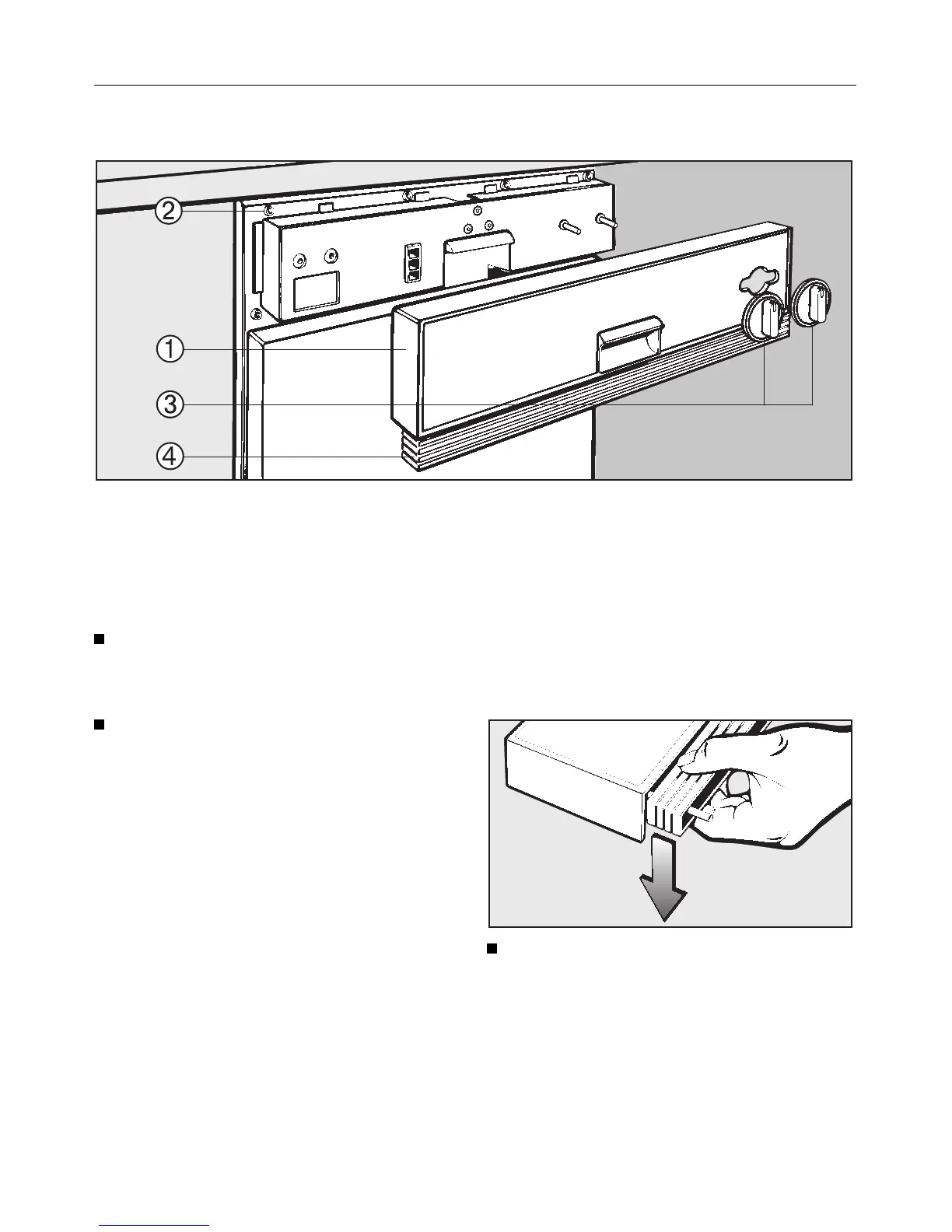

Place the facia panel b in position
and screw into place from the inside
using the six screws
c
Attach the switch knob d .
Only applicable when using the GDU
decor set (to convert an "i" version to a
built-under "U" version)
If the GDU decor set is being used, the
adapter strips
e must first of all be
removed, and stored for possible use
in the future. See also the separate in-
structions for fitting the GDU decor set.
Press out the adapter strips from the
fitting slits in the facia panel.
Installing integrated “i” Dishwashers
55
