Installation

*INSTALLATION*

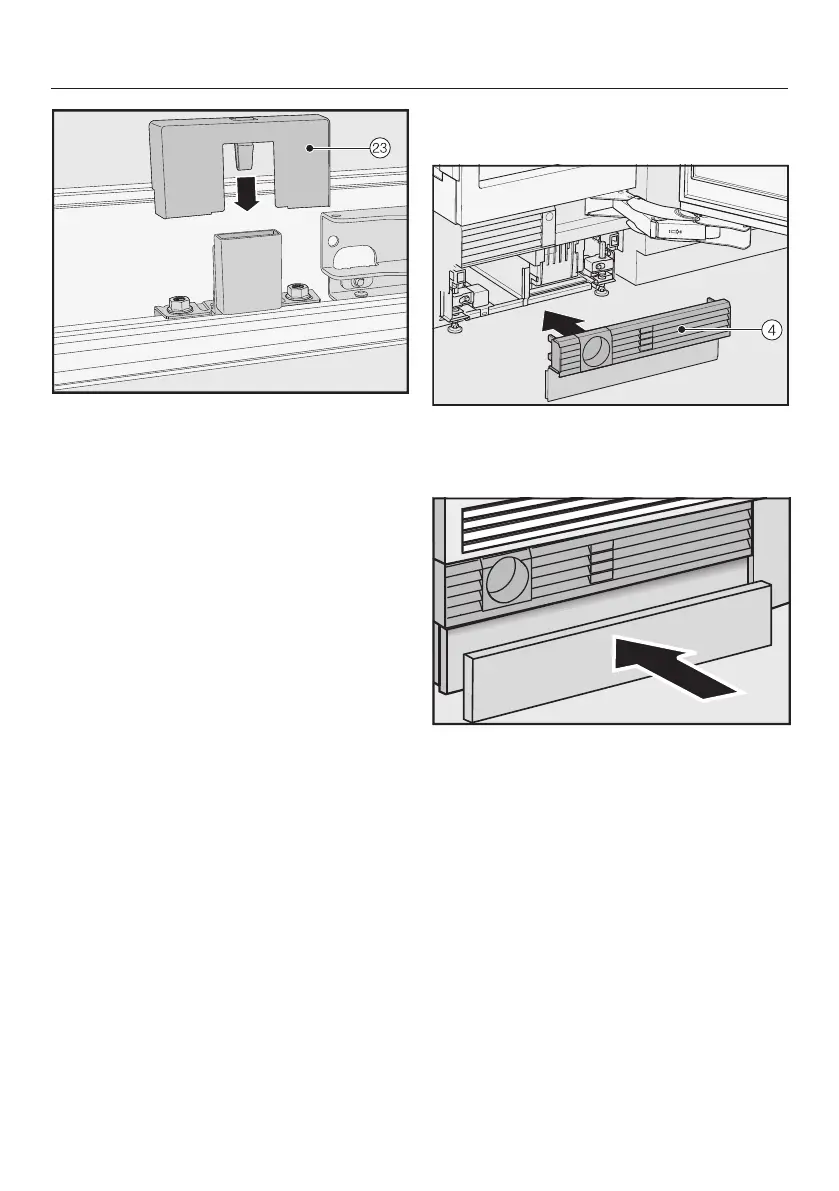

 Install the cover  onto the light con-

tact switch.

Securing the toe-kick ventilation

grille and toe-kick cover

 Click the toe-kick ventilation grille 

onto the bottom of the appliance toe-

kick.

 If necessary, cut the toe-kick cover to

the required length and height (cut

along the lower edge of the toe-kick

facing where it touches the floor).

 Secure the toe-kick cover to the bot-

tom of the toe-kick ventilation grille.

Default Chapter2
- Table of Contents2
Important Safety Instructions6
Caring for the Environment16
Installation17
- Installation Location17
  - Climate Class17
- Installation Notes18
- Specifications for the Plumbed Water Connection21
- Installation Dimensions22
  - Position of the Electrical and Plumbed Water Connections22
  - Dimensions When the Appliance Door Is Open (Opening Angle 90°/115°)25
- Dimensions of Cabinet Fronts26
- Building in the Appliance27
- Water Connection51
  - Information on the Fresh Water Connection51
  - Installing the Water Hose to the Appliance52
- Electrical Connection53
Saving Energy55
Guide to the Appliance57
- Main Screen59
- Settings Mode60
Accessories62
- Accessories Supplied62
- Optional Accessories62
Before First Use64
- Choosing the Right Door Assistant (Push2Open/Pull2Open)64
- Inserting the Active Airclean Filters65
- Operating the Refrigeration Appliance65
  - Starting up for the First Time66
Switching on and off68
- Switching off for Longer Periods of Time69
Selecting Additional Settings70
- Switching Keypad Lock / on or off70
- Switching Eco Mode  on or off71
- Performing a Self Test72
- Switching on the Door Assistant73
- Switching off the Door Assistant75
- Setting up Miele@Home75
- Switching off Demo Mode79
- Resetting the Settings to Their Default Settings80
- Switching Vacation Mode  on or off83
- Switching Sabbath Mode  on or off84
- Switching On, Switching Off, or Resetting the Water Filter Display85
- Switching On, Switching Off, or Resetting the Display Active Airclean Filter87
The Correct Temperature89
- In the Fridge Zone and in the Masterfresh Zone89
  - Automatic Cold Air Circulation (Dynacool)89
- In the Freezer Zone90
- Setting the Temperature90
  - Temperature Range90
Using Automatic Supercool and Superfreeze91
Temperature and Door Alarm94
Adjusting the Interior Fittings96
- Removing or Moving the Door Shelves96
- Removing or Moving the Shelves96
- Removing the Hanging Drawer97
- Removing Compartments from the Fridge Zone98
- Removing the Freezer Baskets98
  - Removing the Dividing Panel (Depending on the Model)99
- Removing the Ice Cube Tray99
Storing Food in the Refrigerator Section100
- Different Storage Zones100
- Food Which Is Not Suitable for Storage in the Fridge Zone101
- Notes on Buying Food102
- Storing Food Correctly102
Storing Food in the Masterfresh Zone103
- Mastertfresh Zone103
  - Humidity-Controlled Compartment with Moisture Adjustment103
  - Dry Compartment with Low Temperature105
Freezing and Storing Food107
- Maximum Freezing Capacity107
- What Happens When You Freeze Fresh Food107
- Storing Frozen Food108
- Home Freezing108
- Before Placing Food in the Freezer109
- Placing Food in the Freezer109
Making Ice Cubes111
Automatic Defrosting113
Cleaning and Care114
- Cleaning Agents114
- Before Cleaning the Appliance115
- Interior and Accessories115
- Cleaning the Door Seal116
- Cleaning the Ventilation Gaps116
- Cleaning the Water Filter (Intensiveclear 2.0 Mesh Filter) (See "Optional Acces- Sories")116
- Replacing the Active Airclean Filters118
- After Cleaning118
Water Filter119
- Changing the Water Filter120
- Using an External Water Filter121
- Lead-Free Certificate124
Frequently Asked Questions125
Causes of Noises135
Customer Service136
- Contact in the Event of a Fault136
- Appliance Warranty and Product Registration136
Declaration of Conformity137
Copyrights and Licenses138

Noise level	42 dB
Energy efficiency scale	A to G
Annual energy consumption	295 kWh
