Before building the appliance in decide
on the door hinging. If left hand door
hinging is required follow these
instructions.
^

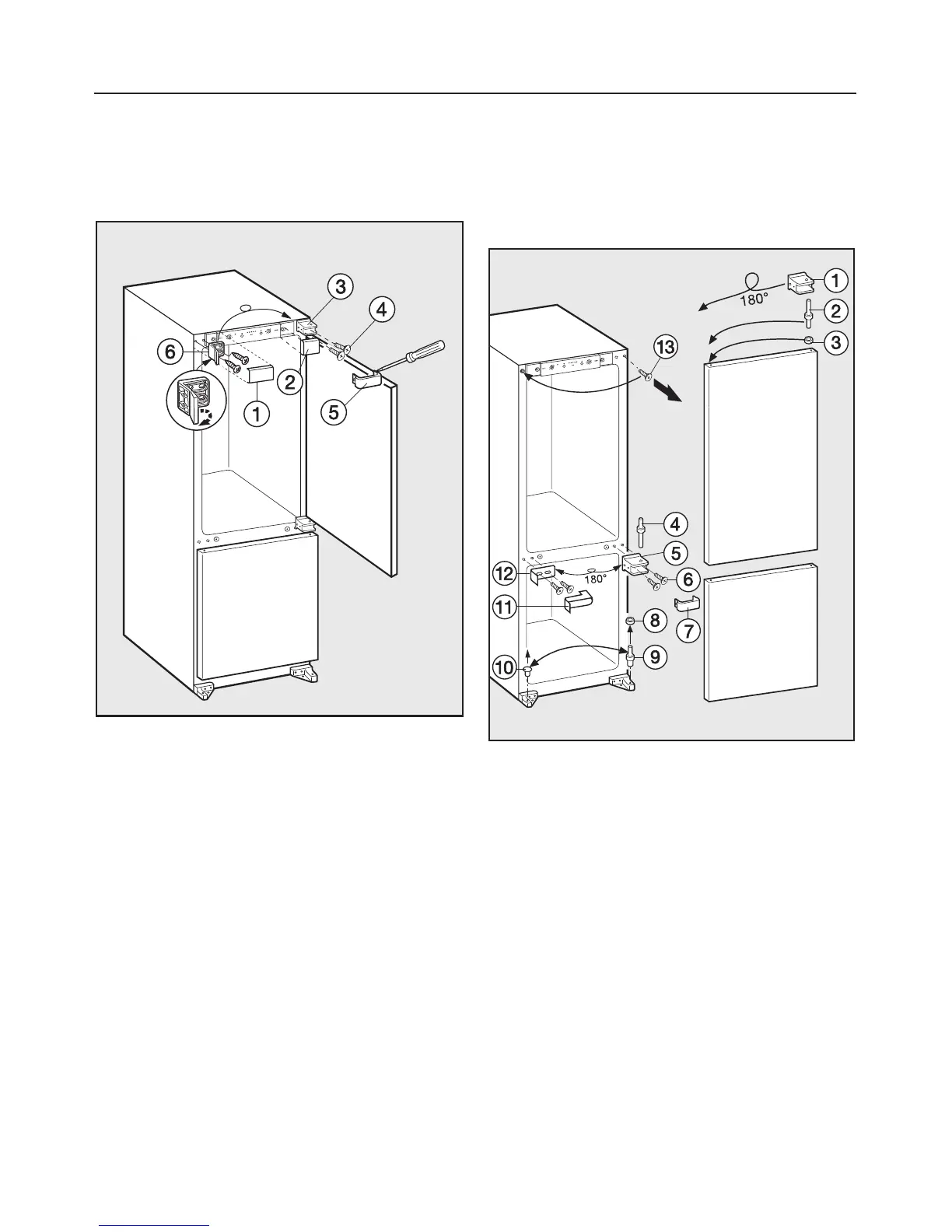

Pull covers a and b off.
^
Open out fixing bracket f and
unscrew it. It is used later on the
other side for securing the appliance
into the housing niche.
^
Use a pointed instrument to take off
cover e.
^
Half unscrew the outer screw d and
completely unscrew the inner screw
on hinge plate c. This will make the
appliance door easier to take off.
^
Open the upper door of the
appliance a little, and push it
upwards and outwards a little
together with hinge plate c. Then lift
the appliance door upwards and off.
^
Pull hinge plate a and hinge pin b
out of the appliance door, turn hinge
plate a around, and refit everything
on the other side of the appliance
door. Do not forget to use washer c.
^
Use a pointed instrument to take
cover g off.
Changing the door hinging
37
