Building in
^

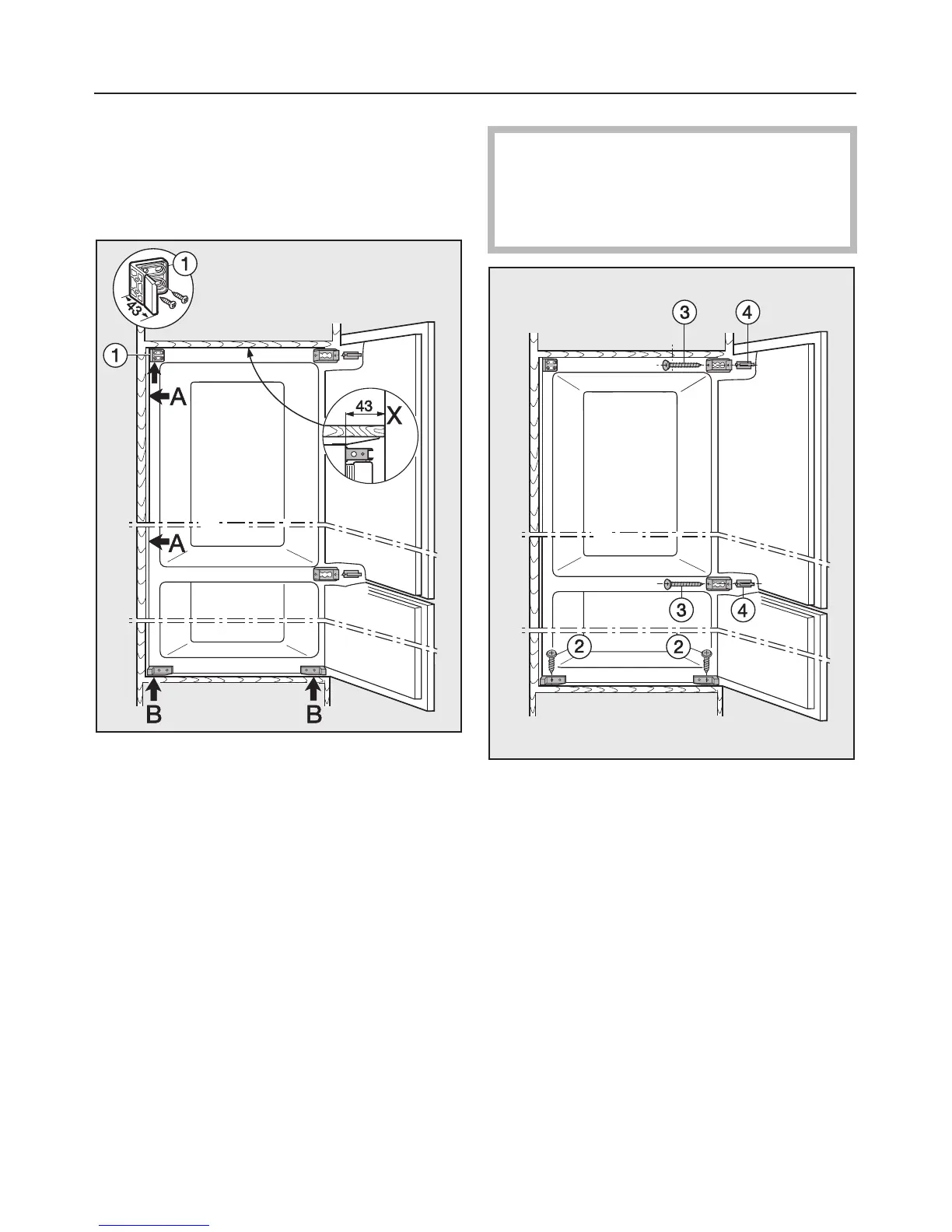

Push the appliance into the niche.
Make sure that the mains cable does
not get trapped.
^
Screw fixing bracket a back on (if
this has not already been done).
^
Push the appliance up against the
housing on the door opening side
(A), so that the sealing strip is
pressed against it.
^
Then push the appliance into the
niche until the front edge of the hinge
plates are flush with the housing unit
floor (B), and the front edge of the
opened fixing bracket a is flush with
the housing unit.
A gap of 43 mm must be maintained
between the appliance and the
housing unit on the hinge side.
(Marked X on the drawing)
^
Secure the appliance on the hinge
side to the housing unit at the top
and in the middle
on 19 mm thick housing unit walls
by using the shorter 5 x 75 mm c
screws and the smaller spacer
sleeves d, and
on 16 mm thick housing unit walls
by using the longer 5 x 80 mm c
screws and the longer spacer
sleeves d.
Building in the appliance
40
