Venting systems overview
The various venting systems which are
possible (a b c) are described on
the following pages.

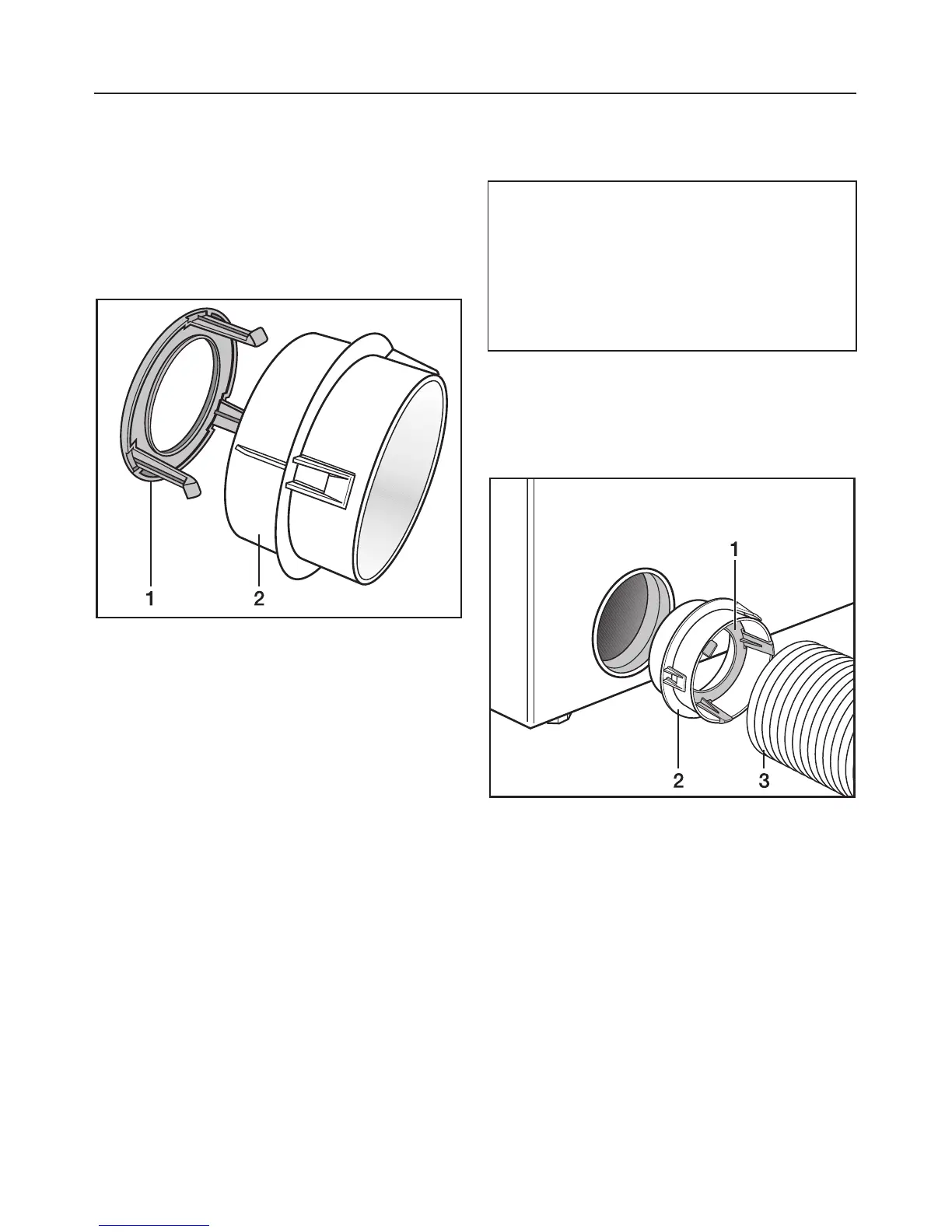

Adapter
A ring adapter** (1) is installed in
adapter (2) for the installation of a
flexible vent duct. It reduces time and
energy requirements during drying
when used in combination with a short
vent duct (maximum 10 m total
length). The ring adapter is removable
and designed for use with all venting
systems.
** Note for test institutes: EN 61121 Standard
testing is carried out with the ring adapter.
a Venting system with flexible
ducting
This is a simple, cost effective
method of directing the moist air
outside. The adapter is fitted into the
vent opening on the dryer and the
ducting hose is then connected to
the adapter.
^
The following items are required:
... flexible ducting hose
... a wall vent kit* or window vent kit*.
* (Miele optional accessory).
^
Ring adapter (1) must be taken out of
adapter (2), if the total duct length is
longer than 10 m.
If the total duct length is less than 10
m the ring adapter should be left in
the adapter.
^
Fit adapter (2) into the vent opening
on the dryer, and connect vent hose
(3).
^
See next page for examples.
