b Venting system with
plastic piping
Plastic piping is a good option where
the vented air has to ducted for some
distance. The smooth walls of the
pipe are less resistant to the vented
air than the walls of a flexible vent
hose, for example. Time and energy
consumption are better with plastic
piping.
^
The following items are required: . .
. . . an adapter* (dia. 100 mm)* with
rib on the inside.
. . . a wall vent kit* or window vent
kit*.
* (Miele optional accessory)
. . . Suitable plastic piping is
available from your dealer or builder’s
merchant. If a pipe diameter greater
than 100 mm is required, additional
adapters are necessary (e.g. to
increase from C 100 to 125 mm) to
connect the pipe to the dryer.

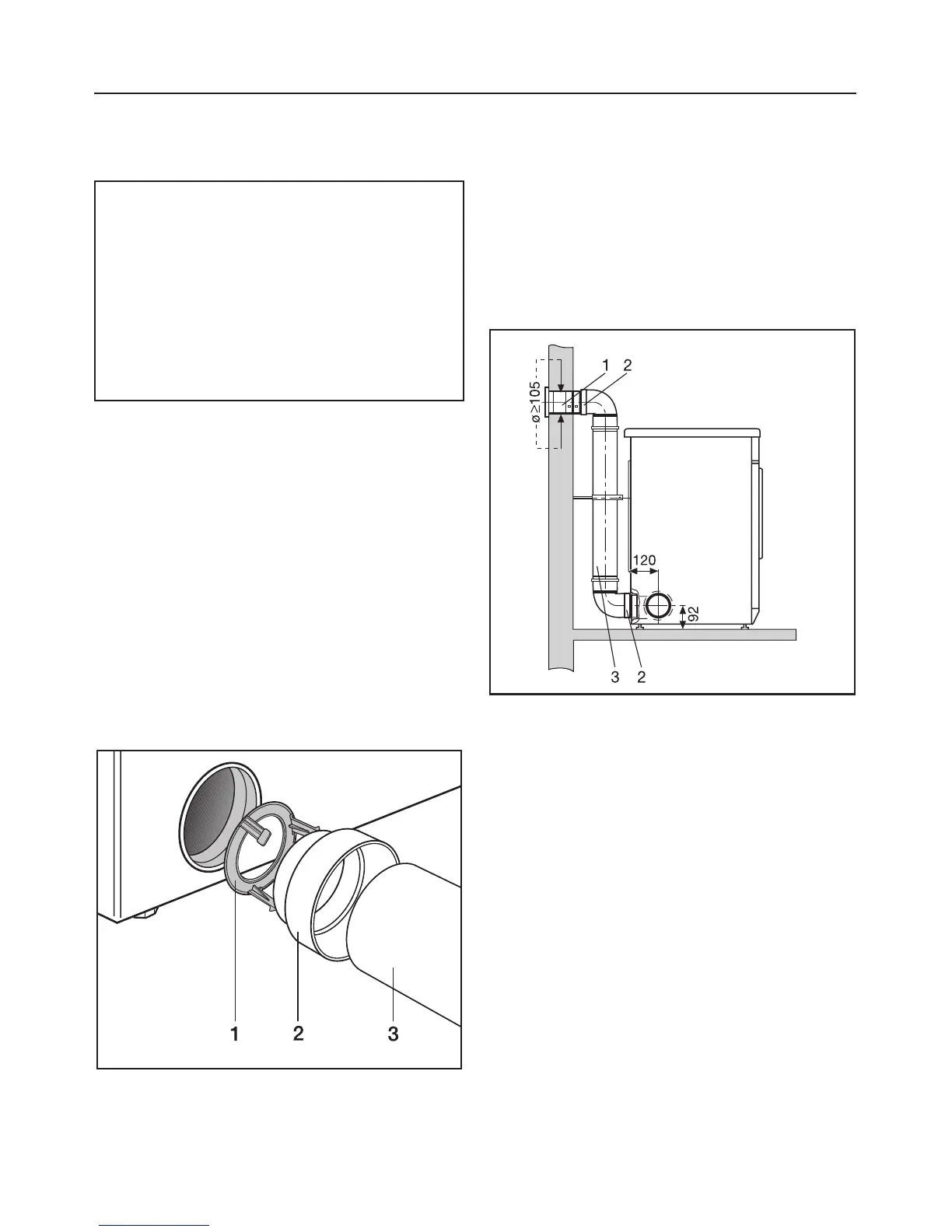

A The ring adapter (1) only needs to be
fitted into the Miele adapter (2), if the
total duct length is less than 10 m.
If the total duct length is greater than
10 m the ring adapter is not required.
B Fit Miele adapter (2) into the vent
opening on the dryer.
C Attach the pipe (3).
Example
1. Wall vent kit
(Separate fitting instructions are
supplied with the Miele wall vent kit).
2. Adapter
3. Plastic piping, diameter DN 100
Installation - venting
33
