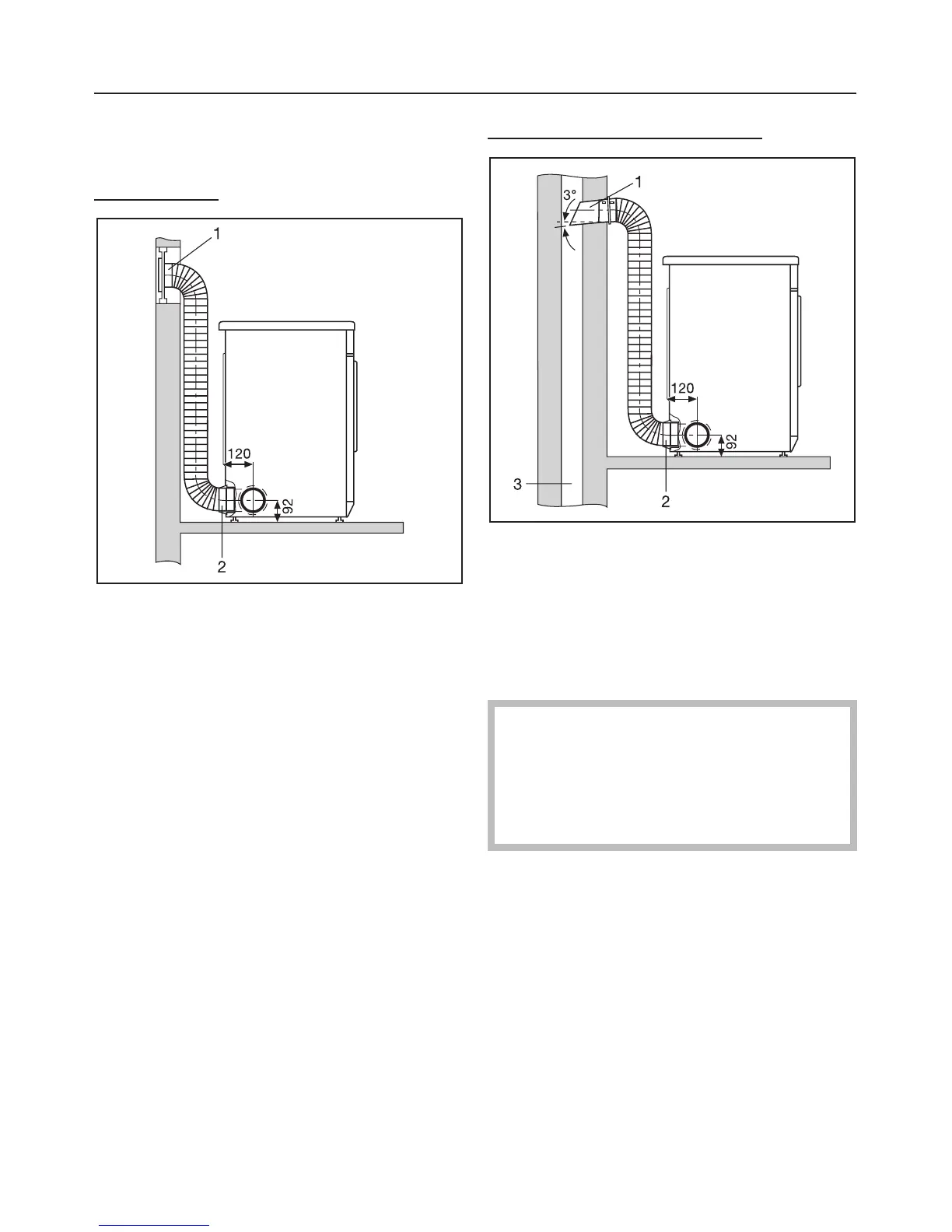

Installation examples - venting
system with flexible ducting
Window vent
1. Window vent kit (fitted in a
"plexiglass" pane)
(separate fitting instructions are
supplied with the Miele window vent
kit)
2. Adapter for flexible hose
Connection to an exhaust flue
1. Pipe with connection piece
(= supplied with the Miele wall vent
kit)
2. Adapter for flexible hose
3. Exhaust flue insulated against damp
,
The ducting must not be vented
into a chimney or vent flue which is
in use, nor should it be connected to
ducting which ventilates rooms with
fireplaces.
Installation - venting
38
