22

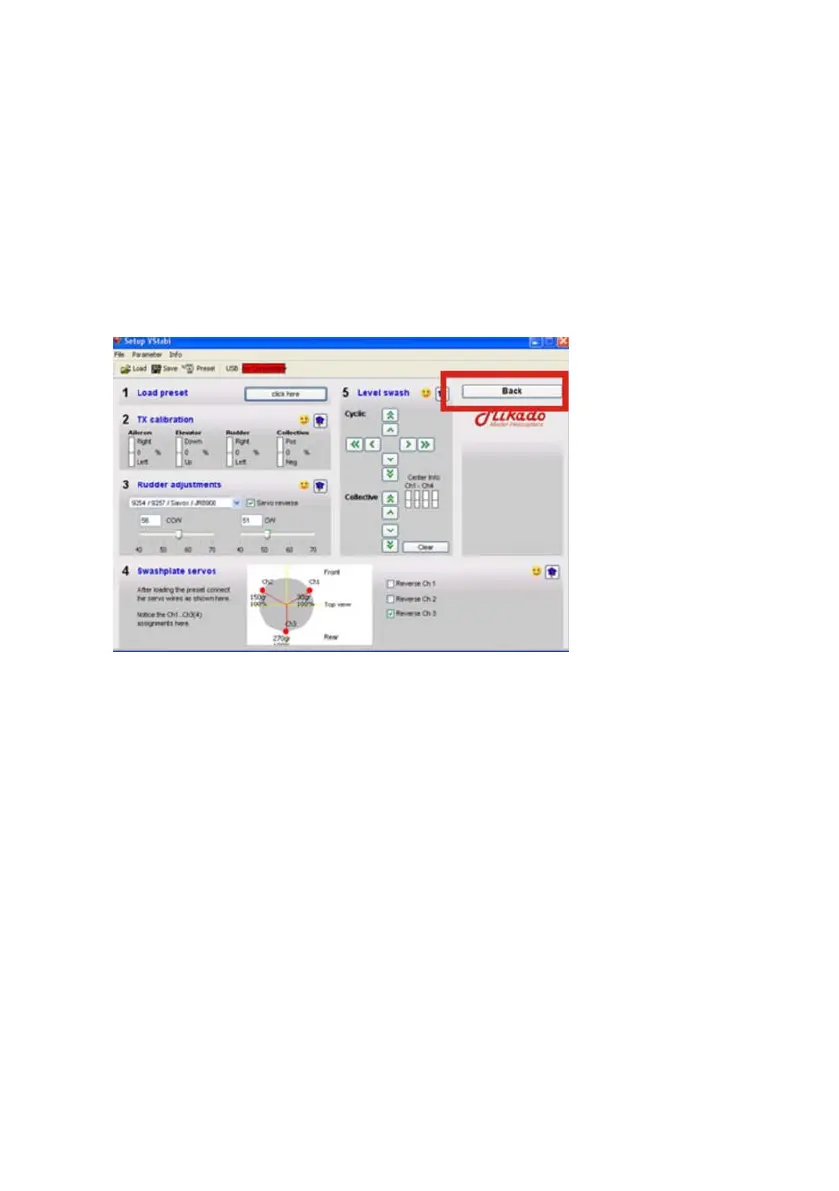

To set the desired maximum for collective pitch, click „Back“ and
return to the menu for the flight parameters. There, move the bar for
collective until you read the desired maximum collective pitch. Bear
in mind that the actual maximum value can only be checked by
returning to the Setup mode, so you may have to switch back and
forth between the two menus several times.
To complete preparations, you must install the 3-axis-gyro-sensor. It
has to be mounted in accordance with the tool tip. The important
aspects are placement and alignment.
The sensor needs to be aligned exactly horizontal, that is perpendicular
to the main shaft and parallel to the horizontal axis of the helicopter.
Use the special adhesive pad in your package to mount the gyro.
When mounting the gyro, make sure it stands clear from all other
surfaces of the frame.
When running the sensor wire, please ensure the sensor wire is
securely mounted to avoid pick up of any vibration.
7. Mounting the sensor
