MikroTik RB2011iL-IN User Manual

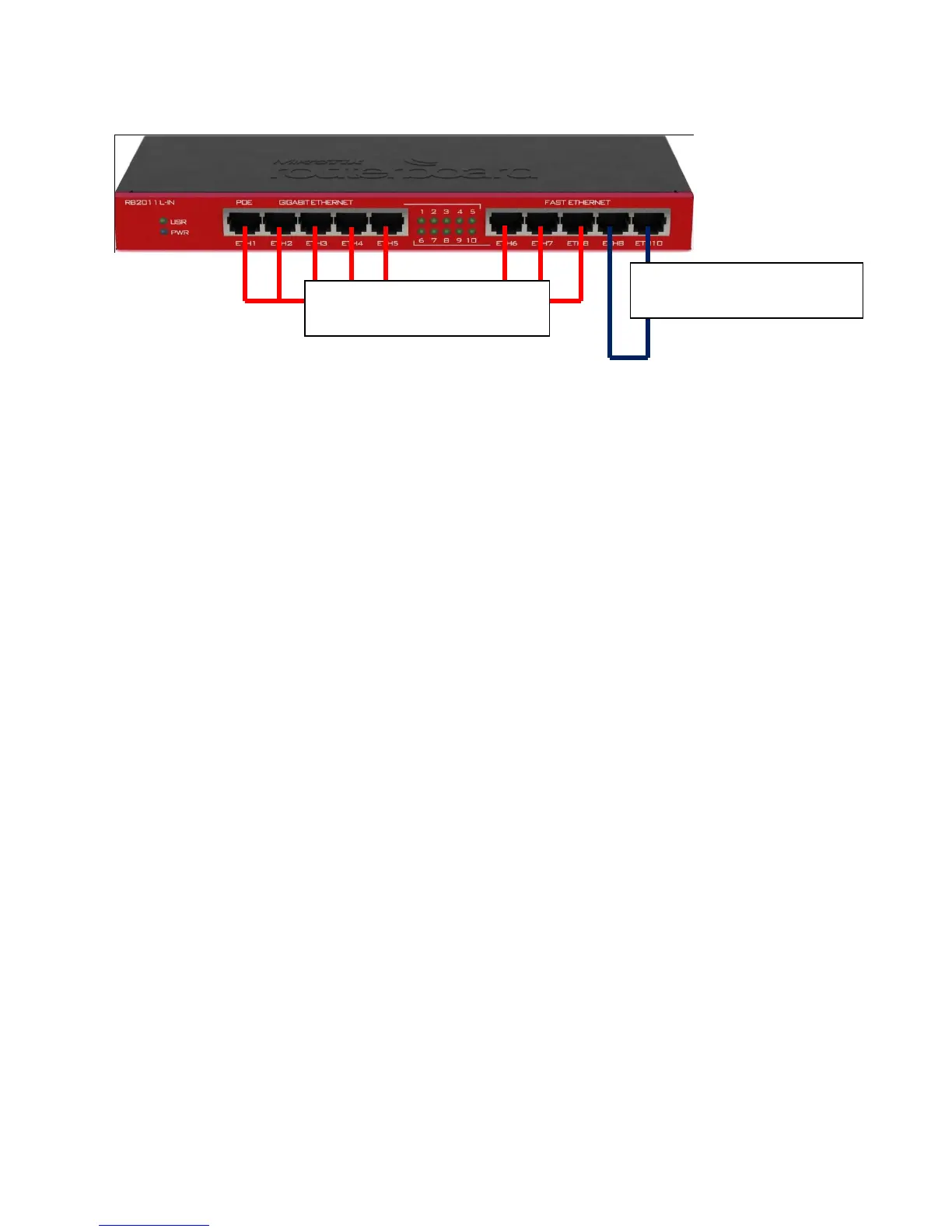

Cable Connection Image
ETH 1  Modem 1 (192.168.1.1)
ETH 2 Modem 2 (192.168.2.1)
ETH 3  Modem 3 (192.168.3.1)
ETH 4  Modem 4 (192.168.4.1)
ETH 5  Modem 5 (192.168.5.1)
ETH 6  Modem 6 (192.168.6.1)
ETH 7  Modem 7 (192.168.7.1)
ETH 8  Modem 8 (192.168.8.1)
ETH 9  AP
ETH 10  Management Port / Reserve AP
*** Each site may be different in terms of the number of modem in use
Eth 9 or Eth 10
Cable Connection to AP
Eth 1 to Eth 8
Cable Connection from modem

MikroTik RB2011iL-IN Specifications

General

Power connector	DC-in jack
Fast Ethernet (copper) ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	10
Product color	Red
LED indicators	Yes
Memory type	DDR-SDRAM
Internal memory	64 MB
Processor model	Qualcomm Atheros AR9344
Processor frequency	600 MHz
Compatible operating systems	RouterOS
Output voltage	28 V
Power consumption (max)	8 W
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	86 mm
Width	214 mm
Weight	151 g
