Electrical Equipment
1. Motors should be prepared in the manner prescribed by their manufacturer. If information is not available,
dismount and store motors as indicated in step 3 below.
2. Dismount electrical equipment (including motors) from the pump.
3. For all electrical equipment, place packets of Vapor Phase Corrosion Inhibitor (VPCI) inside of the enclosure,
then place the entire enclosure, with additional packets, inside a plastic bag. Seal the bag tightly closed.
Contact Milton Roy Service Department for recommended VPCI materials.
HANDLING OF PUMP
To avoid damaging the pump while moving or installing a Series G pump, follow the instructions below.
Refer to Figure 2-1
1. Place a sling under the motor flange.
2. Cross the two ends of the sling and close the loop.
3. Place the other end of the sling under the liquid end mounting flange.
4. Make sure the entire unit is well balanced before attempting to move the pump.
CAUTION:
To avoid possible damage to either pump or personnel, bolt pump down as soon as it is in position.
MOUNTING
Support the pump firmly in a level position on a solid, vibration-free foundation, preferably with the base
above floor level to protect the pump from wash downs and to provide easier access for service. Be sure to
allow enough space around the pump for easy access during maintenance operations, pump
adjustments, and/or oil filling or draining procedures.
Series G pumps are provided with mounting holes to accommodate anchor bolts. Refer to figure 2-2 for
mounting hole dimensions.
Some Series G pumps are shipped with motors dismounted. After anchoring pump in position, install
motor, referring to Figure 6-1. Make sure spring (Make sure spring (360360) provided with pump is installed in worm shaft prior to) provided with pump is installed in worm shaft prior to
motor installation.motor installation.
Pumps installed outdoors should be protected by a shelter.

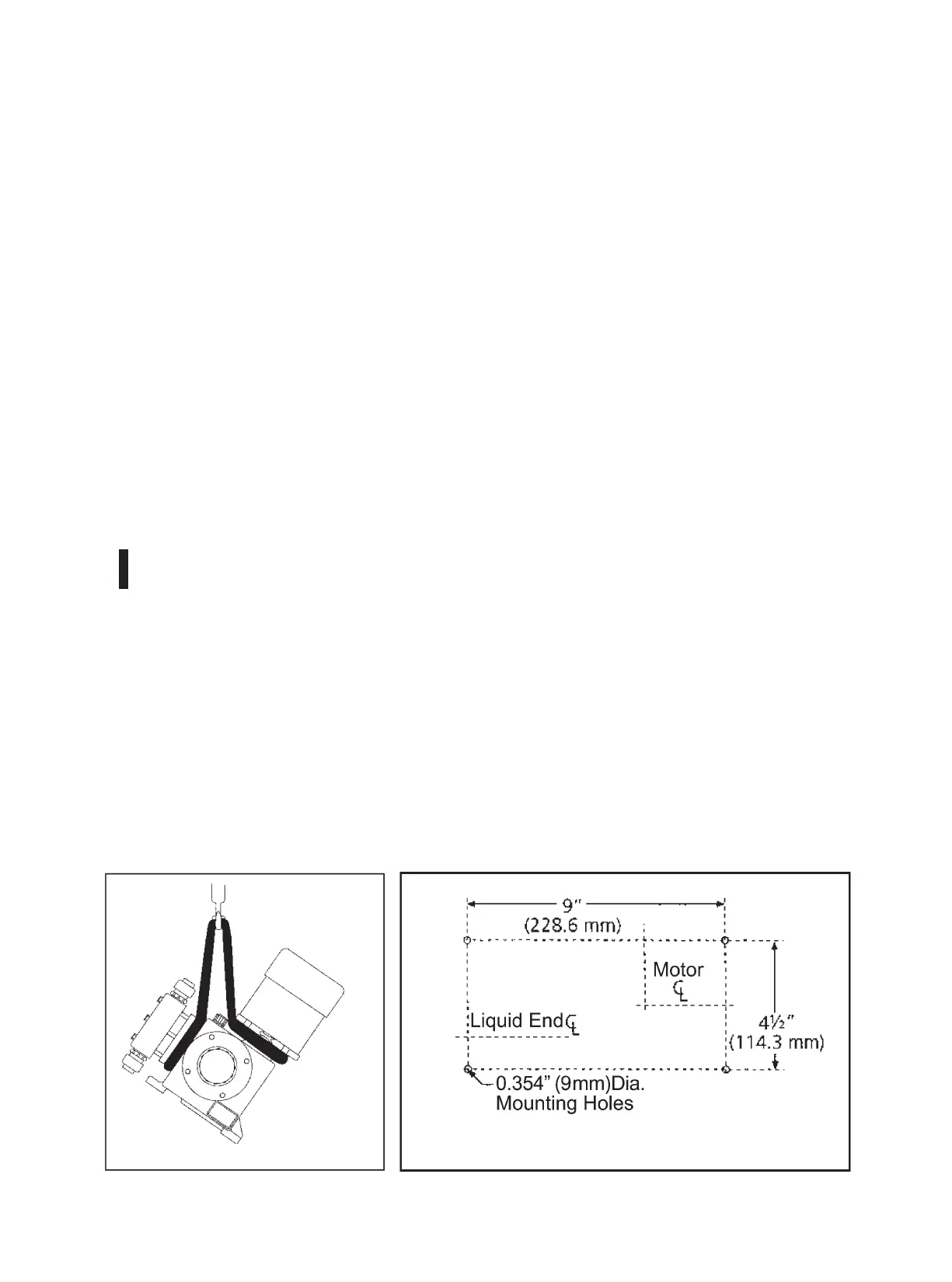

FigureFigure 22--11. Handling a Series GB Pump. Handling a Series GB Pump
FigureFigure 22--22. Mounting Hole Dimensions. Mounting Hole Dimensions
4
