Assembly

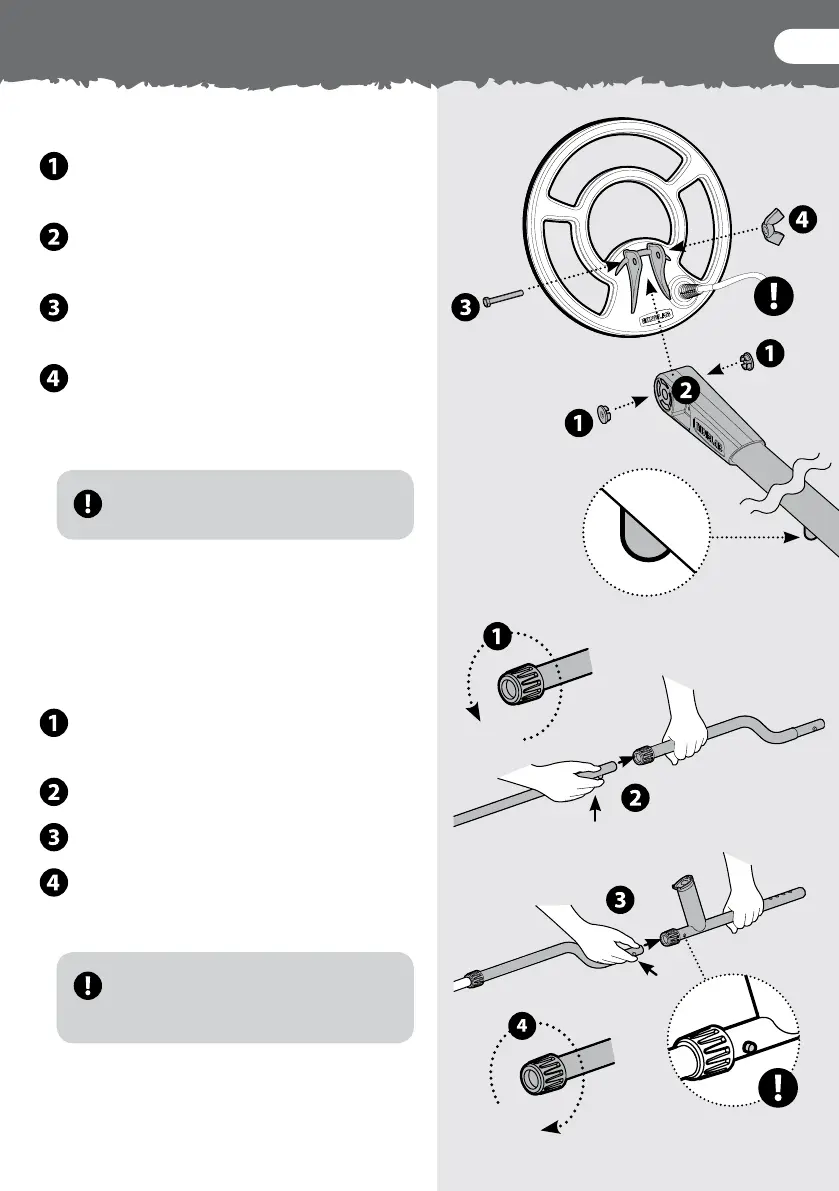

Connecting the Coil
Insert the two rubber washers into the lower
shaft yoke.
Slide the yoke into the yoke bracket on top
of the coil.
Insert the plastic bolt through the yoke
and the yoke bracket.
Fasten with the plastic wing-nut, being
careful not to damage the thread of the bolt
by over-tightening.
Shaft Assembly
Loosen twistlocks by rotating them
counter-clockwise.
Insert lower shaft into the middle shaft.
Attach the middle shaft to the upper shaft.
Once shafts are assembled, lock their
position by rotating the twistlocks clockwise.
The upper shaft assembly has two spring-
loaded pins to strengthen the joint, one on
each side of the shaft.
The coil cable is directly wired into the coil
and is not removable.
