CONTROLLING SPEED AND DIRECTION WITH THE TILLER
These motors are equipped with an extension twist tiller with a telescoping handle, which off ers a choice of fi ve forward and three
reverse speeds. The speed control may be operated in either direction, forward or reverse. Turn the tiller handle counterclockwise
from (OFF) to increase reverse speed and clockwise from (OFF) to increase forward speed. Thrust decreases as you approach
(OFF) from either direction.
OFF
REV ERS E
FORWARD
5 4 3 2 1
1 2 3
FORWARD
REVERSE
10 | minnkotamotors.com
©2014 Johnson Outdoors Marine Electronics, Inc.
USING & ADJUSTING THE MOTOR

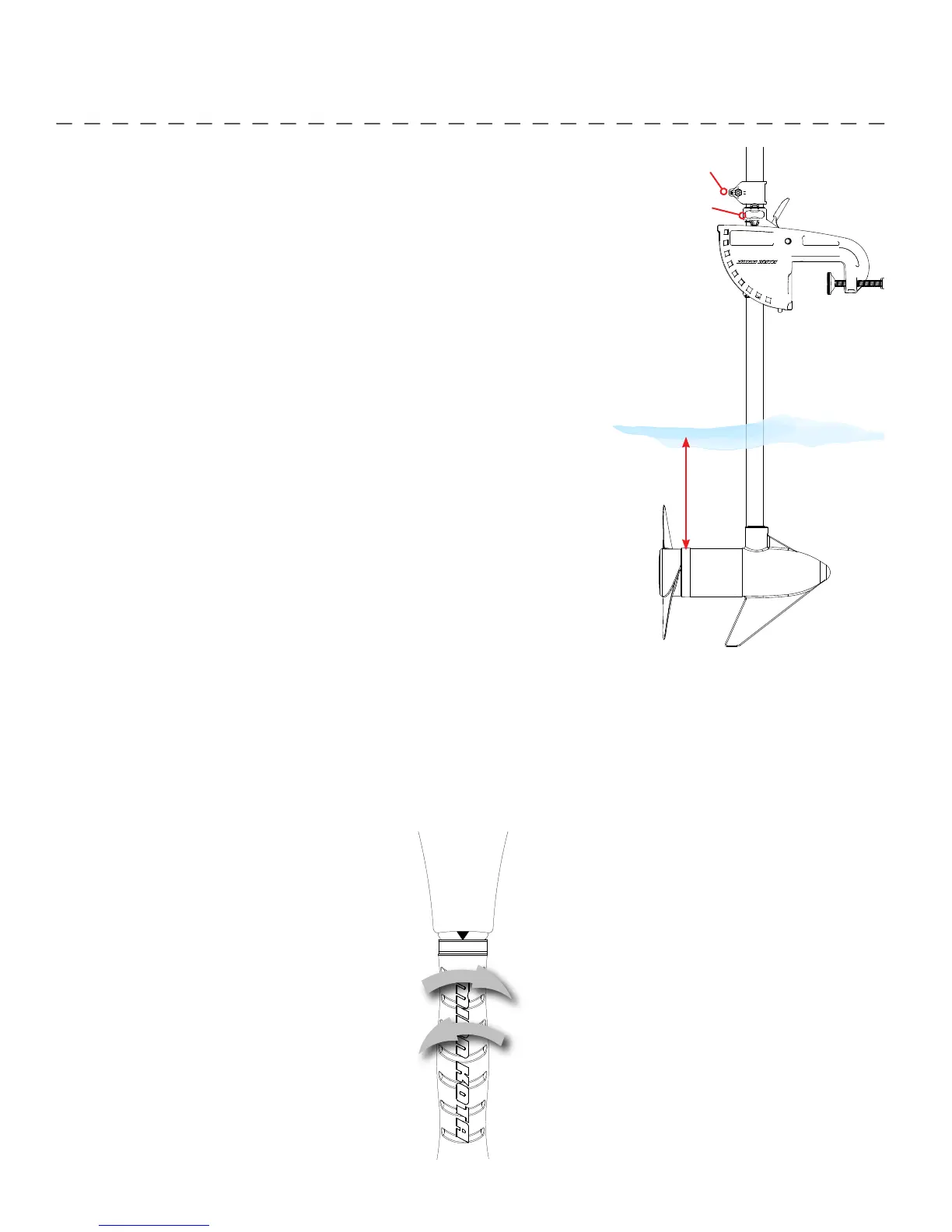

TO ADJUST THE DEPTH OF THE MOTOR
When setting the depth be sure the top of the motor is submerged at least
12” to avoid churning or agitation of surface water. The propeller must be
completely submerged.
1. Firmly grasp the composite shaft and hold it steady.
2. Loosen the steering tension knob and depth collar knob until the shaft
slides freely.
3. Raise or lower the motor to the desired depth.
4. Tighten depth collar knob to secure the motor in place.
CAUTION:
• Never operate your motor when it is out of the water.
• Over-tightening the clamp screws can damage the bracket.
STEERING ADJUSTMENT
• Adjust the steering tension knob to provide enough tension to allow the
motor to turn freely, yet remain in any position without being held
OR
• Tighten the knob to place the motor in a preset position to leave your
hands free for fi shing.
Depth Adjustment Knob
Steering Tension Knob
12” Minimum
Depth
To Next Page
