USING & ADJUSTING THE MOTOR
BRACKET ADJUSTMENT
You can lock your motor in a vertical position, angle it for shallow water or tilt it completely out of the water.
1. Firmly grasp the control head or composite shaft.
2. Press the tilt lever toward the shaft and hold to release the detent lock or T-bar to adjust the position of the mounting bracket.
3. Tilt to any of the positions on the mounting bracket.
4. Release the tilt lever.
WARNING: When raising/lowering motor or operating the tilt mechanism, keep
fi ngers clear of all hinge and pivot points and all moving parts.

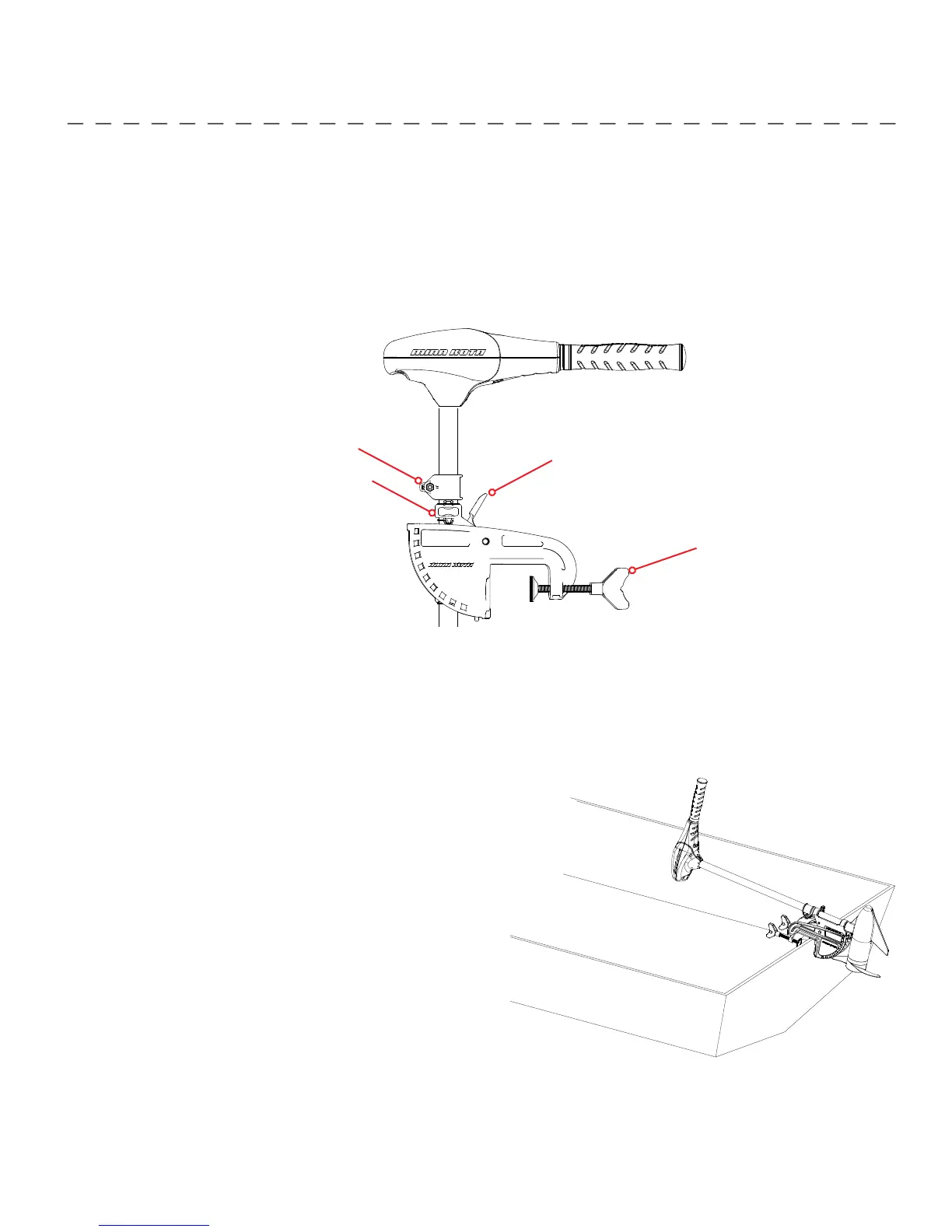

Depth Adjustment Knob
Steering Tension Knob
Quick Release Tilt Lever
Clamp Screws
STOWING THE MOTOR
1. Adjust depth so that the motor is fully raised.
2. Press and hold tilt lever.
3. Tilt motor into the boat.
4. For transport, always tilt the motor into the boat such that the
motor and prop assembly are completely out of the water and the
motor is positioned up close to the lever lock bracket.
