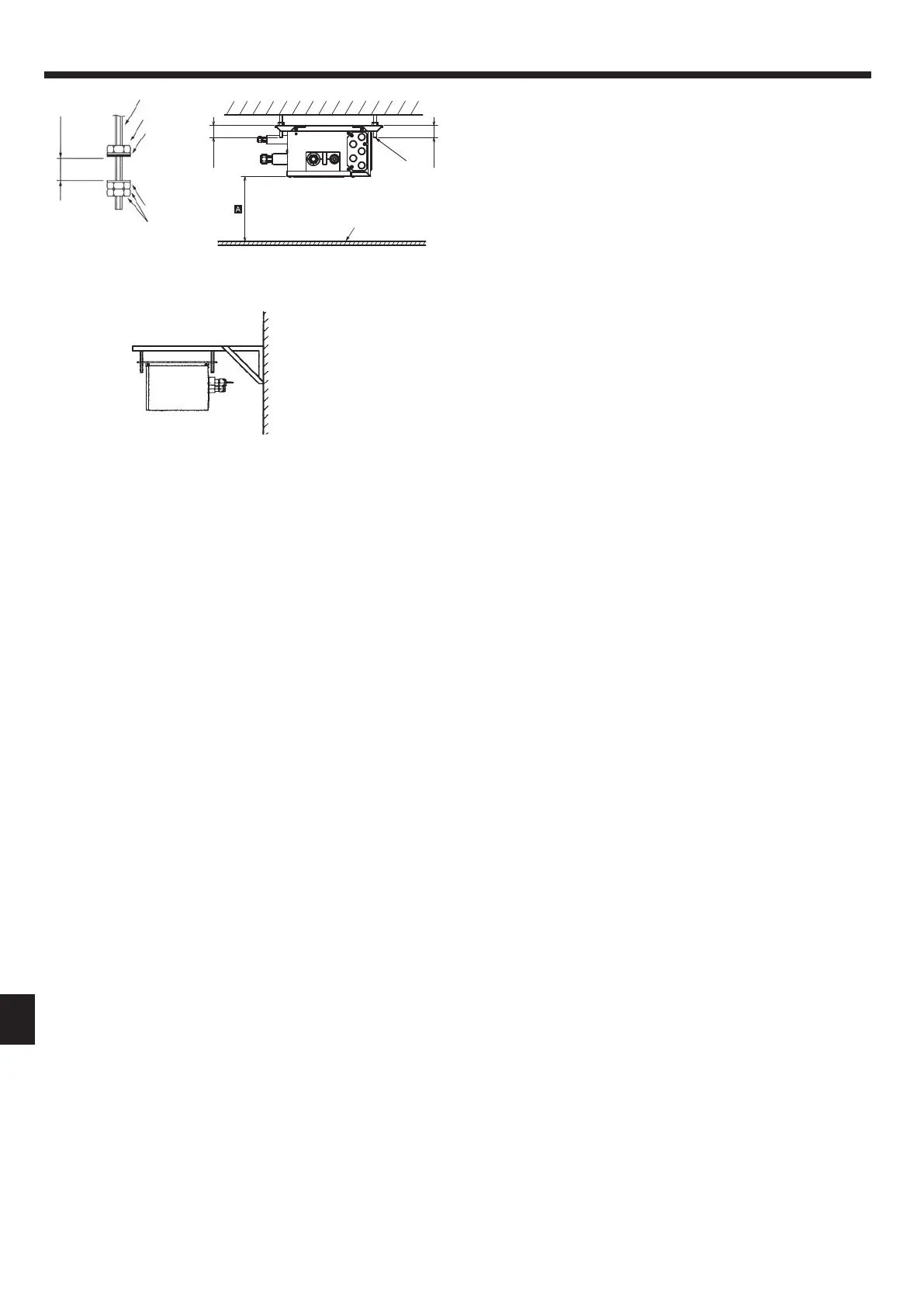

6. Mounting the Branch Box
(1)Installthesuspensionbolts(procurelocally)atthespeciedpitch(Fig.4-3,4-4).
(2) Fit the washers (1, 2) and nuts (procure locally) to the suspension bolts.
(Fig. 6-1)
(3) Hang the unit on the suspension bolts.
(4) Fully tighten the nuts (check ceiling height).
(5) Use a level to adjust the branch box to the horizontal.
A
When unit is hung and nuts tightened
B
Suspension bolt
C
Nut (procure locally)
D
Washer (with cushion)
1
E
Ensure that cushion faces downwards
F
Washer (without cushion)
2
G
Nut (procure locally)
H
Ceiling board
B
H
C
F
A
G
D
(
E
)
B
Fig. 6-1
(in)
Fig. 6-2
* Purchase an appropriate
bracket locally if the unit
is to be mounted on a
wall.
Min. 1-3/16
Min. 2
Min. 2
Bracket
Wall
en
7
WG79B826H01_01en.indd 7 2023/01/13 13:42:49
