Specifi cations
The specifi cations and outside appearance of the projector are subject to change without prior notice.
Typ e
Model
Display technology
Projection lens
Light-source lamp
Image size (projection distance)
Maximum
resolution
Computer signal
Video signal
Component
signal
Computer input
Video input
Control terminal/
others
DLP™ projector
HD1000
0.62-inch single chip DMD (aspect ratio 16:9)
Pixel: 1280 x 720 = 921600 pixels
F 2.4 - 2.6 f= 23 - 27.6 mm
200 W
40” min. to 275” max. (projection distance 1.3 to 10 m)
Maximum resolution: 1280 x 1024 dots (analog)/compressed
Panel resolution: 1280 x 720 dots
NTSC/PAL/SECAM/4.43NTSC/PAL-M/PAL-N/PAL-60
480i, 480p, 576i, 576p, 720p, 1080i
Panel resolution: 1280 x 720 dots
[Signal type] [Terminal type] [Line]
Analog RGB D-SUB 15P 1
HDMI HDMI 19P 1
[Signal type] [Terminal type] [Line]
Video input RCA 1
S-video input S 1
Component video input
RCA 1
RS-232C (8-pin)
DC 12 V, max. 200 mA (stereo mini jack)
+41°F (+5°C) to +95°F (+35°C)
AC100 - 240 V, 50/60 Hz
2.9 A
310 mm (W) x 100 mm (H) x 245 mm (D) * Not including protrusion.
2.9 kg
Luminance signal: Vp-p=1.0 V 75 Ω (negative sync)
Chrominance signals: Vp-p=0.286 V 75 Ω (burst signal)
Vp-p=1.0 V 75 Ω (negative sync)
YC
B
C
R
: Vp-p=1.0 V 75Ω (Y) (negative sync)
Vp-p=0.7 V 75 Ω (C
B
, C
R
)
RGB: Vp-p=0.7 V 75 Ω (negative sync)
YC
B
C
R
: Vp-p=1.0 V (Y) (negative sync) Vp-p=0.7 V (C
B
, C
R
)
HD/CS: TTL-level (negative or positive polarity)
VD: TTL-level (negative or positive polarity)
HDMI interface (TMDS single link)
61
245
310
1005
HDMI IN
USBSERIAL
TRIGGER
COMPONENT VIDEO IN
S-VIDEO IN
VIDEO IN

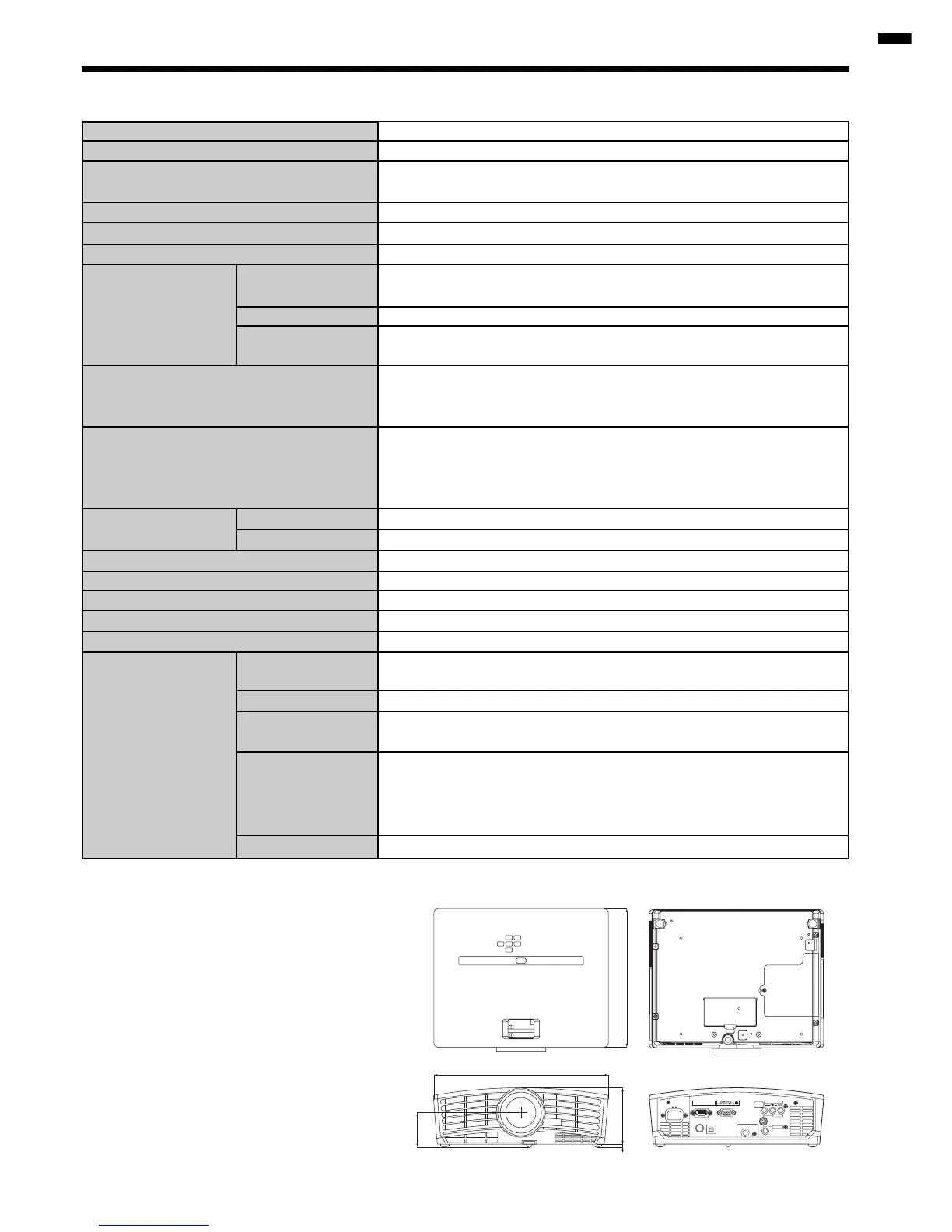

Dimension drawings (unit: mm)
SERIAL
TRIGGER
Operating temperatures
Rated voltage
Power consumption
Dimensions
Weight
Others
S-video input
Video input
Component video
input
Analog input
Digital input (HDMI)
