86
M-Series - Controls (December 2016)
Due to continuing improvement, above specication may be subject to change without notice.
© 2016 Mitsubishi Electric US, Inc.
2000
160
130
30
2520
70
15
Locally prepared cable
taking cut hole
Hole for wall
installation
(2 places)
Unit : mm
Material: ABS resin, Color: Gray (Munsell 3.07Y 6.16/0.33)
160 x 70 x 30
Weight
200g
Connecting cable
(indoor unit)
Indoor only
Temperature: 0 to 40 , Humidity: 35 to 85%RH (no condensation)
External dimensions (mm)
Supplied from indoor unit
Power
Exterior
5-wire (3 + 2) cable with connector (9-pin, 4-pin)
Operating conditions
Output signal
No-voltage "a" contact (relay contact method)
2 (Operation / Alarm)
Number of Contacts
Contact capacity
200V AC (30V DC)/1A or less
Minimum load
10mA
Input signal
Pulse signal (instantaneous non-voltage "a" contact), pulse width: 200ms or more
1 (start/stop)
Number of Contacts
Input/output
signal cable
Twisted: 0.5 to 1.25mm2, Single: Φ0.65 to Φ1.2mm
CV, CVS, or equivalent sheathed vinyl cord/cable
Type
Diameter
Distance
Output signal cable: Max. 100m
Input signal cable: Max. 10m (Extension relay must be used when exceeding 10m)
(locally prepared)
* This kit cannot be used with a wireless remote controller.
Water leakage alarm will not be displayed if the unit is built into the ceiling (PDH)
Extraction of non-voltage contact output.
*Use of optional [Remote Operation Adapter] and "remote display
panel" Part to be provided at your site) provides non-voltage con-
tact outputs of signals (operation, error) and operation/stop input
function.
Unable to use with wireless remote controller. (except for PKA-
RP·HAL/KAL)
SLZ-KA09/12/15NA
SEZ-KD09/12/15/18NA4
PCA-A24/30/36/42KA6
PLA-A12/18/24/30/36/42BA6
PEA-A12/18AA6
PEAD-A24/30/36/42AA5
PVA-A30/36/42AA4
1. CONTROLS
Specications
Applicable Models
Figure
Descriptions
Dimensions

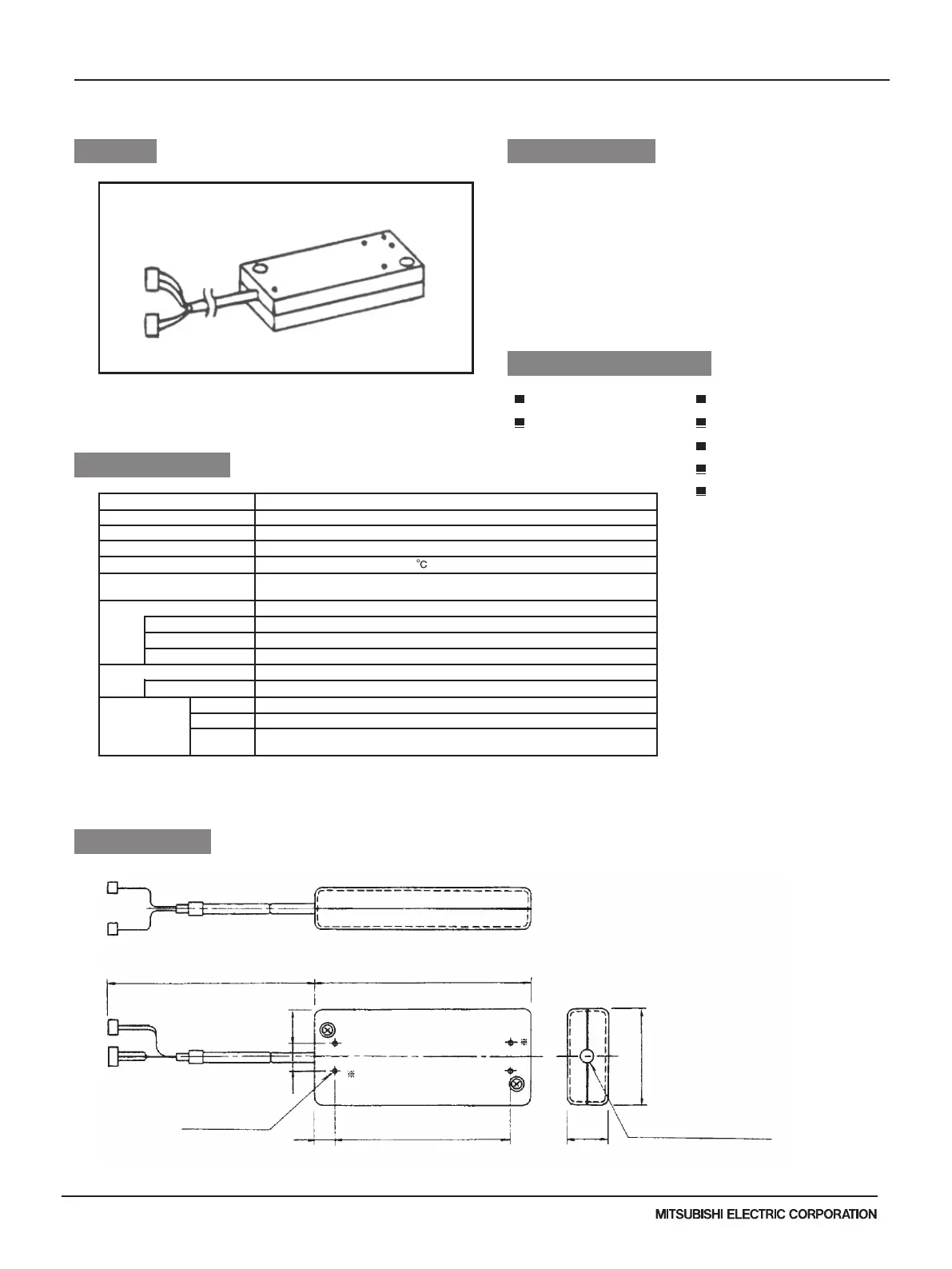

1-11. Remote Operation Adapter [PAC-SF40RM-E]
To Next Page
