En-4
Display section
Air inlet (back and side)
Refrigerant piping
Air outlet
Drain outlet
Horizontal vane
Vertical vane
Air outlet
Air fi lter
(Air purifying
fi lter)
Air inlet
Air cleaning fi lter
(Anti-Allergy Enzyme fi lter, option)
Outdoor unit

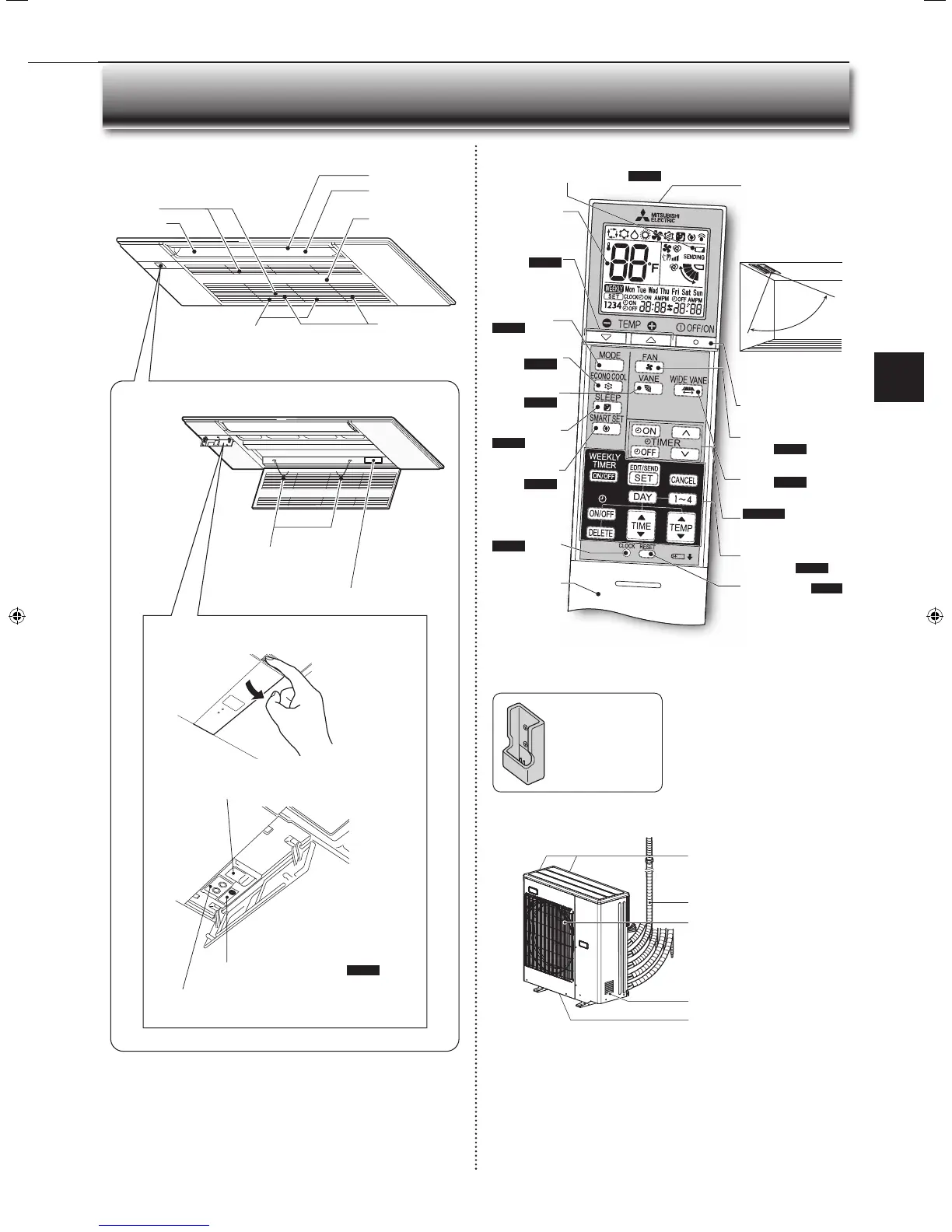

NAME OF EACH PART
Indoor unit
Outdoor units may be different in appearance.
*1 The manufacturing year and month is indicated on the spec name plate.
Intake grille
Safety strings
Spec name plate *1
Spec name plate *1
Remote controller
Remote
controller holder
Signal transmitting
section
Distance of signal :
About 20 ft. (6 m)
Beep(s) is (are) heard from
the indoor unit when the
signal is received.
Operation
display section
OFF/ON
(stop/operate) button
Temperature
buttons
Page 5
Operation
select button
Page 5
ECONO COOL
button
Page 7
VANE control
button
Page 6
FAN speed control
button
Page 6
WIDE VANE control
button
Page 6
TIME, TIMER set buttons
Page 3, 7
Increase time
Decrease time
CLOCK button
Page 3
RESET button Page 3
Lid
Slide the lid
down to open
the remote
controller.
Slide it down
further to get
to the weekly
timer buttons.
• Install the remote con-
troller holder in a place
where the signal can be
received by the indoor
unit.
Only use the remote controller provid-
ed with the unit.
Do not use other remote controllers.
If two or more indoor units are installed
in proximity to one another, an indoor
unit that is not intended to be operated
may respond to the remote controller.
SLEEP button
Page 7
SMART SET
button
Page 6
WEEKLY TIMER
set buttons
Page 8
Battery replacement indicator Page 3
90°
Operate the remote control-
ler in the area where signal is
received, and beep is heard.
Open the display cover
Remote control receiving section
Emergency operation switch Page 5
Operation indicator lamp
RG79Y944H01_en.indd 4 2017/12/18 13:21:48
