4
ACCESSORIES
Model
MSZ-AP15/20VG -
E1
,
ET1
,
ER1
,
E2
,
ET2
MSZ-AP15/20VGK -
E1
,
ET1
,
ER1
MSZ-AP15/20VG -
E3
,
ET3
MSZ-AP15/20VGK -
E2
,
ET2
,
ER2
(1) Installation plate 1 1
(2)
Installation plate xing
screw 4 × 25 mm
5 5
(3) Wireless remote controller 1 1
(4)
Felt tape (For left or left-
rear piping)
1 1
(5) Battery (AAA) for (3) 2 2
(6) Air cleaning lter - 2
MSZ-AP15VG MSZ-AP15VGK MSZ-AP20VG MSZ-AP20VGK

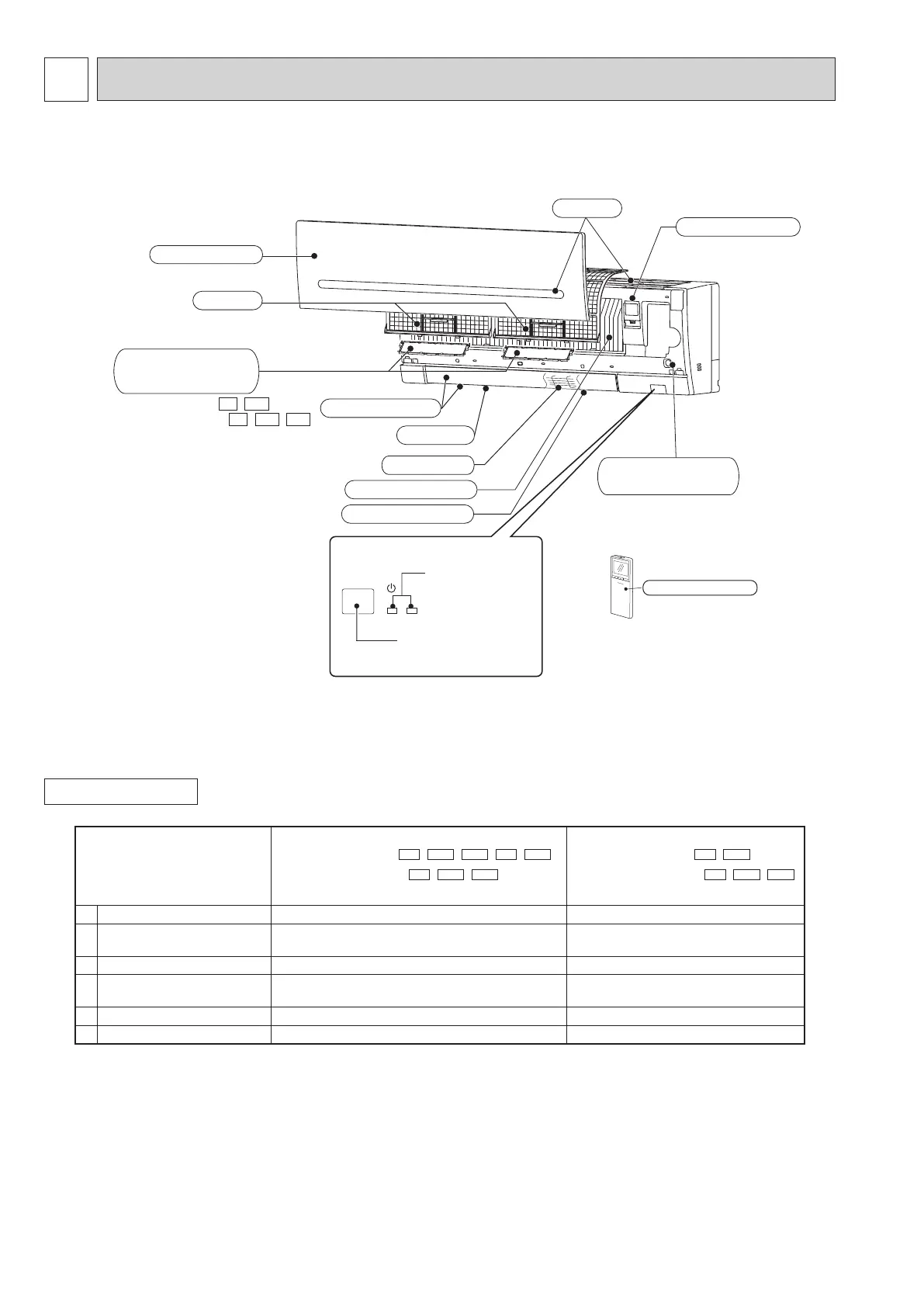

PART NAMES AND FUNCTIONS
2
Remote controller
Operation
indicator lamp
Remote control
receiving section
Horizontal vane
Air outlet
Air fi lter
Heat exchanger
Emergency
operation switch
Front panel
Wi-Fi interface
Air inlet
MSZ-AP·VGK
Fan guard
Spec name plate
Air cleaning fi lter
(V Blocking Filter)
MSZ-AP·VG -
E3 , ET3
MSZ-AP·VGK - E2 , ET2 , ER2
