• This adapter enables control of several units with a multiple
remote control display.
<PAC-SA88HA-E>
<PAC-725AD>
Unit : mm
Function
Connecting cable to output status signal of the air condi-
tioner, and ON/OFF by external (pulse) signal.
Input signal
Pulse signal (no voltage instantaneous ON contact)
Pulse duration 200m/s or more.
Connector
5P (connector to CN51 or CN52 on indoor unit control
board)
Cable type
5-wire vinyl cable, for extension: sheathed vinyl cord or
cable (0.5 to 1.25mm²)
Cable length 2m (max. 10m when extended locally)
Output capacity) DC12V 75mA (Max 0.9W)
PAC-SA88HA-E
10 pieces
SLZ-KA09/12/15NA
SEZ-KD09/12/15/18NA4
PKA-A12/18HA6
PKA-A24/30/36KA6
PCA-A24/30/36/42KA6
PLA-A12/18/24/30/36/42BA6
PEA-A12/18AA6
PEAD-A24/30/36/42AA5
PVA-A30/36/42AA4
1. CONTROLS
Dimensions
Figure
Descriptions
Applicable Models
Specications

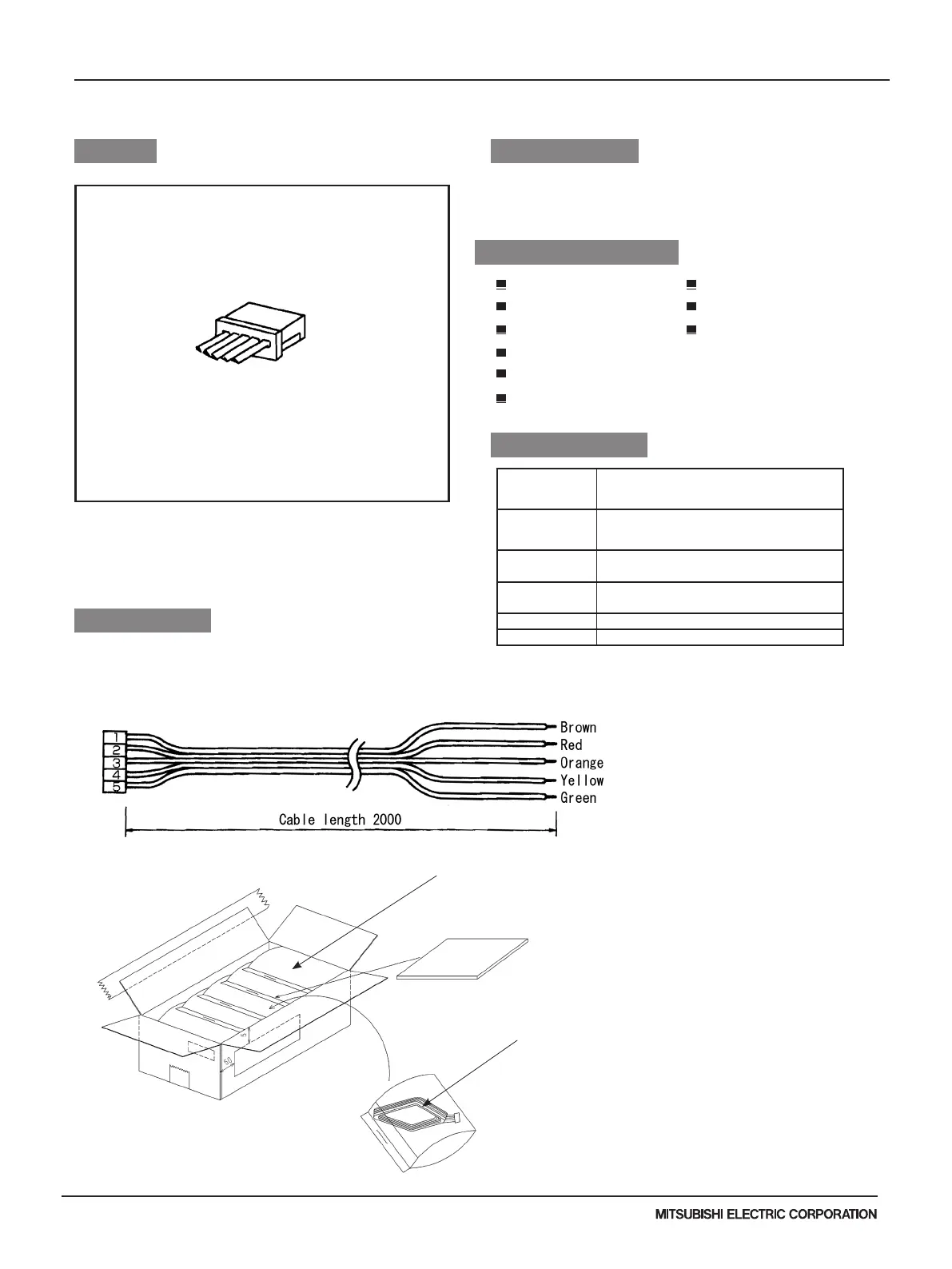

1-10. Connector Cable for Remote Display [PAC-SA88HA-E/PAC-725AD-E]
