Error code
Remote controller:
LED Green Red
Indoor
Content
E5
Communication error during operation
Keeps flashing 2 times flash
Outdoor
– 6 times flash
1. Applicable model
5. Troubleshooting
All models

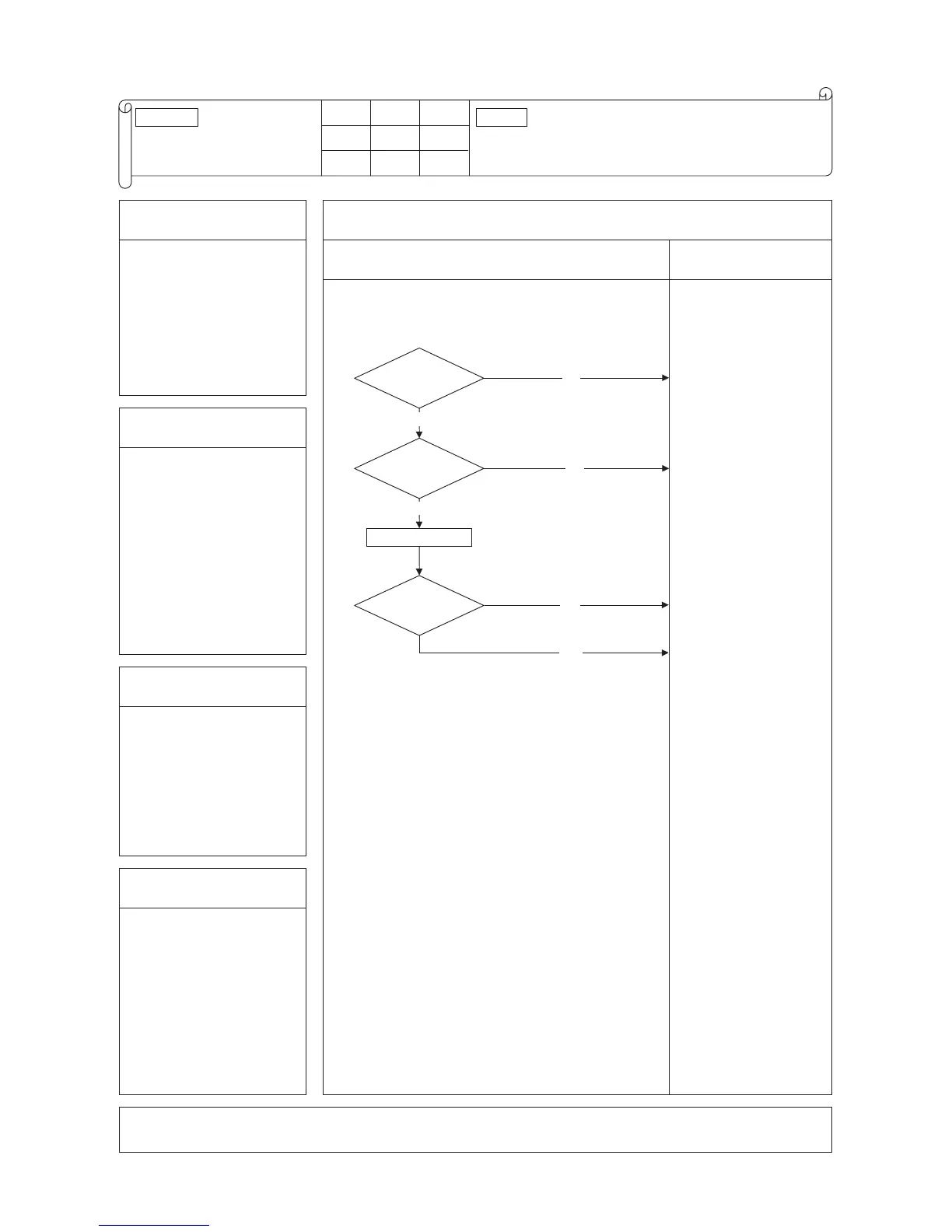

Diagnosis Countermeasure
Has the remote
controller LCD returned to
normal state?
YES
NO
Is the
connection of signal
wires at the outdoor unit
side OK?
Is the
connection of signal
wires between indoor-outdoor
units OK?
Note (1) Inspect faulty connections (disconnection,
looseness) on the outdoor unit terminal block.
Power reset
Note (2) Check for faulty connection or breakage of
signal wires between indoor-outdoor units.
YES
NO
YES
NO
Repair signal wires.
Repair signal wires.
Defective outdoor sub
PCB (Defective network
communication circuit)
ª
Replace.
Unit is normal.
(Malfunction by temporary
noise, etc.)
2. Error detection method
When normal communication
between indoor and outdoor
unit is interrupted for more than
2 minutes.
3. Condition of Error displayed
Same as above is detected
during operation.
4. Presumable cause
• Unit No. setting error
• Broken remote controller wire
• Faulty remote controller wire
connection
• Faulty outdoor sub PCB
