Unit display section

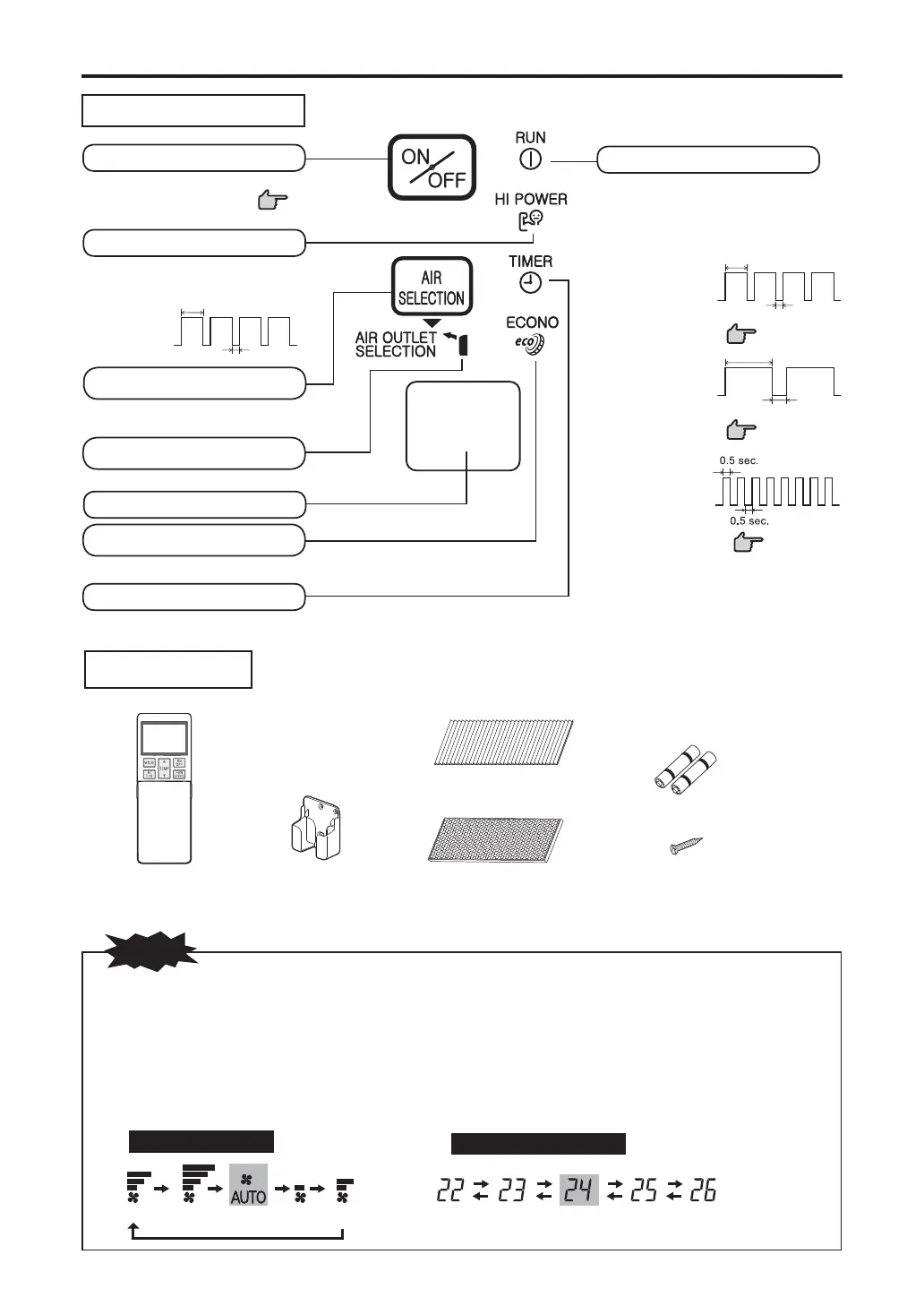

Name of each part and its function
Battery
(R03 (AAA, Micro) × 2)
Wood screw (Quantity:2)
(for remote control holder mounting)
Allergen clear filter
(Light orange)
Photocatalytic washable
deodorizing ¿ lter (Orange)
Accessories
Wireless remote control Wireless remote
control holder
ON
OFF
Operation mode
invalid
Page 32
AIR SELECTION button
HI POWER Light (green)
AIR OUTLET SELECTION light (green)
This button can be used for turning on/off the unit when
remote control is not available.
Page 9
Unit ON/OFF button
• Illuminates during operation.
• Blinks when airÀ ow stops due to the ‘HOT
KEEP’, ‘SELF CLEAN operation’and
‘operation mode invalid’.
Page 14
Page 25
RUN (HOT KEEP) light (green)
0.5 sec.
ON
OFF
1.5 sec
.
HOT KEEP
Remote control signal receiver
TIMER light (yellow)
Illuminates during TIMER operation.
3 sec.
1 sec.
ON
OFF
SELF CLEAN
operation
0.5 sec.
ON
OFF
1.5 sec.
Illuminates during HIGH POWER operation.
Blinks during heating preparation.
Use this button to switch between the combination of
upper and lower air outlets and upper air outlet.
Illuminates during upper air outlet operation.
ECONO light (green)
Illuminates during ECONOMY operation.
x Buzzer sound for remote control
Buzzer sound (PipPip) is produced when
preset temperature is set to 24 °C or,
AUTO operation mode is selected or,
automatic airflow is selected (except FAN mode operation).
Buzzer sound (Pip) is produced when
air-conditioner is turned off by pressing ON/OFF button (except SELF CLEAN operation).
NOTE
Preset temperature
Airflow setting
PipPip Pip Pip Pip Pip Pip Pip Pip Pip Pip Pip
