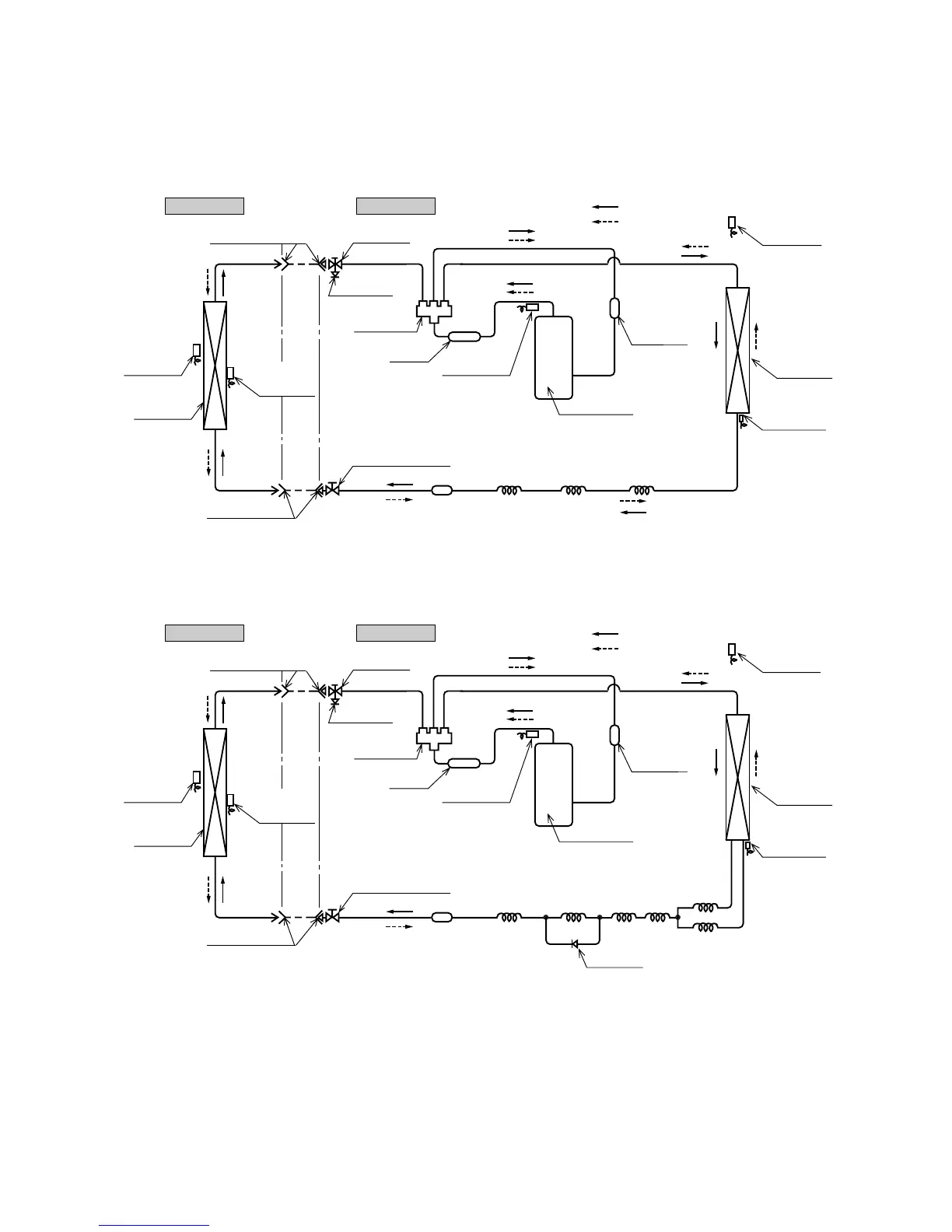

2.4 Piping system
Model SRK40HG
Outdoor unitIndoor unit
Flare connecting
Room temp.
sensor
Heat
exchanger
Flare connecting
Piping
(Liquid)
ø6.35
Heat
exchanger
sensor
Piping
(Gas)
ø9.52
Service valve
(Gas)
Check joint
4 way valve
Service valve (Liquid)
Strainer
Capillary tube Capillary tubeCapillary tube
Compressor
Accumulator
Discharge temp.
sensor
Muffler
Heat exchanger
sensor
Heat
exchanger
Outdoor air
temp. sensor
Cooling cycle
Heating cycle
Models SRK20HG, 28HG
Outdoor unitIndoor unit
Flare connecting
Room temp.
sensor
Heat
exchanger
Flare connecting
Piping
(Liquid)
ø6.35
Heat
exchanger
sensor
Piping
(Gas)
ø12.7
Service valve
(Gas)
Check joint
4 way valve
Service valve (Liquid)
Strainer
Capillary tube
Compressor
Accumulator
Discharge temp.
sensor
Heat exchanger
sensor
Heat
exchanger
Outdoor air
temp. sensor
Cooling cycle
Heating cycle
Check valve
Muffler
