ACTIVE SAFETY
M2000031001510
ANTI-LOCK BRAKING SYSTEM (ABS)
The ABS (with EBD) ensures directional stability and
controllability during hard braking. The ABS is stan
-
dard equipment on the all models.
This ABS uses a 4-sensor system that controls all
four wheels independently of each other, and has the
following features:
• EBD
*1
control that can obtain ideal rear wheel
brake force has been employed.
• The magnetic encoder for detecting the wheel
speed has been installed instead of the rotor as
the wheel speed sensor.
• For wiring harness saving and secure data com-
munication, CAN
*2
bus has been adopted as a
tool of communication with other ECUs.
NOTE: .
•
*1
: EBD (Electronic Brake-force Distribution)
•
*2
: For more information about CAN (Controller
Area Network), refer to GROUP 54C
P.54C-2.

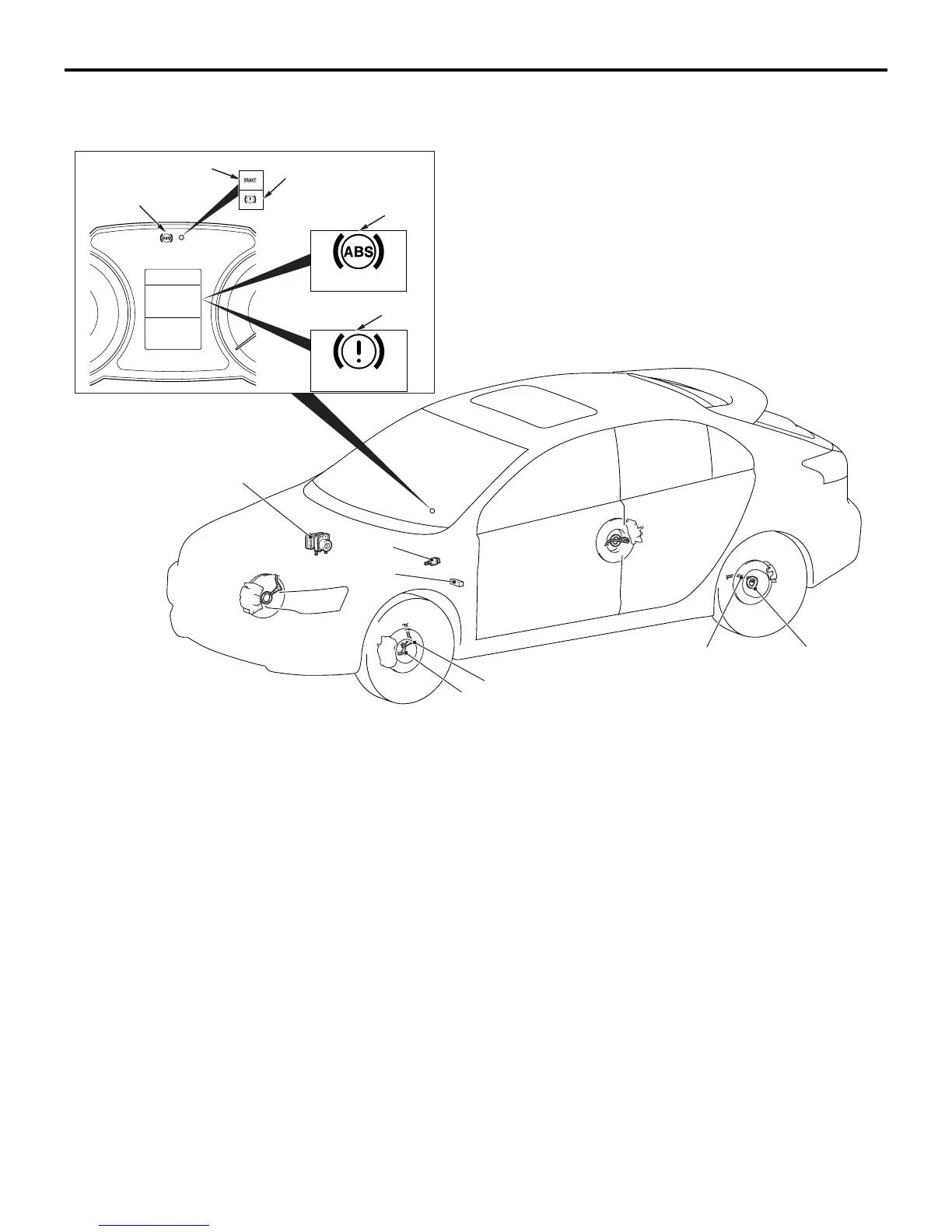

AC807249
CHECK
SERVICE
REQUIRED
AC
<Vehicles for CANADA>
<
Vehicles for USA>
Brake warning light
ABS warning light
ABS warning display
Stop light
switch
Brake warning display
Brake warning light
Wheel speed sensor
Data link connector
Hydraulic unit,
ABS control unit (ABS-ECU)
Wheel speed sensor
Magnetic encoder
for wheel speed
detection
Magnetic encoder for wheel speed detection
To Next Page
