ACTIVE CENTER DIFFERENTIAL (ACD)
M2000000800034
The ACD is the system to improve acceleration per-
formance and straightforward driving ability by con-
trolling the limitation force and driving force
distribution of the center differential.
AWC-ECU performs a calculation based on the infor-
mation from ECU, sensors, and switches. Then,
based on the calculation value, it appropriately oper
-
ates the hydraulic unit (for ACD) to control in
response to the driver's operations and vehicle
behaviours.

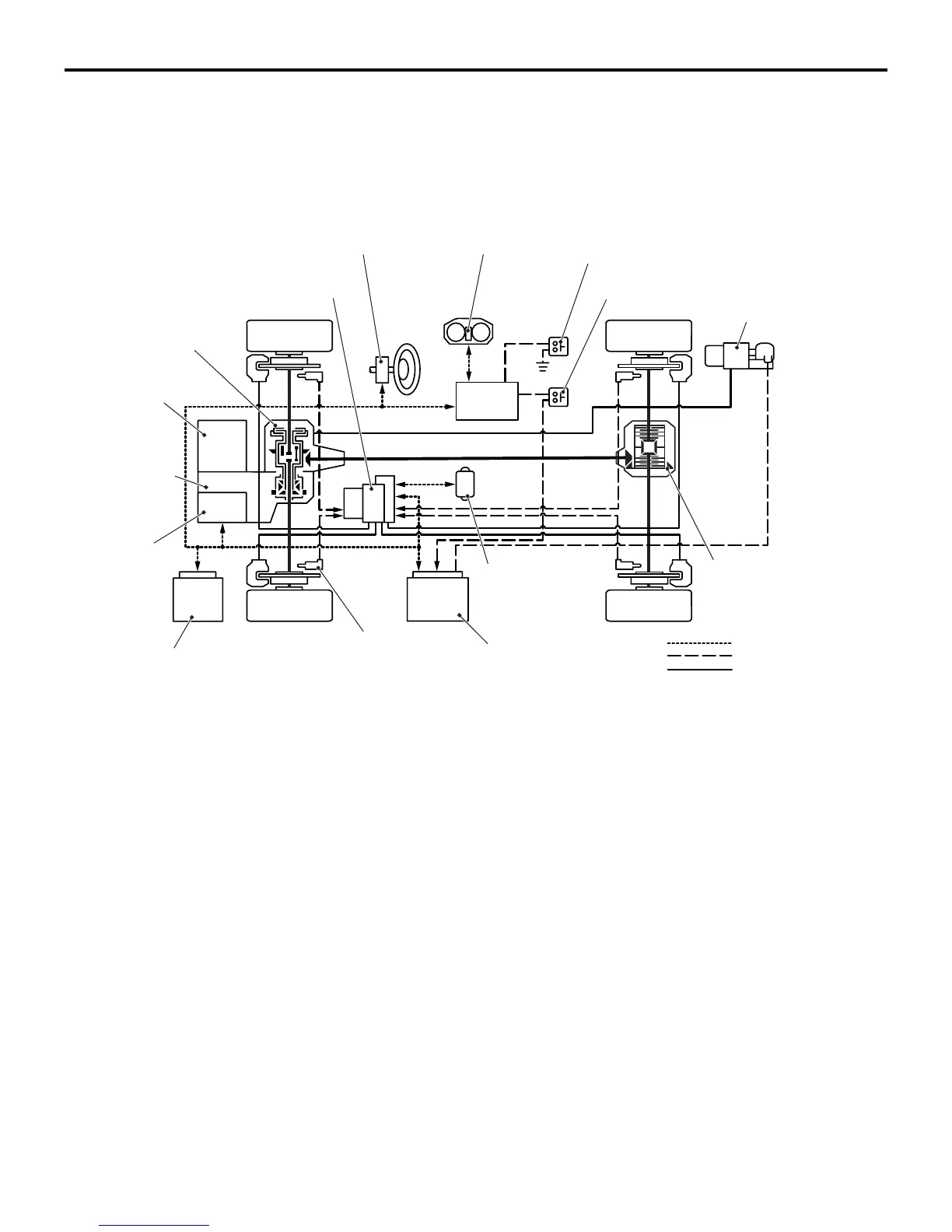

AC800672
AC
Mechanical type LSD
Hydraulic unit (For ACD)
Wheel speed sensor
AWC switch
ASC OFF switch
Multi information display
Steering wheel sensor
ASC-ECU
ACD transfer
Engine
Transmission
TC-SST-ECU
Engine-ECU
AWC-ECU
ETACS-
ECU
G and yaw rate sensor
CAN bus communication lines
Electric wiring
Hydraulic piping
