Mitsubishi AL-10MR-A User Manual

5
2. How to Wire Your Alpha’s Power Supply, Inputs and Outputs
2.1. 100V AC - 240V AC Power Supply, Inputs and Outputs

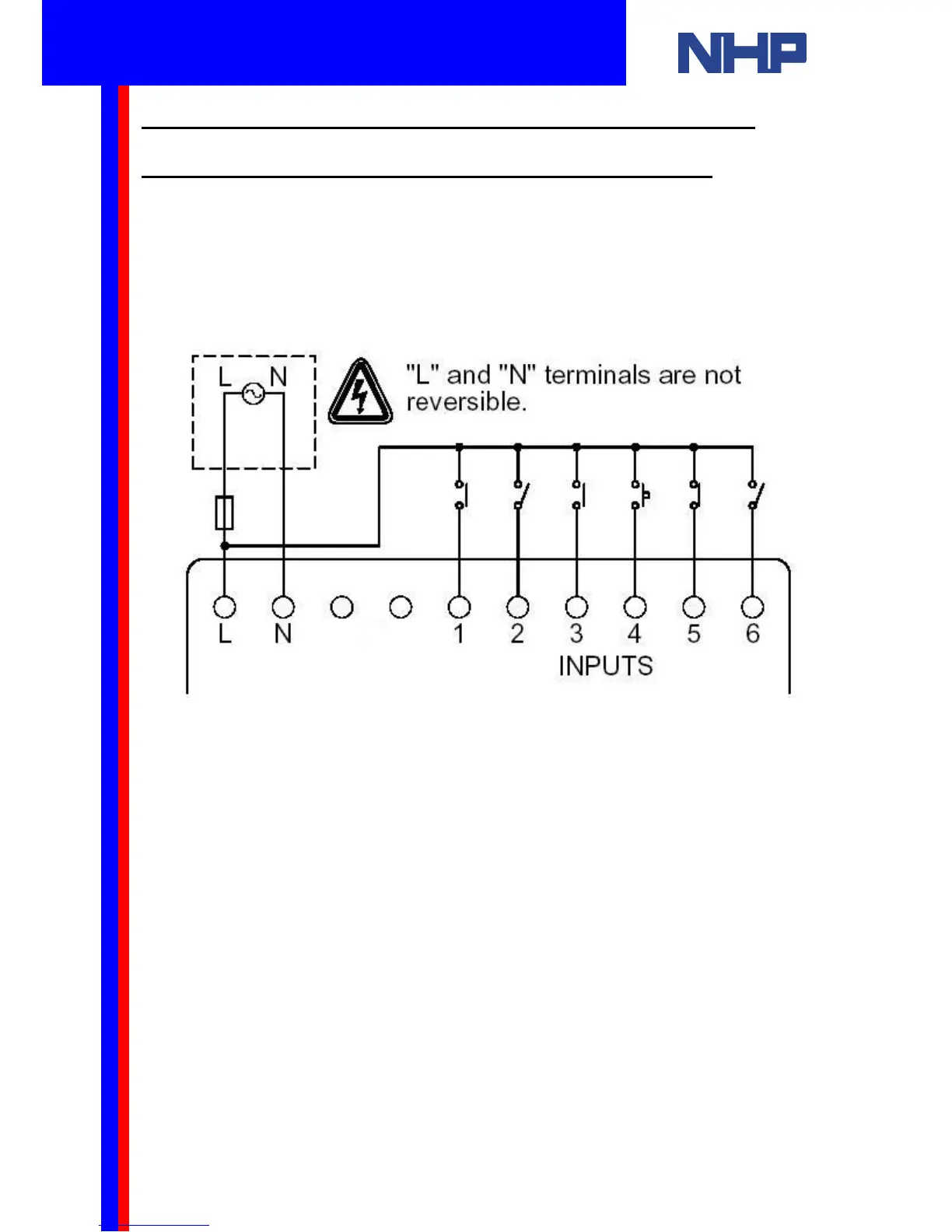

When wiring AC supplies the “Live” (Active) cable should be connected to the “L” terminal and
the “Neutral” cable should be connected to the “N” terminal. Do NOT connect the “Live” wire
to the “N” terminal. Take care to follow this diagram when wiring the inputs of a 240V AC
Alpha. Inputs must be 100-240V AC.
These models cannot accept DC inputs. Also, these
models cannot accept analog inputs.
Q u i c k S t a r t G u i d e
Mitsubishi Alpha / Alpha2
Programmable Controller
