Mitsubishi AL-10MR-A User Manual

7
DC
Power
Supply
Switched
Devices
AC Power
Supply
Switched
Devices

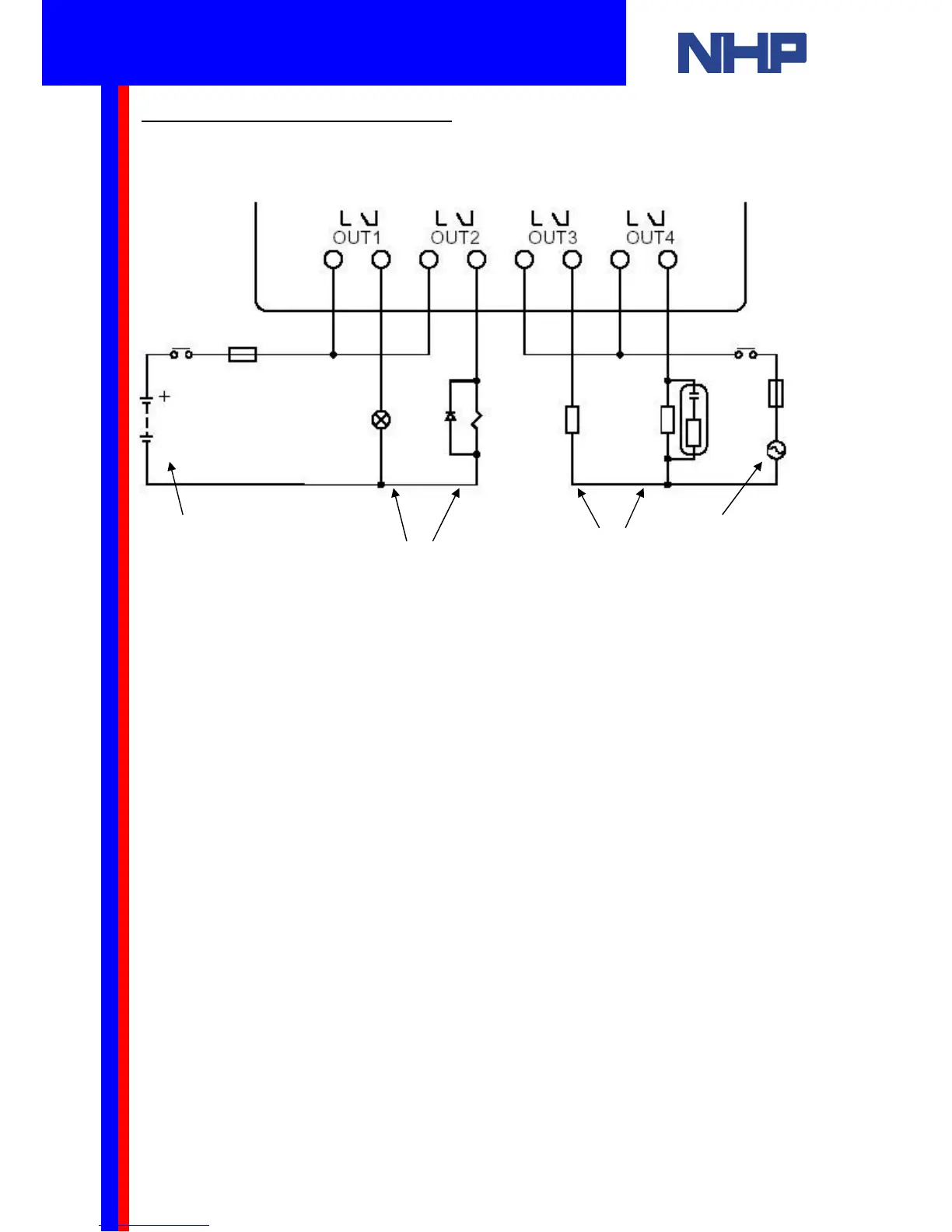

2.3 Wiring the Output Terminals
The Mitsubishi Alpha and Alpha2 controllers use relay type outputs (these can be used for
switching AC or DC). Follow this diagram when wiring outputs to your Alpha.
Note: Please check your manual for the current rating and maximum number of
switching cycles. Typically, do not exceed 2A/point and 100,000 cycles at 2A.
Q u i c k S t a r t G u i d e
Mitsubishi Alpha / Alpha2
Programmable Controller

Mitsubishi AL-10MR-A Specifications

General

Brand	Mitsubishi
Model	AL-10MR-A
Category	Controller
Language	English
