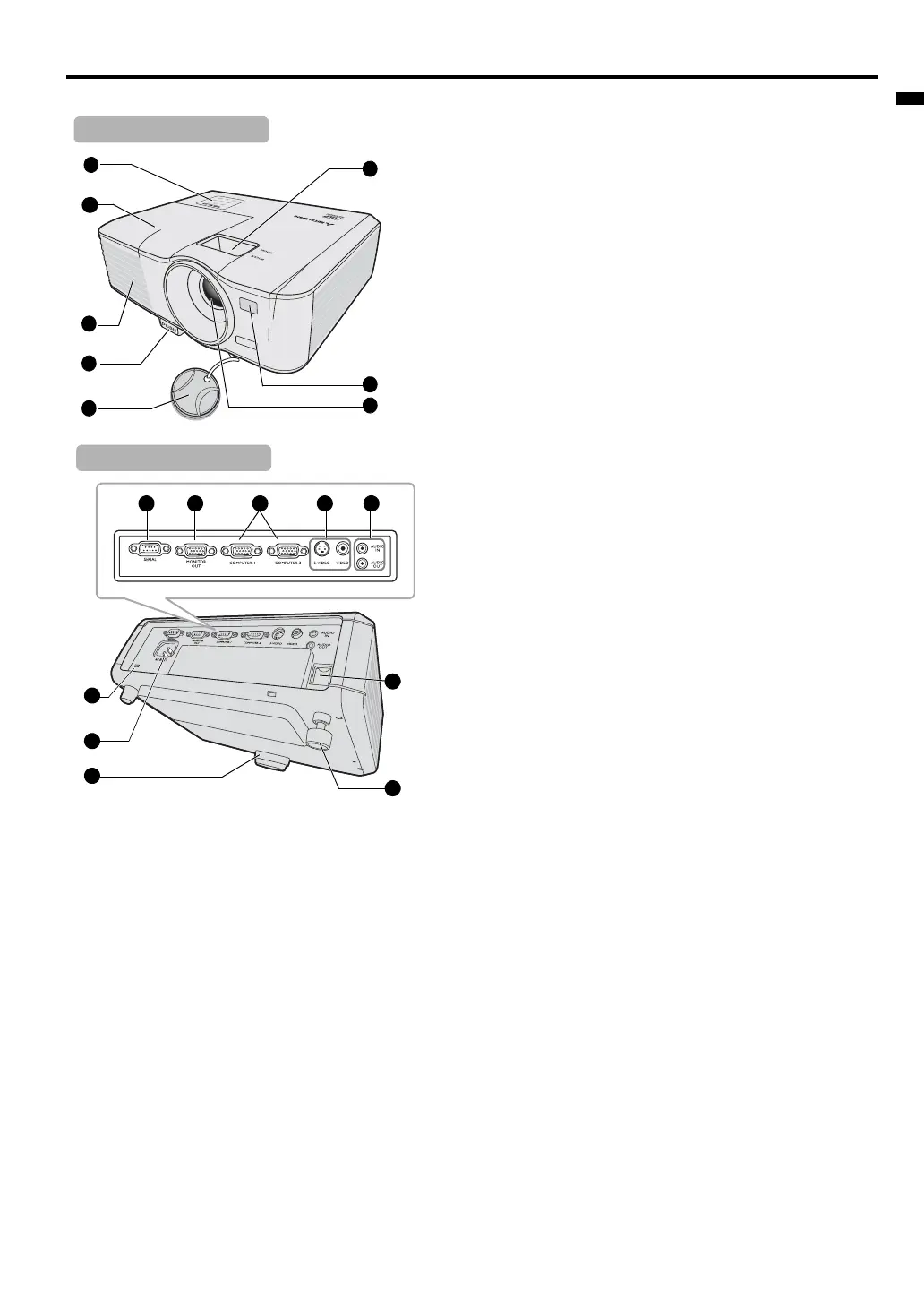

Projector exterior view
1. External control panel
(See "Projector" on page 8 for details.)
2. Lamp cover
3. Vent (heated air exhaust)
4. Quick-release button
5. Lens cover
6. Focus ring and Zoom ring
7. Front IR remote sensor
8. Projection lens
9. Serial control port
10. RGB signal output socket
11. RGB (PC)/Component Video (YPbPr/ YCbCr) signal
input socket x 2
12. S-Video input socket
Video input socket
13. Audio input jack
Audio output jack
14. Kensington lock
15. AC power cord inlet
16. Quick-release foot
17. Security bar
18. Rear adjuster foot
Kensington Lock
This projector has a Kensington Security Standard connector
for use with Kensington MicroSaver Security System.
Refer to the information that came with the Kensington System
for instructions on how to use it to secure the projector. Please
contact Kensington Technology Group below.
Kensington Technology Group
2855 Campus Drive
San Mateo, CA 94403, U.S.A.
Phone: +1- (650)572-2700 Fax: +1- (650)572-9675
Rear/lower side
13
17
1211
10
9
16
14
15
18
