EN-7

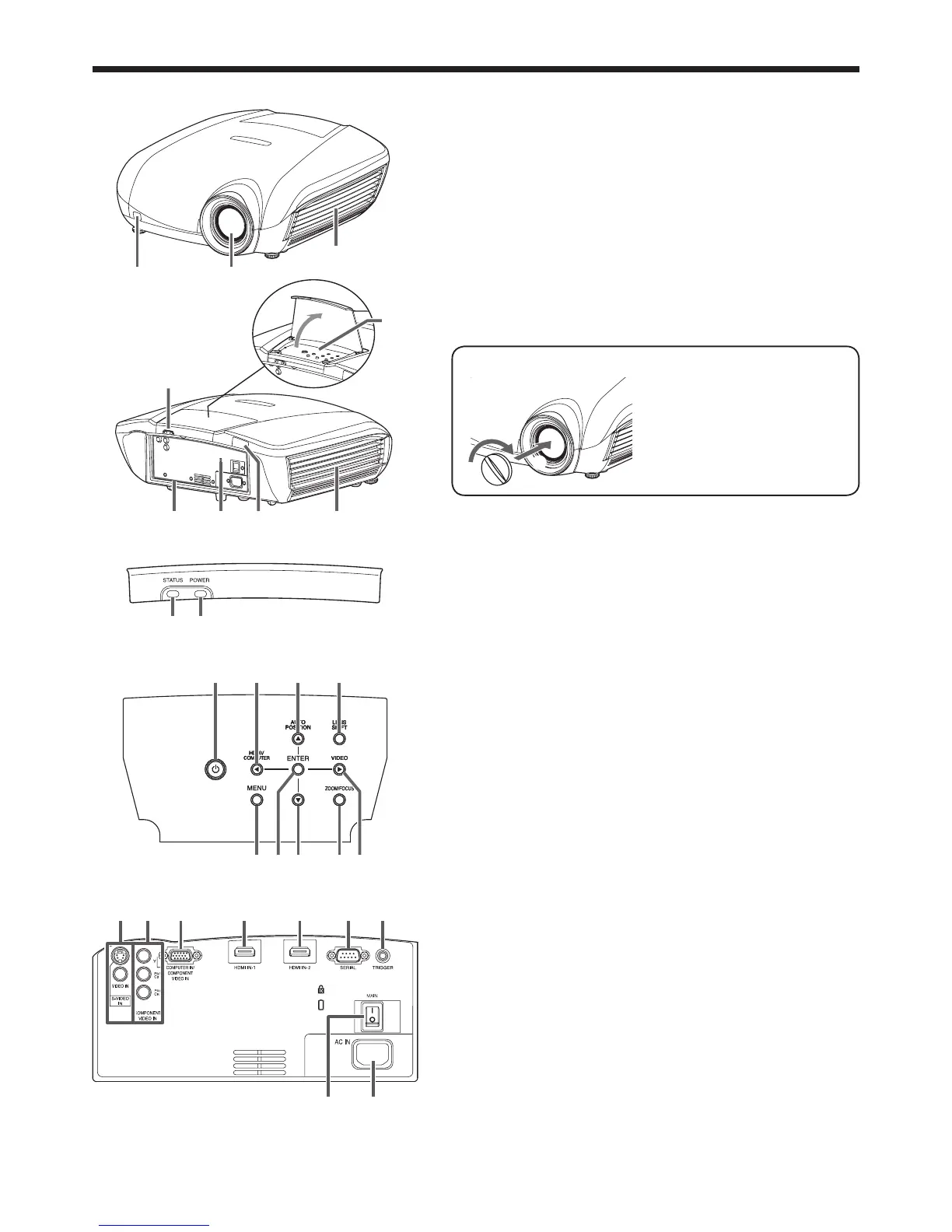

Overview
VIDEO IN and S-VIDEO IN terminals1
COMPONENT VIDEO IN terminals2
COMPUTER IN/COMPONENT VIDEO IN terminal (mini 3
D-SUB 15-pin)
HDMI IN-1 terminal (HDMI 19-pin)4
HDMI IN-2 terminal (HDMI 19-pin)5
SERIAL terminal (D-SUB 9-pin)6
Used for projector control by computer. Contact your •
dealer for details.
TRIGGER terminal7
Used for the optional electric screen.•
Main power switch8
O: OFF I: ON
Power jack9
POWER button1
HDMI/COMPUTER/2 t button
AUTO POSITION/3 p button
LENS SHIFT button4
MENU button5
ENTER button6
q7 button
ZOOM/FOCUS button8
VIDEO/9 u button
Remote control sensor (front)1
Lens2
Right side panel (air inlet grille/filter)3
Indicator area4
Control panel5
Terminal panel6
Kensington Security Lock Standard connector7
Remote control sensor (rear)8
Left side panel (air outlet grille/lamp cover)9
Terminal panel
Control panel
Preparing your projector (continued)
9
5
1
678
2
3
4
9
8
Indicator area
12
STATUS indicator1
POWER indicator2
Attaching the lens cap
To attach the supplied lens
cap, push it into the lens
section of the projector ()
and then turn it clockwise ().
(For removal, turn it
counterclockwise.)
