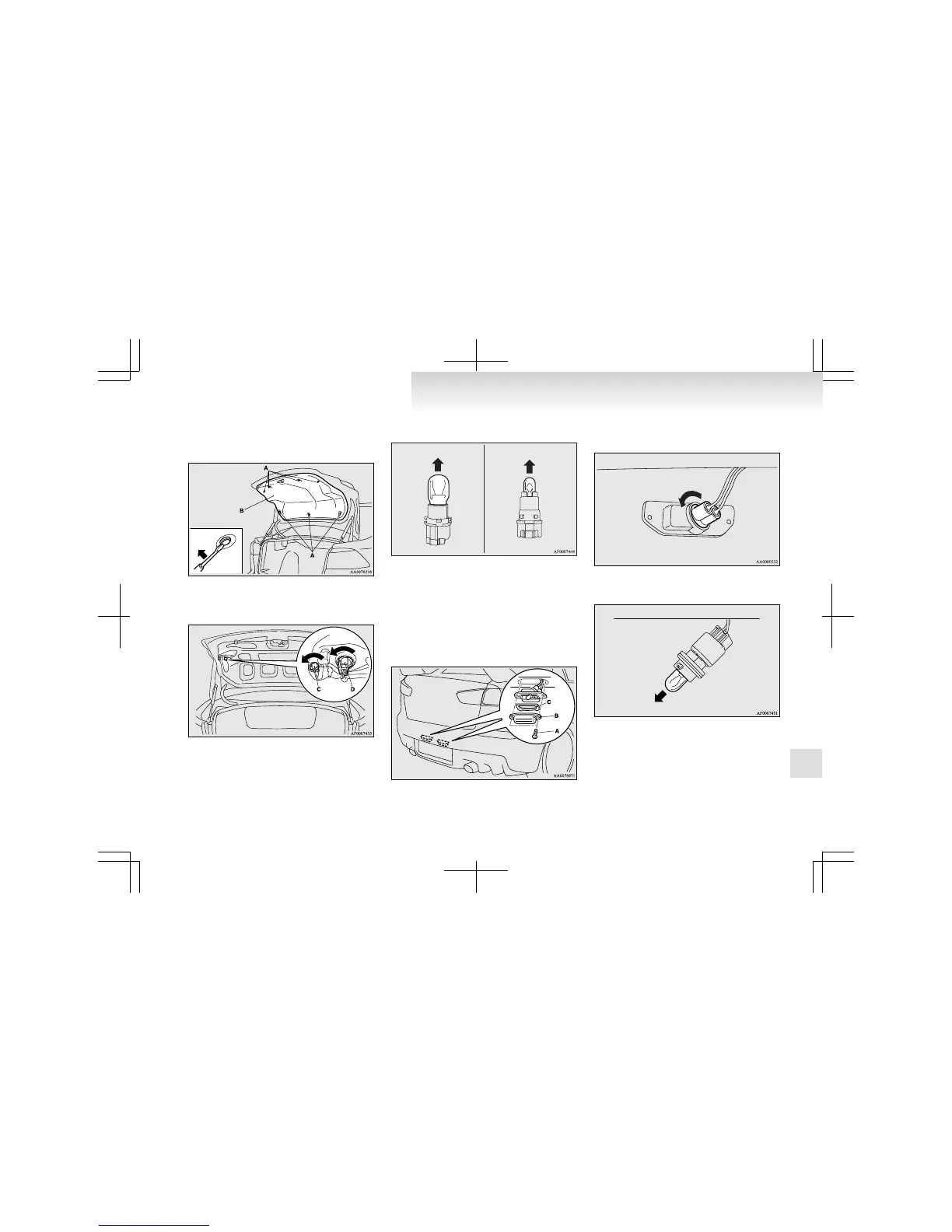

Remove the clips (A) by prying with a
straight blade (or minus) screwdriver, and re-
move the cover (B).
2. Remove the socket and bulb assemblies by
turning them anticlockwise.
C- Tail lamp
D- Rear fog lamp (driver’s side)
Reversing lamp (passenger’s side)
3. Remove the bulb by pulling it out.
4. To
install the bulb, perform the removal
steps in reverse.
Licence plate lamps
E01004600897
1. Remove
the screws (A) from the licence
plate lamp lens (B). Then, remove the lens
and gasket (C), and withdraw the bulb.
2. Remove the socket and bulb assembly togeth-
er by turning it anticlockwise.
3. Remove the bulb by pulling it out.
4. To
install the bulb, perform the removal
steps in reverse.
Front room & map lamps
E01004800091
When replacing the bulb, put the front room & map
lamps switch into the “OFF” position.
Maintenance
8-27
8
