OPERATION

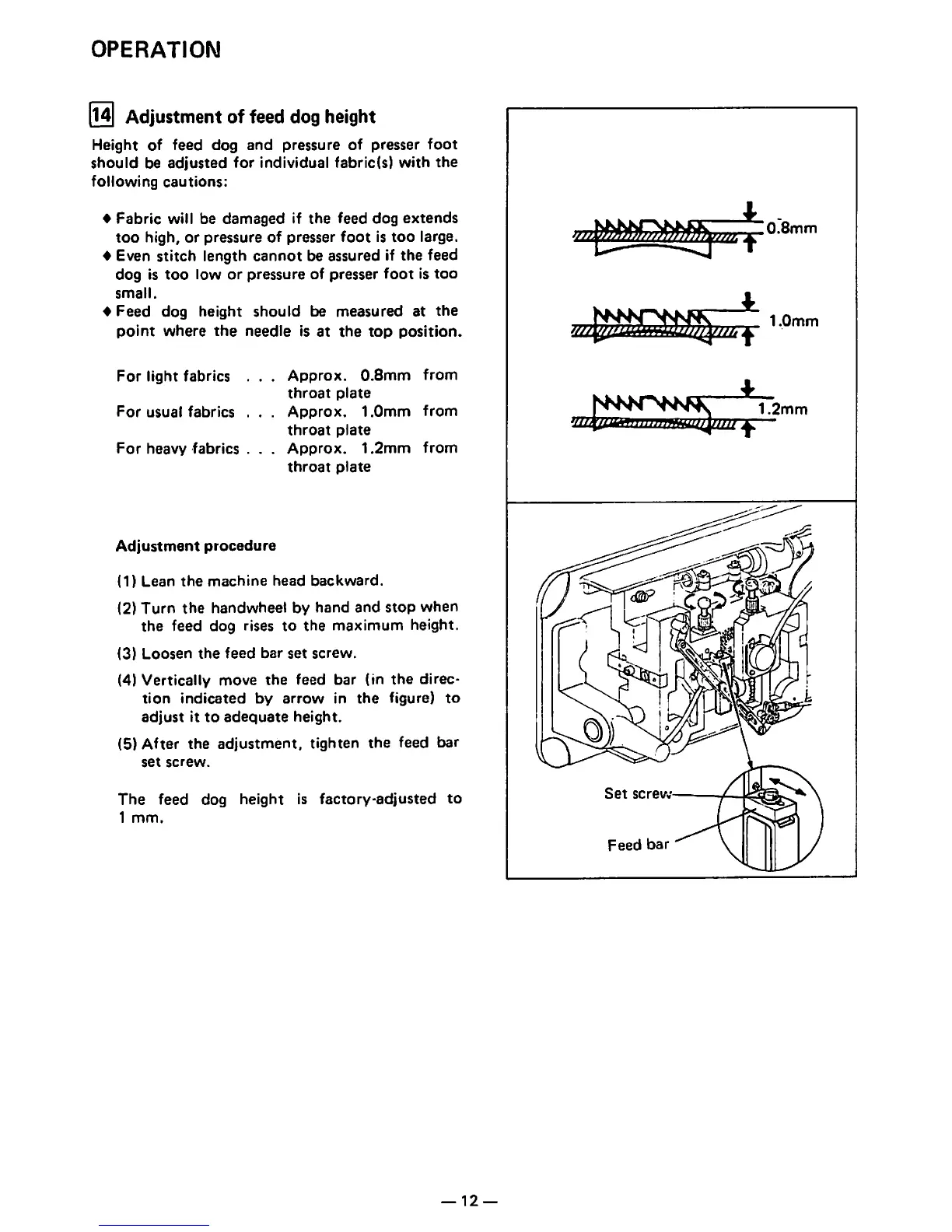

55 Adjustment of feed dog height
Height of feed dog and pressure of presser foot
should be adjusted for individual fabric(s) with the
following cautions:
♦ Fabric will be damaged if the feed dog extends
too high, or pressure of presser foot is too large.
♦ Even stitch length cannot be assured if the feed
dog is too low or pressure of presser foot is too
small.
♦ Feed dog height should be measured at the
point where the needle is at the top position.
For light fabrics
For usual fabrics .
For heavy fabrics .
Approx. 0.8mm from
throat plate
Approx. 1.0mm from
throat plate
Approx. 1.2mm from
throat plate
Adjustment procedure
(1) Lean the machine head backward.
(2) Turn the handwheel by hand and stop when
the feed dog rises to the maximum height.
(3) Loosen the feed bar set screw.
(4) Vertically move the feed bar (in the direc
tion indicated by arrow in the figure) to
adjust it to adequate height.
(5) After the adjustment, tighten the feed bar
set screw.
The feed dog height is factory-adjusted to
1 mm.
— 12 —
2ZZ
22ZZr
! 0.8mm
TSi
1.0mm
1.2mm
Set screw
Feed bar
