Mitsubishi MUH-A18WV User Manual

11

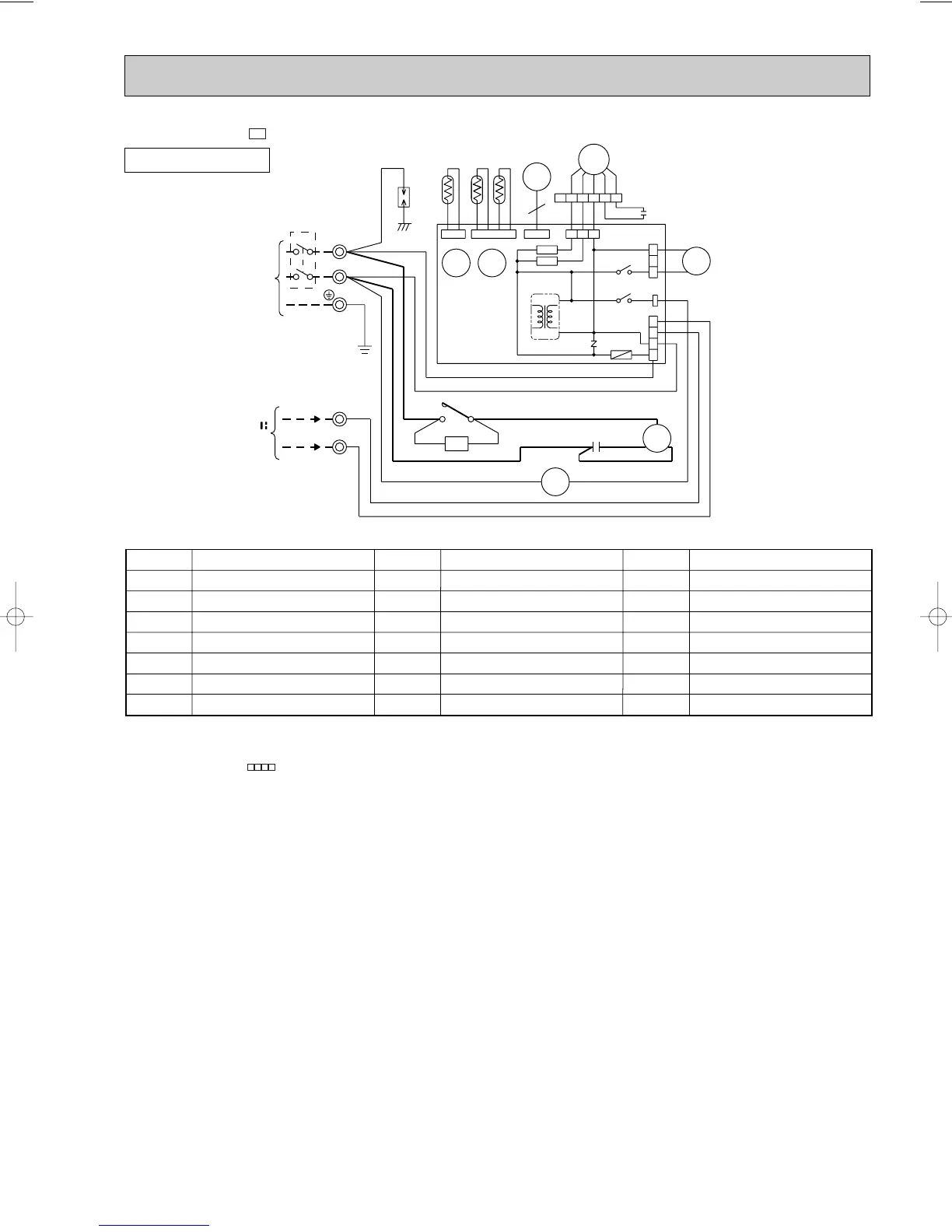

OUTDOOR UNIT
DEICER
PC BOARD
T61
YLW
BLK
WHT
RED
BRN
7
1
CN730
YLW
BLK WHT
CIRCUIT BREAKER
CN721
1
52C
2
CZ
WHTWHT
RED
C2
ORN
A1 A2
BLU
52C
DSAR
TO INDOOR UNIT CONNECTING
12V
WHT
C1
BLK
S
C
R
MC
RED
BLU
NR61
3
5
BLU
TB1
L
N
TB2
3
N
PE
GRN/YLW
POWER SUPPLY
~ /N 230V 50Hz
CN661
RT61
X52X62
X62
1
2
3
21S4
BLU
BRN
BLU
BRN
SR62
SR61
COM
NO
F61
TAB52
X52
CN711
CN724
CN662
6
MF
RT62RT63
1
2
3
21
ORN RED
3456
LEV
NO
COM
SYMBOL
TB1
TB2
T61
X52
X62
21S4
52C
SYMBOL
MF
NR61
RT61
RT62
RT63
SR61
SR62
SYMBOL
CZ
C1
C2
DSAR
F61
LEV
MC
NAME
NAME NAME
CZ SURGE ABSRBER
COMPRESSOR CAPACITOR
OUTDOOR FAN CAPACITOR
SURGE ABSORBER
FUSE(3.15A)
EXPANSION VALVE COIL
COMPRESSOR (INNER PROTECTOR)
OUTDOOR FAN MOTOR (INNER PROTECTOR)
VARISTOR
DEFROST THERMISTOR
DISCHARGE TEMPERATURE THERMISTOR
AMBIENT TEMPERATURE THERMISTOR
SOLID STATE RELAY
SOLID STATE RELAY
TERMINAL BLOCK
TERMINAL BLOCK
TRANSFORMER
CONTACTOR
R.V. COIL RELAY
R.V. COIL
COMPRESSOR CONTACTOR
NOTE 1. Use copper conductors only (For field wiring).
2. Since the indoor and outdoor unit connecting wires have polarity, connect them according to the numbers (3,N).
3. Symbols below indicate.
/: Terminal block, : Connector
SG79J882H01
MUH-A30WV -
E1
MODEL WIRING DIAGRAM
OB322-1.qxp 03.11.13 4:06 PM Page 11
