GENERAL -
How to Use Troubleshooting/Inspection Service Points
00-7
4. INSPECTION CHART FOR DIAGNOSIS CODES
5. INSPECTION PROCEDURE FOR DIAGNOSIS CODES
Indicates the inspection procedures corresponding to each diagnosis code. (Refer to P.00-10 for how
to use the inspection procedures.)
6. INSPECTION CHART FOR TROUBLE SYMPTOMS
If there are trouble symptoms even though the results of inspection using the MUT-II show that all
diagnosis codes are normal, inspection procedures for each trouble symptom will be found by means
of this chart.
7. INSPECTION PROCEDURE FOR TROUBLE SYMPTOM
Indicates the inspection procedures corresponding to each trouble symptoms classified in the Inspection
Chart for Trouble Symptoms. (Refer to P.00-10 for how to use the inspection procedures.)
8. SERVICE DATA REFERENCE TABLE
Inspection items and normal judgement values have been provided in this chart as reference information.
9. CHECK AT ECU TERMINALS
Terminal numbers for the ECU connectors, inspection items and standard values have been provided
in this chart as reference information.
10. INSPECTION PROCEDURES USING AN OSCILLOSCOPE
When there are inspection procedures using an oscilloscope, these are listed here.
DIAGNOSIS FUNCTION
METHOD OF READING DIAGNOSIS CODES
WHEN USING THE MUT-
II

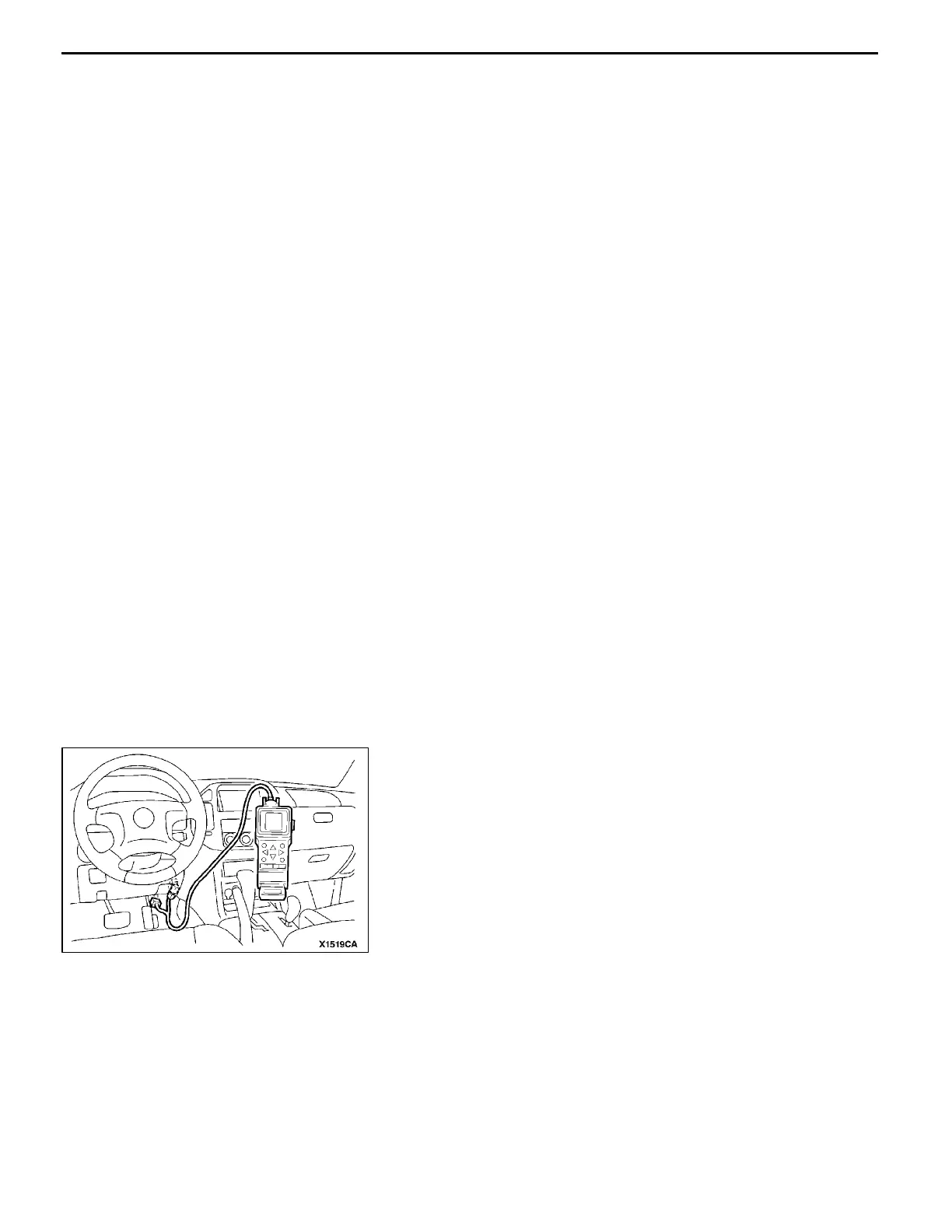

Connect the MUT-II to the diagnosis connector and take a
reading of the diagnosis codes.
Caution
Turn the ignition switch to “LOCK(OFF)” position before
connecting or disconnecting the MUT-
II
.
