HOW TO OPERATE (OPTION PAC-204RC)

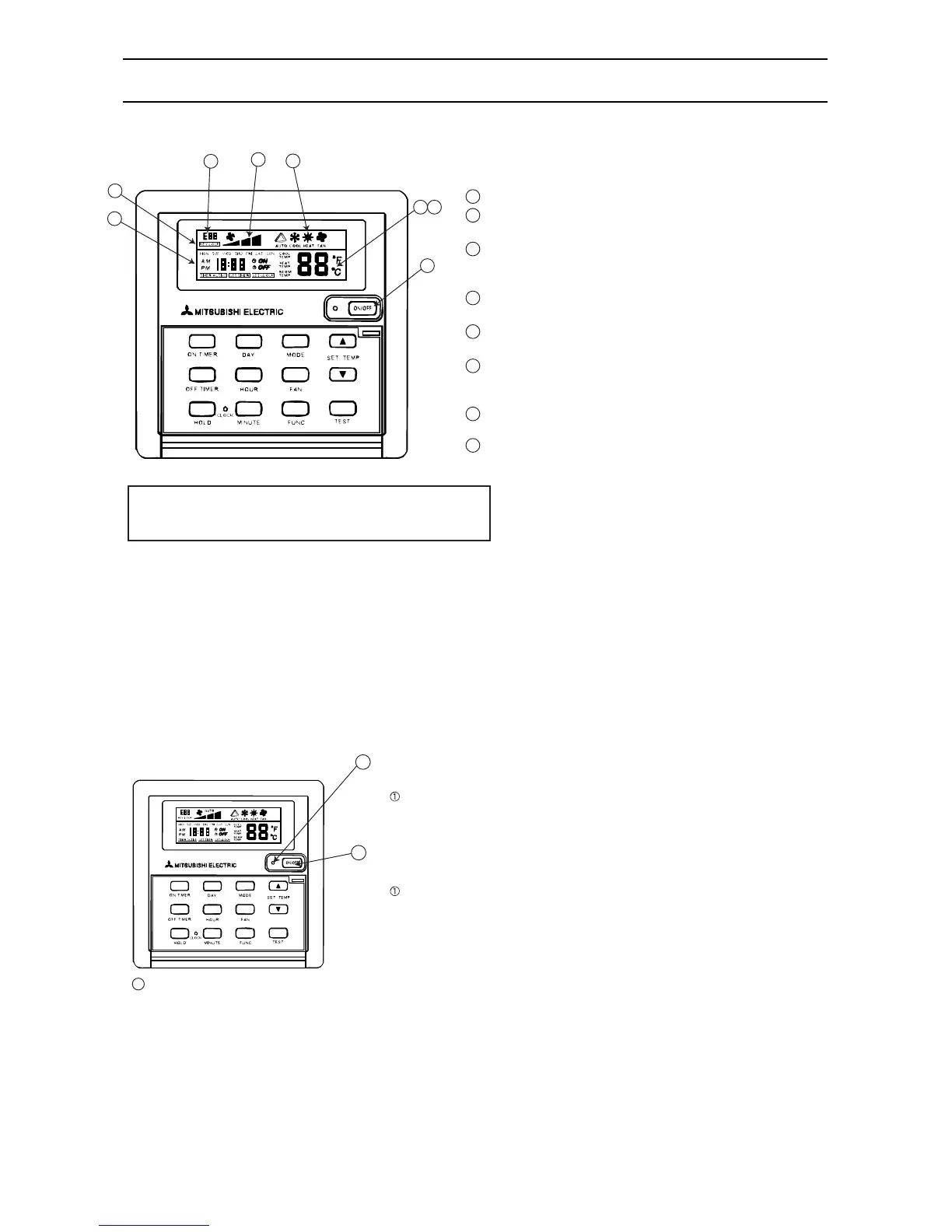

For purposes of explanation, all the displays on this page are shown
in their lit condition. This configuration does not occur in the actual
unit.
Operation mode
Displays the status of operation.
[Checking] Display
This displays indication when some abnormality
occurs in the unit.
[Set temperature] Display
Displays the set temperature.
[Operation] Lamp
Lights up during operation, goes off during stop.
[Fan speed] Display
This displays indication High-speed or Low-speed.
[Key lock] Display
This display indication during key lock function active.
[Room temperature] Display
Displays the temperature of the air sucked in
during operation.
A
B
C
D
E
F
G
H
[Current/start/ending time] Display
B
C
A
H
G
D
E
F
Display section
Before starting operation
* Make sure that the power supply is turned ON before use. (Keep the power supply turned ON at all times
when the air conditioner is in use. Use of the unit without power can result in compressor failure.)
Warning:
Check and confirm the power circuit before use. For the contents, refer to the previously described chapter
[Crucial points to be observedfor safety].
1-1 ON / OFF
1
A
Operation lamp
A
Start an operation
Stop an operation
Caution:
Press the [ON/OFF] button
Operation lamp lights up and operation starts.
Press the [ON/OFF] button again
Operation lamp goes off and operation stops.
* Once the buttons have been set, pressing of the [ON/OFF] button
only can repeat the same operation thereafter.
* During operation, the operation lamp above the [ON/OFF] button
lights up.
Even if the operation button is pressed immediately after the operation is once stopped, operation is not
restarted for about 3 minutes. This function protects the machine. It automatically starts operation after the
lapse of approximately 3 minutes.
