18
*Refer to the Installation Manual for function settings.
By setting the Mode No. 23 in the Function Table in section 9-1 to 2 and using CN4Y on the optional parts PAC-YU25HT, the
following patterns of fan control will become possible when [DEFROST] or [ERROR] is displayed.
Fan control patterns when [DEFROST] or [ERROR] is displayed
*1 Fan speed setting
* If a heater is installed in the duct, do not use CN4Y. By doing so, the fan will turn off when the heater is on,
which may result in fire.
Heater is installed in the duct. No heater is installed in the duct.
Use of CN4Y (PAC-YU25HT)
Heater is off.
Heater is on.
Unused*
Fan ON*1
Fan ON*1
Fan OFF
Fan OFF
Used
Setting
Mode no. Setting
Mode
Fan control
Very low
Heating Thermo-OFF [DEFROST] or [ERROR]
STOP
Remote controller setting
Remote controller setting
Remote controller setting
Very low 25
25
25
1
2
3
Initial setting
-
-
9-2. FAN CONTROL
The following section describes installation of the External Heater Adapter that connects to PEAD-A AA4
series indoor unit. This products is the special wiring parts to drive an electric heater with the air conditioner.
(1) Parts list
Check that the following parts are included in the package.
1) External output cable (with a yellow connector).............................2 in total
Two types of cables with different connectors are included.
2) Panel heater connector.................................................................. 3 in total
White: 1
Green: 2 (2 types)
(2) Connection to the indoor unit
Use the cables that fit the connectors on the indoor unit control board.
1) External output cable (with a yellow connector)
This cable is used to connect a relay circuit for an interlocked operation with either an electric or a panel heater.
Connect the cable to CN24 on the indoor unit control board.
2) Panel heater connector (with a white connector)
This connector is used to perform an interlocked operation with a panel heater. Depending on the indoor unit
control board specification, connect the cable to CN4Y as appropriate

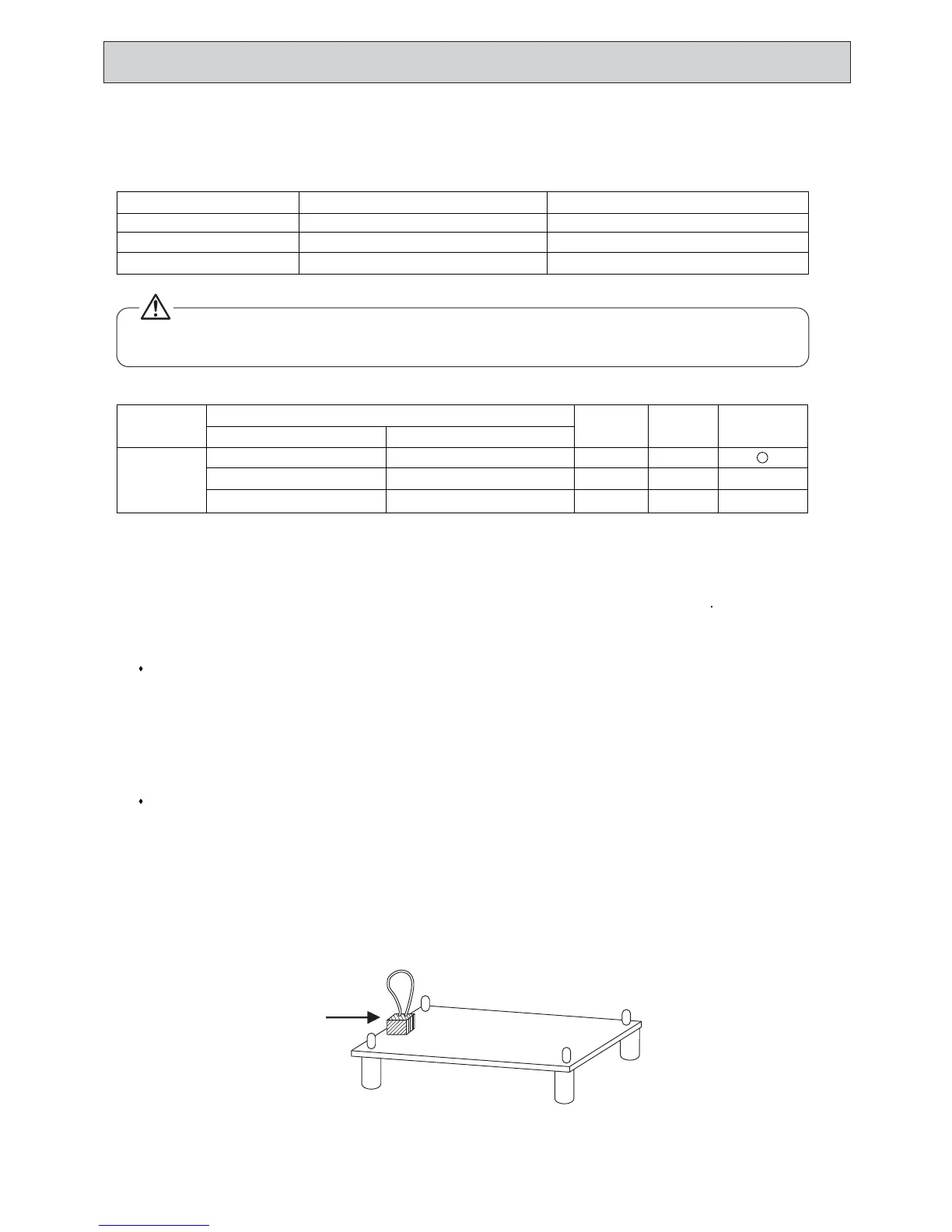

CN4Y for FAN control
(PAC-YU25HT)
<Image>
9-3. PAC-YU25HT (OPTIONAL PARTS) INSTALLATION
