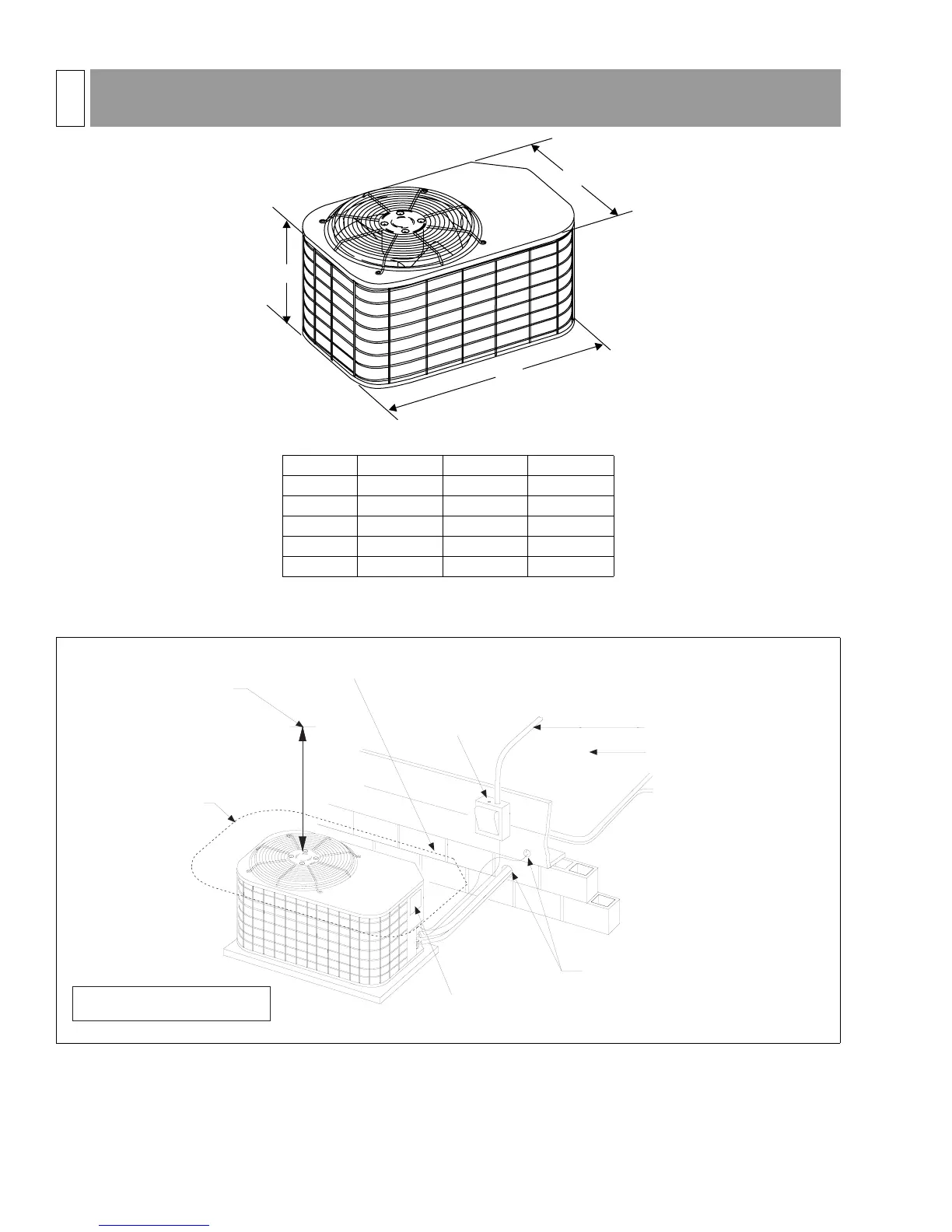

TYPICAL INSTALLATION
Model A B C
PUG18AYB 17" (432 mm) 35" (889 mm) 23" (584 mm)
PUG24AYB 17" (432 mm) 35" (889 mm) 23" (584 mm)
PUG30AYB 19" (483 mm) 35" (889 mm) 23" (584 mm)
PUG36AYB 19" (483 mm) 35" (889 mm) 23" (584 mm)
PUG42AYB 27” (686 mm) 37” (940 mm) 27” (686 mm)
C
B
A
MINIMUM 24” SERVICE ACCESS
CLEARANCE ON ONE SIDE
60” OVERHEAD
CLEARANCE
10” CLEARANCE
COIL AREA
WEATHERPROOF
DISCONNECT
SWITCH
NEC CLASS 1 WIRING
NEC CLASS 2 WIRING
TO INDOOR COIL
SEAL OPENING(S) WITH
PERMAGUM OR EQUIVALENT
CONTROL ACCESS PANEL
NOTE: ALL OUTDOOR WIRING
MUST BE WEATHERPROOF.
DIMENSIONS AND CLEARANCES
5
