35

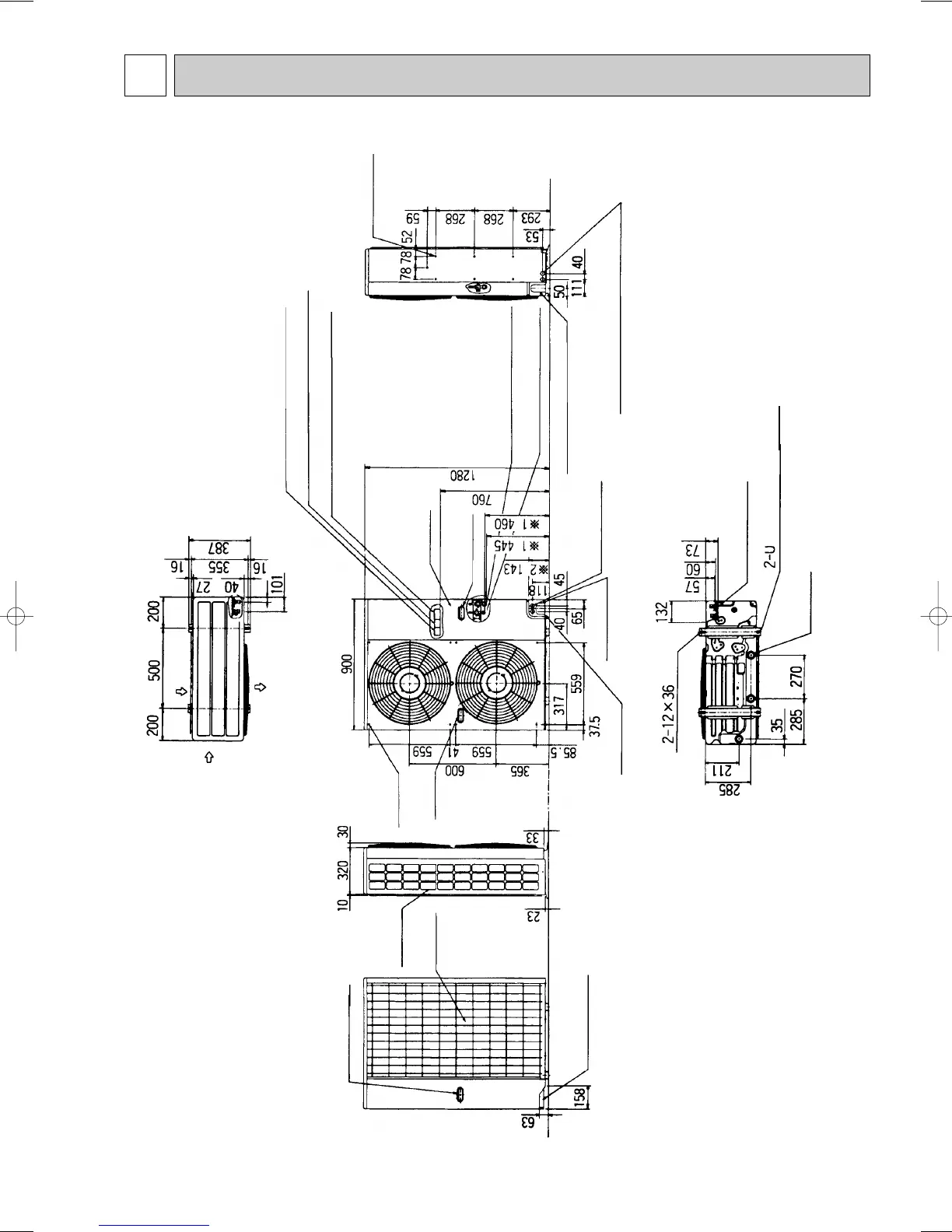

5 OUTLINES AND DIMENSIONS
unit : mm
OUTDOOR UNITS
PUMY-71VM
PUMY-71VM1
PUMY-71VM2
✻1...Indicates the dimensions of the cutoff valve connector.
✻2...Make sure that the panel can be easily removed for maintenance
when a piping cover is used for aesthetic reasons.
Air intake
Knock out hole
for front piping
Air outlet
Air intake
Terminal block for Power source
Terminal block for central control
Terminal block for transmission
Knock out hole for right piping
Gas refrigerant-pipe
connection {15.88(5/8F)
Handing for moving
Service panel
Liquid refrigerant-pipe
connection {9.52(3/8F)
Knock out holes for
power line 2-{27
Knock out holes for power line 2-{27
Optional parts
(base branching
pipe) installation
hole
Bottom piping hole
Piping cover
shaped notched holes
(standard bolt M10)
Drain hole
(3-{33 hole)
(standard bolt M10)
Oval holes
Optional parts
installation hole
Rear air intake
Handle for
moving
Handle for moving
Rear piping hole
Side air intake
OC183E--2.qxp 10.5.6 0:46 PM Page 35
