3 - 13 3 - 13
MELSEC-Q

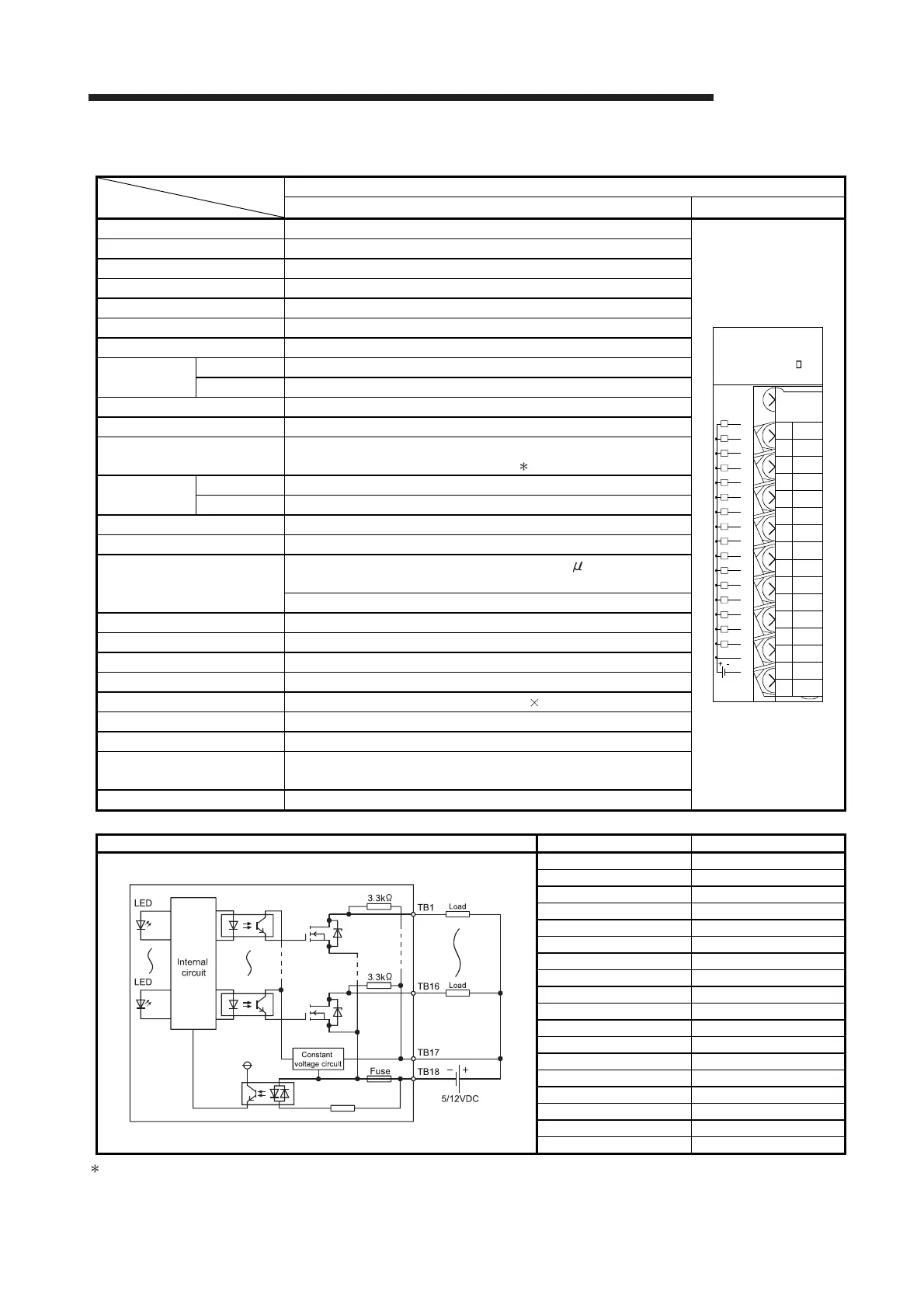

3 OUTPUT MODULE SPECIFICATIONS
3.12 QY70 Transistor Output Module (Sink Type)
Type
Specifications
Transistor output module (Sink type)
QY70 Appearance
Number of output points 16 points
Isolation method Photocoupler
Rated load voltage 5/12VDC (+25/-10%)
Maximum load current 16mA/point, 256mA/common
Maximum inrush current 40mA, 10ms or less
Output voltage at OFF VOH: 3.5VDC (VCC=5VDC, IOH=0.4mA)
Maximum voltage drop at ON VOL: 0.3VDC
Response time
OFF to ON 0.5ms or less
ON to OFF 0.5ms or less (resistive load)
Surge suppressor None
Fuse 1.6A (unchangeable) (fuse capacity: 50A)
Fuse blown indicator
Provided (When a fuse blows, LED turns on and a signal is output to the
CPU module.) 1
External supply
power
Voltage 5 to 12VDC (+25/-10%) (ripple ratio within 5%)
Current MAX. 90mA (when 12VDC and all points are ON)
Dielectric withstand voltage 560VAC rms/3 cycles (altitude 2000m)
Insulation resistance 10MΩ or more by insulation resistance tester
Noise immunity
By noise simulator of 500Vp-p noise voltage, 1 s noise width
and 25 to 60Hz noise frequency
First transient noise IEC61000-4-4: 1kV
Protection degree IP2X
Common terminal arrangement 16 points/common (common terminal: TB18)
Number of occupied I/O points 16 points (I/O assignment is set as a 16-point output module.)
Operation indicator ON indication (LED)
External connections 18-point terminal block (M3 6 screws)
Applicable wire size 0.3 to 0.75mm
2
core (2.8mm OD max.)
Applicable crimping terminal R1.25-3 (Sleeved crimping terminals cannot be used.)
Internal current consumption
(5VDC)
95mA (TYP. all points ON)
(0.10A is shown on the rating plate of the module.)
Weight 0.14kg
External connection Terminal block No. Signal name
TB1 Y00
TB2 Y01
TB3 Y02
TB4 Y03
TB5 Y04
TB6 Y05
TB7 Y06
TB8 Y07
TB9 Y08
TB10 Y09
TB11 Y0A
TB12 Y0B
TB13 Y0C
TB14 Y0D
TB15 Y0E
TB16 Y0F
TB17 5/12VDC
TB18 COM
1: Fuse blown is not detected when the external power supply is shut off.
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
COM
QY70
5VDC
12VDC
16mA
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
FUSE
01234567
8 9ABCDEF
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
