10-1

Chapter 10 TRANSPORTATION

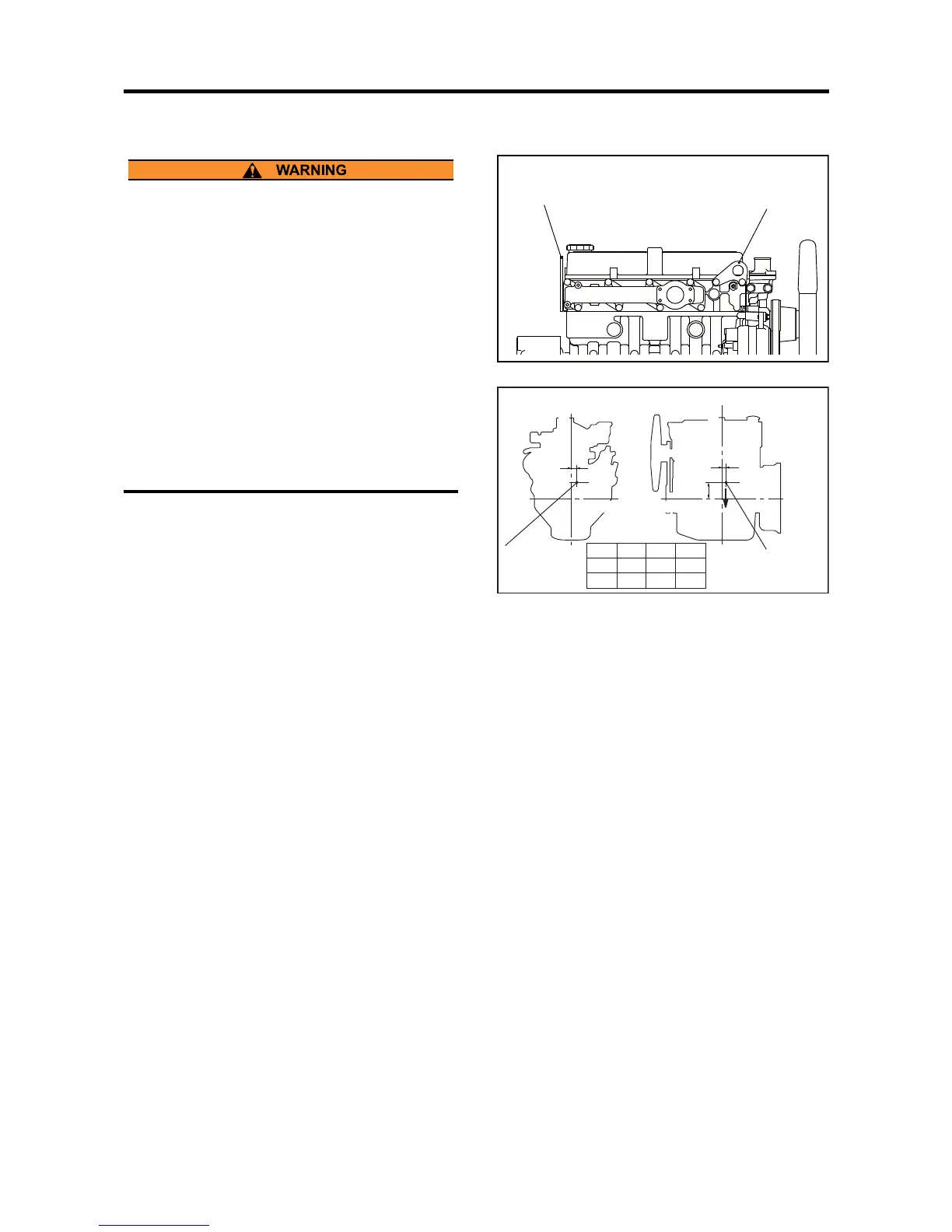

Lifting the engine

Fig. 10-1 Hangers

Fig. 10-2 Engine's center of gravity

(standard specification)

To lift the engine, use wire ropes, shackles and slings

capable of supporting the weight of the engine.

Attach the wire rope to the hangers provided on the

engine using a correct sling.

Keep the engine balanced during lifting by consider-

ing the engine's center of gravity.

Keep the angle formed by slings attached to hangers

within 60°. If the angle exceeds this limit, excessive

load could be imposed on the hangers and this could

damage the hangers and result in a serious accident.

Attach wire ropes to the hangers after removing the

pipe cover and the insulator near the hangers. To

prevent wire ropes from contacting the engine, use a

cloth or other soft padding.

Front hanger

Rear hanger

XZY

S4S 2 5 85

28 -34 117

S6S

Crankshaft center

Engine center

(mm)

The center

of gravity

The center

of gravity
