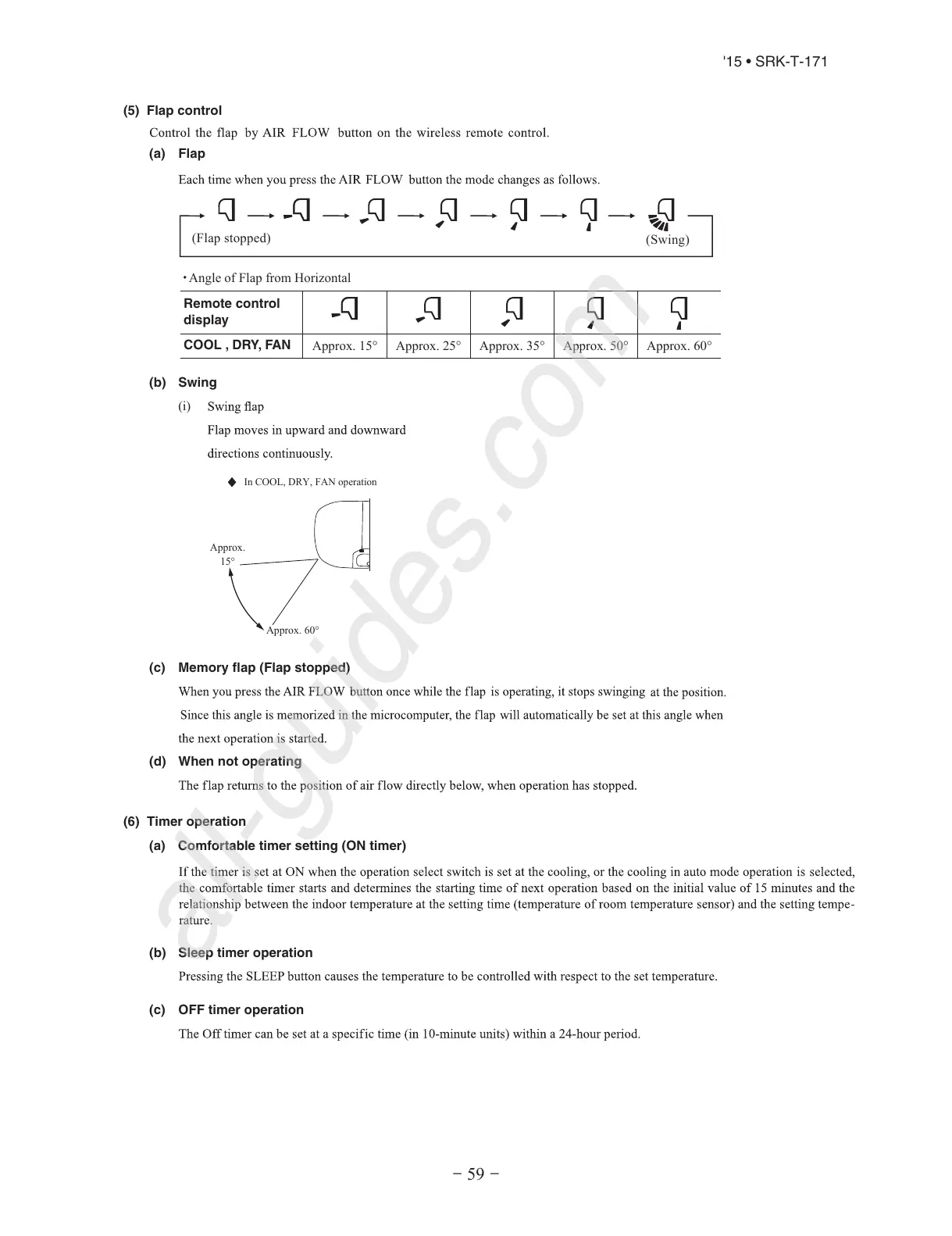

(5) Flap control

(a) Flap

(b) Swing
(i)
(c) Memory flap (Flap stopped)
(d) When not operating
COOL , DRY, FAN
Remote control
display
Approx. 15° Approx. 25° Approx. 35°
(Swing)
(Flap stopped)
Approx. 50° Approx. 60°

Angle of Flap from Horizontal
In COOL, DRY, FAN operation
Approx.
15°
Approx. 60°
(b) Sleep timer operation
(6) Timer operation
(a) Comfortable timer setting (ON timer)
(c) OFF timer operation
(5) Flap control

(a) Flap

(b) Swing
(i)
(c) Memory flap (Flap stopped)
(d) When not operating
COOL , DRY, FAN
Remote control
display
Approx. 15° Approx. 25° Approx. 35°
(Swing)
(Flap stopped)
Approx. 50° Approx. 60°

Angle of Flap from Horizontal
In COOL, DRY, FAN operation
Approx.
15°
Approx. 60°
(b) Sleep timer operation
(6) Timer operation
(a) Comfortable timer setting (ON timer)
(c) OFF timer operation
(5) Flap control
(6) Timer operation
