– 5 –

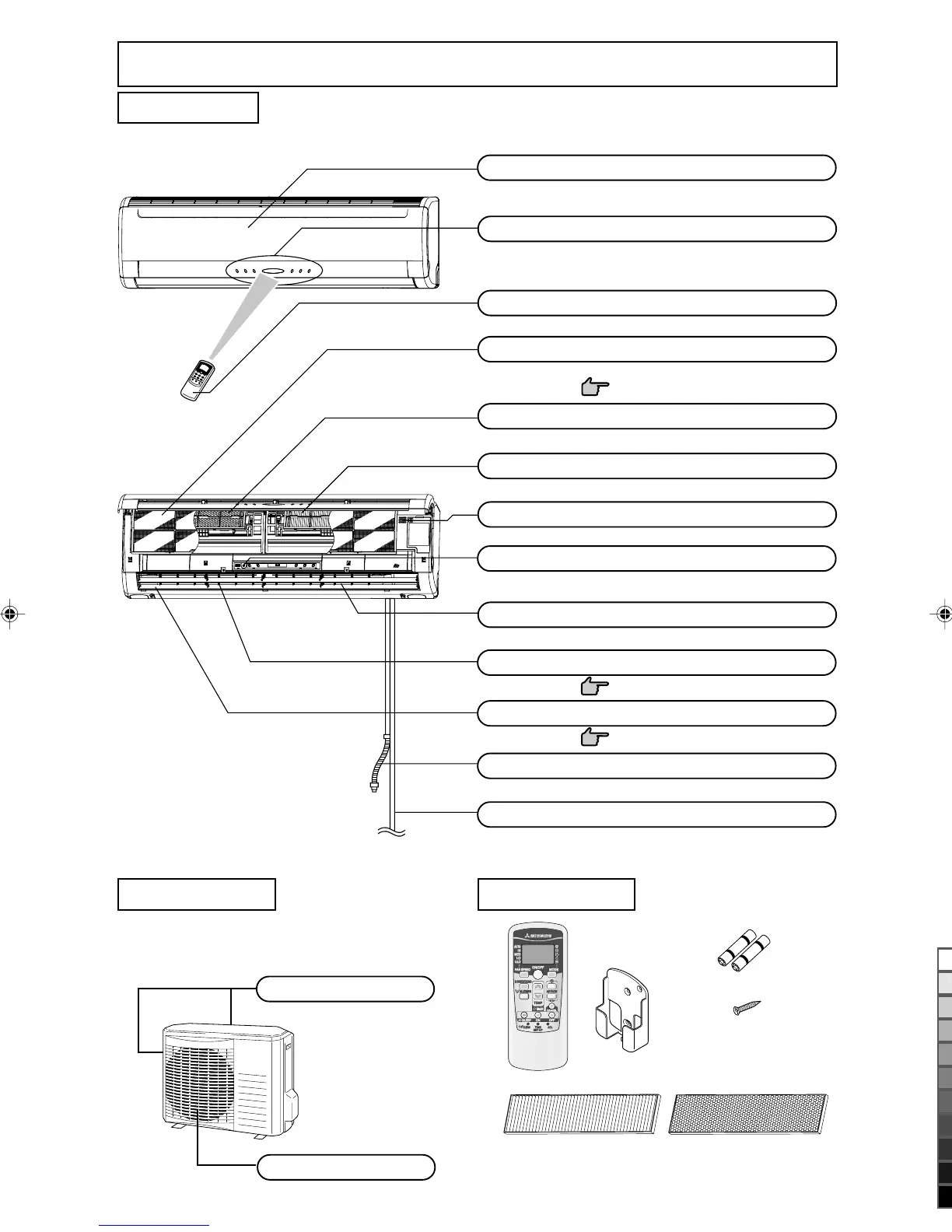

Name of each part and its function
INDOOR UNIT
OUTDOOR UNIT
SRC63ZE-S1
SRC71ZE-S1
Air outlet
Air inlet
(on side & rear surface)
Air inlet panel
Draws in the indoor air.
Unit indication section and remote control signal receiver
Photocatalytic washable deodorizing filter
Air filter
Removes dust or dirt from the inlet air.
Page 17
Wireless remote control
Drain hose
Drains water from the dehumidified air.
Left/right air flow adjustment fin
Page 10
Up/down air flow direction adjustment flap
Page 10
Air outlet
Air blows out of here.
Unit operation switch
Room temperature detector
Allergen clear filter
Accessories
Wireless remote control
Battery (R03×2)
Allergen clear filter
(Light orange)
Photocatalytic washable
deodorizing filter (Orange)
Wood screw (Quantity:2)
(for remote control holder mounting)
Wireless remote
control holder
Refrigerant piping connection electric flex
SRK63ZE-S1
SRK71ZE-S1
