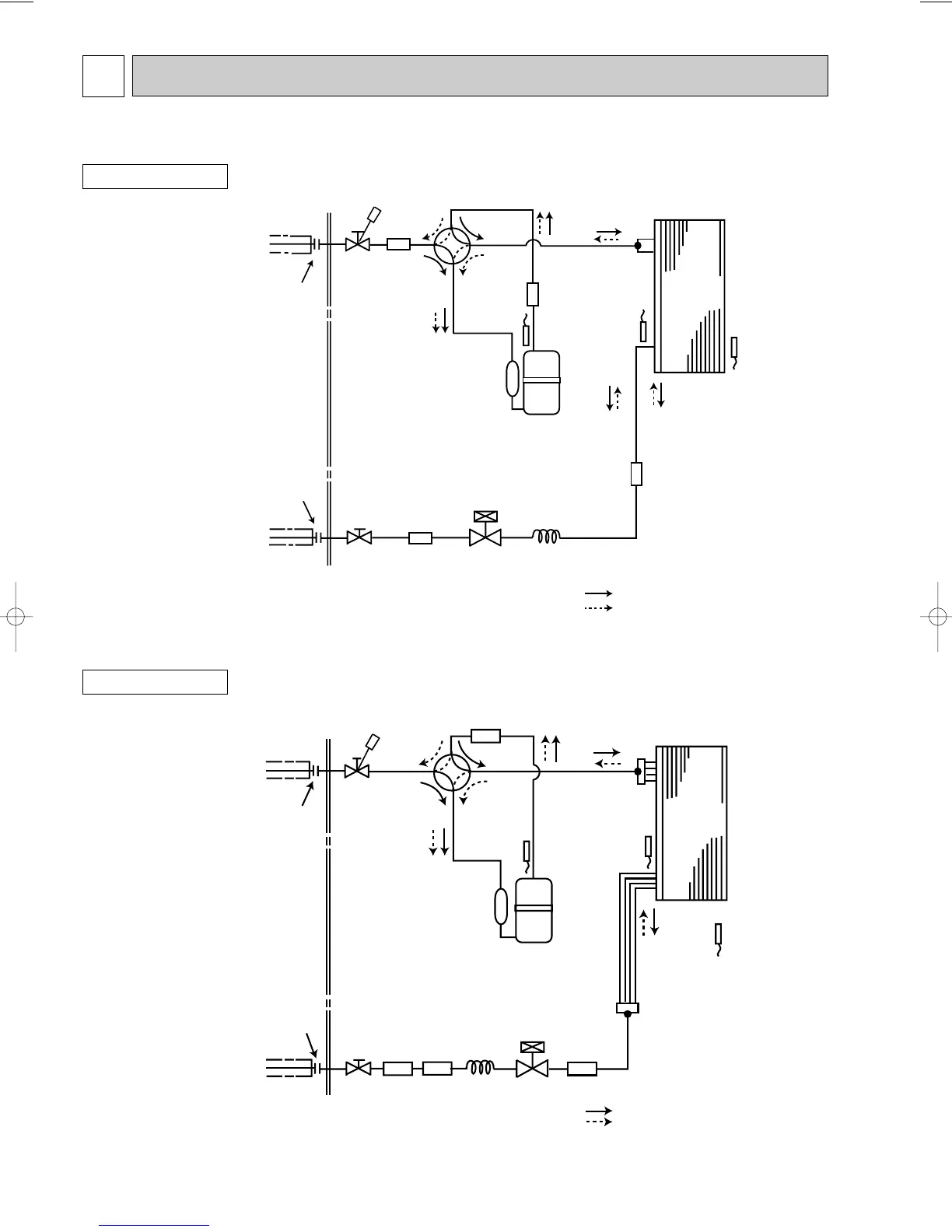

REFRIGERANT SYSTEM DIAGRAM
OUTDOOR UNIT
Unit:mm
Outdoor
heat
exchanger
Flared connection
Defrost
thermistor
RT61
Discharge
temperatuer
thermistor
RT62
Flared connection
Stop valve
(with strainar)
Stop valve
(with service port)
Refrigerant flow in cooling
Compressor
Muffler
4-way valve
Refrigerant flow in heating
Refrigerant pipe [9.52
(with heat insulator)
Refrigerant pipe
[6.35
(with heat insulator)
R.V. coil
heating ON
cooling OFF
Ambient
temperature
thermistor
RT65
Strainer
#100
Capillary tube
[3.0✕[2.0✕200
Expansion
valve
Muffler
Muffler
SUZ-A09VR.TH
SUZ-A12VR.TH
Unit:mm
Outdoor
heat
exchanger
Flared connection
Defrost
thermistor
RT62
Discharge
temperature
thermistor
RT61
Flared connection
Stop valve
Stop valve
(with service port)
Capillary tube
[3.6✕[2.4✕50
Refrigerant flow in cooling
Compressor
4-way valve
Refrigerant flow in heating
Refrigerant pipe [12.7 (SUZ-A18VR.TH)
(with heat insulator) [15.88 (SUZ-A24VR.TH)
Refrigerant pipe [6.35
(with heat insulator)
LEV
R.V. coil
heating ON
cooling OFF
Muffler
#100
Strainer
#100
Receiver
Outdoor heat
exchanger
temperature
thermistor
RT68
Strainer
#100
OUTDOOR UNIT
SUZ-A18VR.TH
SUZ-A24VR.TH
