2.6 Connecting the Motor
The SS/RS motors have two cables. One is the motor power cable, the other one is the encoder
feedback cable. Plug the motor power cable into the motor connector on the drive and plug the
encoder feedback cable into the encoder feedback connector on the drive.
(NOTE: Do not damage or drag the cables on the motor.)
MMAA++
MMBB
--
-
11
MMBB++
2
MMAA
33
4

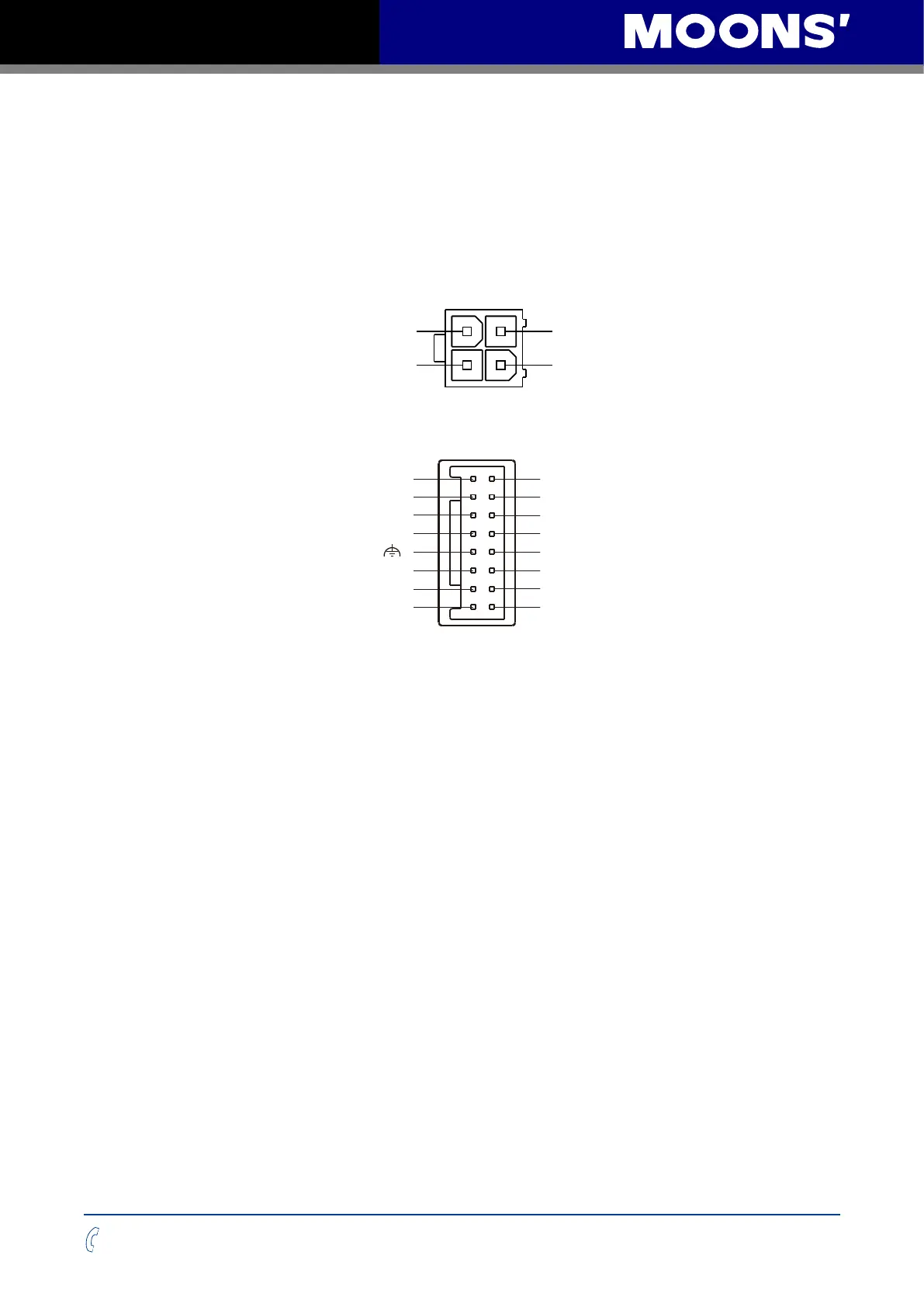

Motor connector on the driver
J3
A-
B-
Z-
GND
U-
V-
W-
A+
B+
Z+
+5V
NC
U+
V+
W+
2
4
6
8
10
12
14
16
1
3
5
7
9
11
13
15
Encoder connector on the driver
Please check the information of mating connectors, extended motor cable and extended encoder
cable in below section ”Optional Accessories (Sold separately)”
